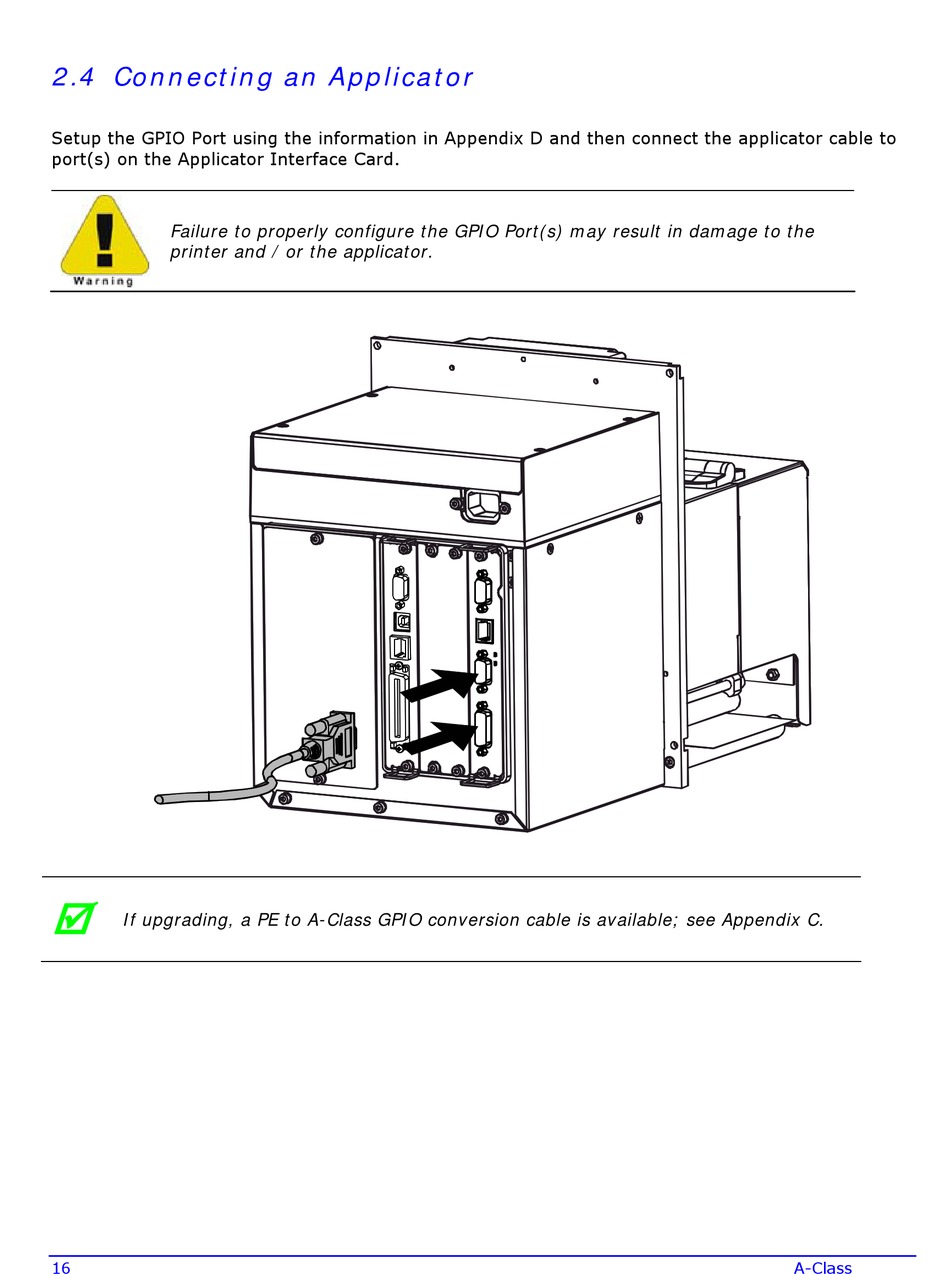

2.4 Connecting an Applicator
Setup the GPIO Port using the information in Appendix D and then connect the applicator cable to
port(s) on the Applicator Interface Card.
Failure to properly configure the GPIO Port(s) may result in damage to the
printer and / or the applicator.
If upgrading, a PE to A-Class GPIO conversion cable is available; see Appendix C.
16
A-Class
