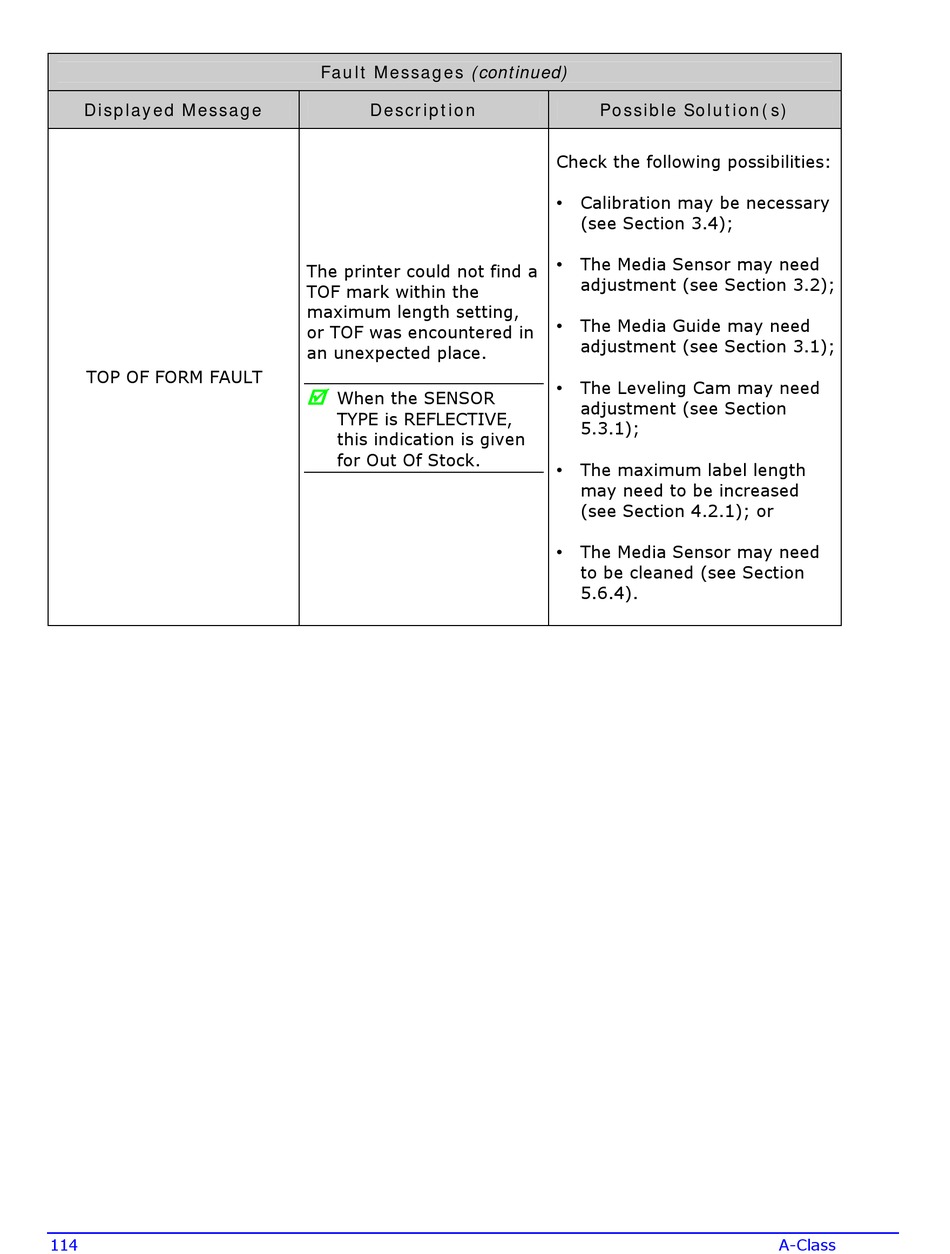

Datamax a-class mark ii Operator's Manual page 124

Displayed Message
TOP OF FORM FAULT
114
Fault Messages (continued)
Description
The printer could not find a
TOF mark within the
maximum length setting,
or TOF was encountered in
an unexpected place.

When the SENSOR
TYPE is REFLECTIVE,
this indication is given
for Out Of Stock.
Possible Solution(s)
Check the following possibilities:
Calibration may be necessary
•
(see Section 3.4);
The Media Sensor may need
•
adjustment (see Section 3.2);
The Media Guide may need
•
adjustment (see Section 3.1);
The Leveling Cam may need
•
adjustment (see Section
5.3.1);
The maximum label length
•
may need to be increased
(see Section 4.2.1); or
The Media Sensor may need
•
to be cleaned (see Section
5.6.4).
A-Class
