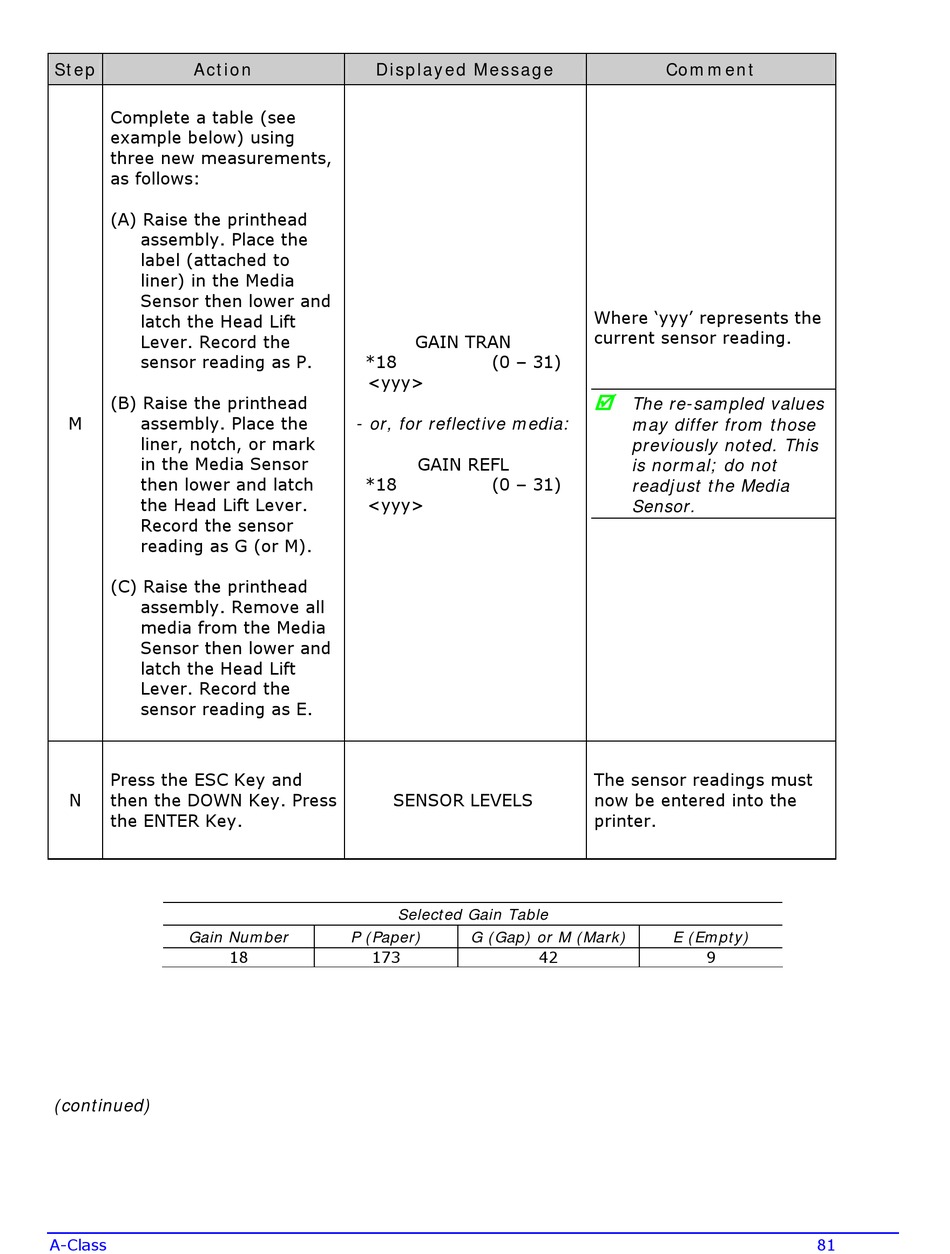

Step Action
Complete a table (see
example below) using
three new measurements,
as follows:
(A) Raise the printhead
assembly. Place the
label (attached to
liner) in the Media
Sensor then lower and
latch the Head Lift
Lever. Record the
sensor reading as P.
(B) Raise the printhead
M assembly. Place the
liner, notch, or mark
in the Media Sensor
then lower and latch
the Head Lift Lever.
Record the sensor
reading as G (or M).
(C) Raise the printhead
assembly. Remove all
media from the Media
Sensor then lower and
latch the Head Lift
Lever. Record the
sensor reading as E.
Press the ESC Key and
N then the DOWN Key. Press
the ENTER Key.
Gain Number
(continued)
A-Class
Displayed Message
*18
<yyy>
- or, for reflective media:
*18
<yyy>
SENSOR LEVELS
Selected Gain Table
P (Paper)
18 173
Where 'yyy' represents the
current sensor reading.
GAIN TRAN
(0 – 31)

GAIN REFL
(0 – 31)
The sensor readings must
now be entered into the
printer.
G (Gap) or M (Mark)
42
Comment
The re-sampled values
may differ from those
previously noted. This
is normal; do not
readjust the Media
Sensor.
E (Empty)
9
81
