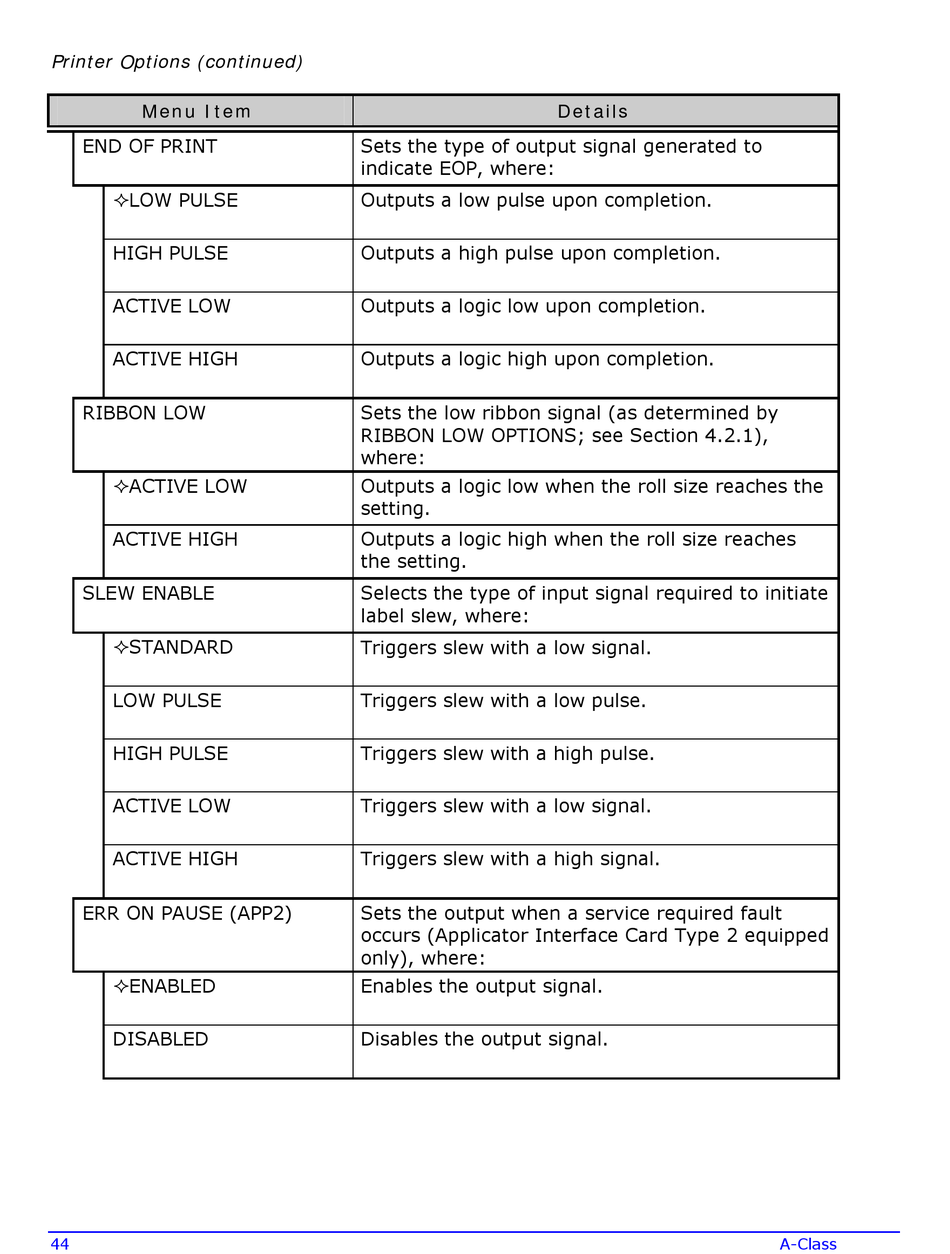

Printer Options (continued)
Menu Item
END OF PRINT
LOW PULSE
HIGH PULSE
ACTIVE LOW
ACTIVE HIGH
RIBBON LOW
ACTIVE LOW
ACTIVE HIGH
SLEW ENABLE
STANDARD
LOW PULSE
HIGH PULSE
ACTIVE LOW
ACTIVE HIGH
ERR ON PAUSE (APP2)
ENABLED
DISABLED
44
Sets the type of output signal generated to
indicate EOP, where:
Outputs a low pulse upon completion.
Outputs a high pulse upon completion.
Outputs a logic low upon completion.
Outputs a logic high upon completion.
Sets the low ribbon signal (as determined by
RIBBON LOW OPTIONS; see Section 4.2.1),
where:
Outputs a logic low when the roll size reaches the
setting.
Outputs a logic high when the roll size reaches
the setting.
Selects the type of input signal required to initiate
label slew, where:
Triggers slew with a low signal.
Triggers slew with a low pulse.
Triggers slew with a high pulse.
Triggers slew with a low signal.
Triggers slew with a high signal.
Sets the output when a service required fault
occurs (Applicator Interface Card Type 2 equipped
only), where:
Enables the output signal.
Disables the output signal.
