3.3 Loading Ribbon

Load ribbon (for thermal transfer media) according to its coated side and the printer model.

Using a ribbon slightly wider than the media (and liner) is recommended for added protection against abrasive wear.

3.3.1 Right Hand Models

Load ribbon as follows:

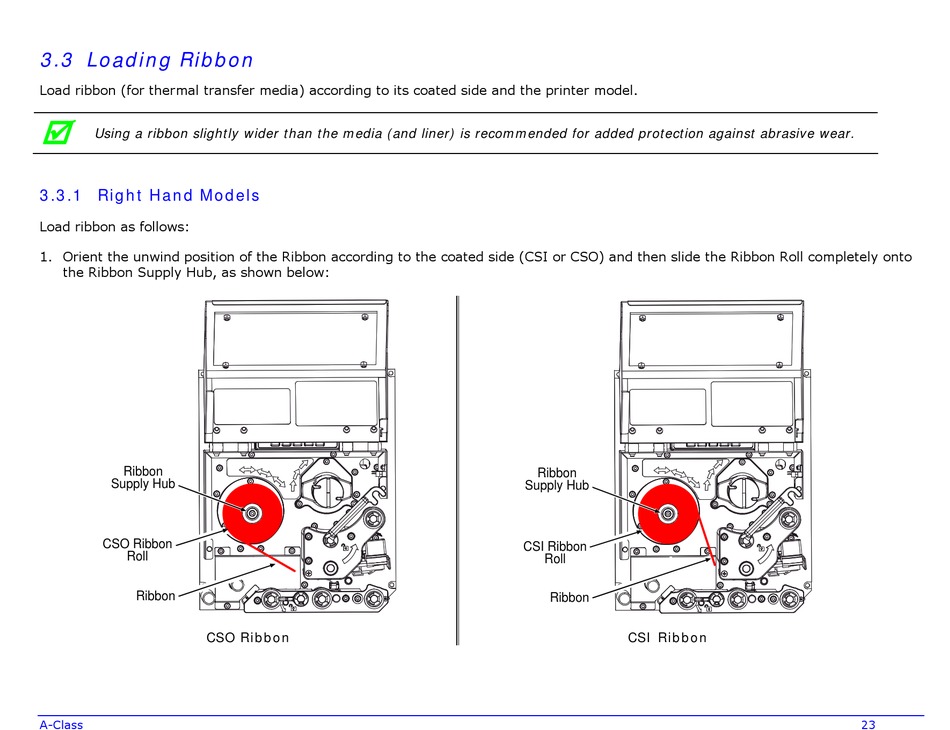

1. Orient the unwind position of the Ribbon according to the coated side (CSI or CSO) and then slide the Ribbon Roll completely onto
the Ribbon Supply Hub, as shown below:
Ribbon
Ribbon
Supply Hub
Supply Hub
CSO Ribbon
CSI Ribbon
Roll
Roll
Ribbon
Ribbon
CSO Ribbon CSI Ribbon
