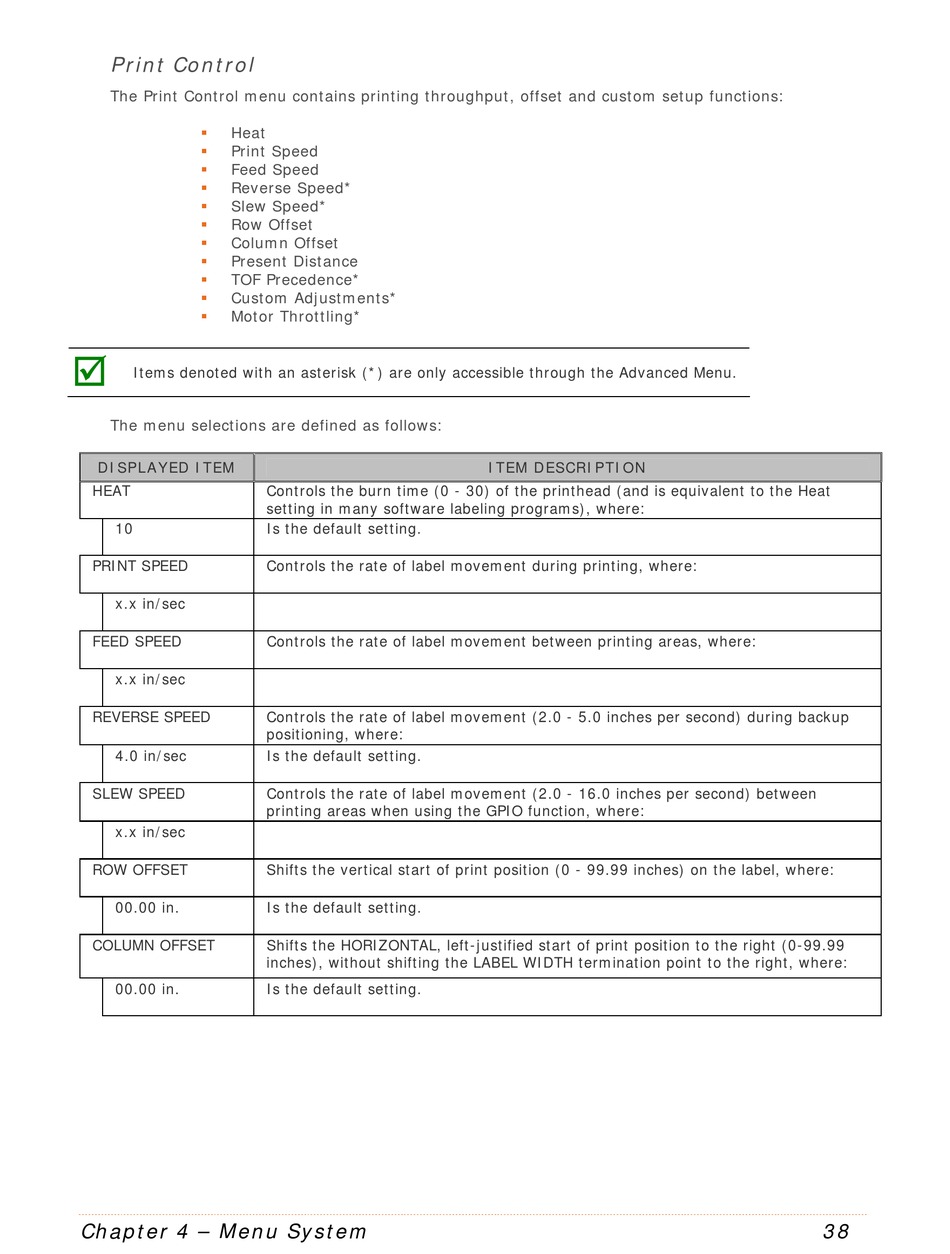

Print Control

The Print Control menu contains printing throughput, offset and custom setup functions:
Heat

Print Speed

Feed Speed

Reverse Speed*

Slew Speed*

Row Offset

Column Offset

Present Distance

TOF Precedence*

Custom Adjustments*

Motor Throttling*


Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
DISPLAYED ITEM
HEAT
10
PRINT SPEED
x.x in/sec
FEED SPEED
x.x in/sec
REVERSE SPEED
4.0 in/sec
SLEW SPEED
x.x in/sec
ROW OFFSET
00.00 in.
COLUMN OFFSET
00.00 in.
Chapter 4 – Menu System
Controls the burn time (0 - 30) of the printhead (and is equivalent to the Heat
setting in many software labeling programs), where:
Is the default setting.
Controls the rate of label movement during printing, where:
Controls the rate of label movement between printing areas, where:
Controls the rate of label movement (2.0 - 5.0 inches per second) during backup
positioning, where:
Is the default setting.
Controls the rate of label movement (2.0 - 16.0 inches per second) between
printing areas when using the GPIO function, where:
Shifts the vertical start of print position (0 - 99.99 inches) on the label, where:
Is the default setting.
Shifts the HORIZONTAL, left-justified start of print position to the right (0-99.99
inches), without shifting the LABEL WIDTH termination point to the right, where:
Is the default setting.
ITEM DESCRIPTION
