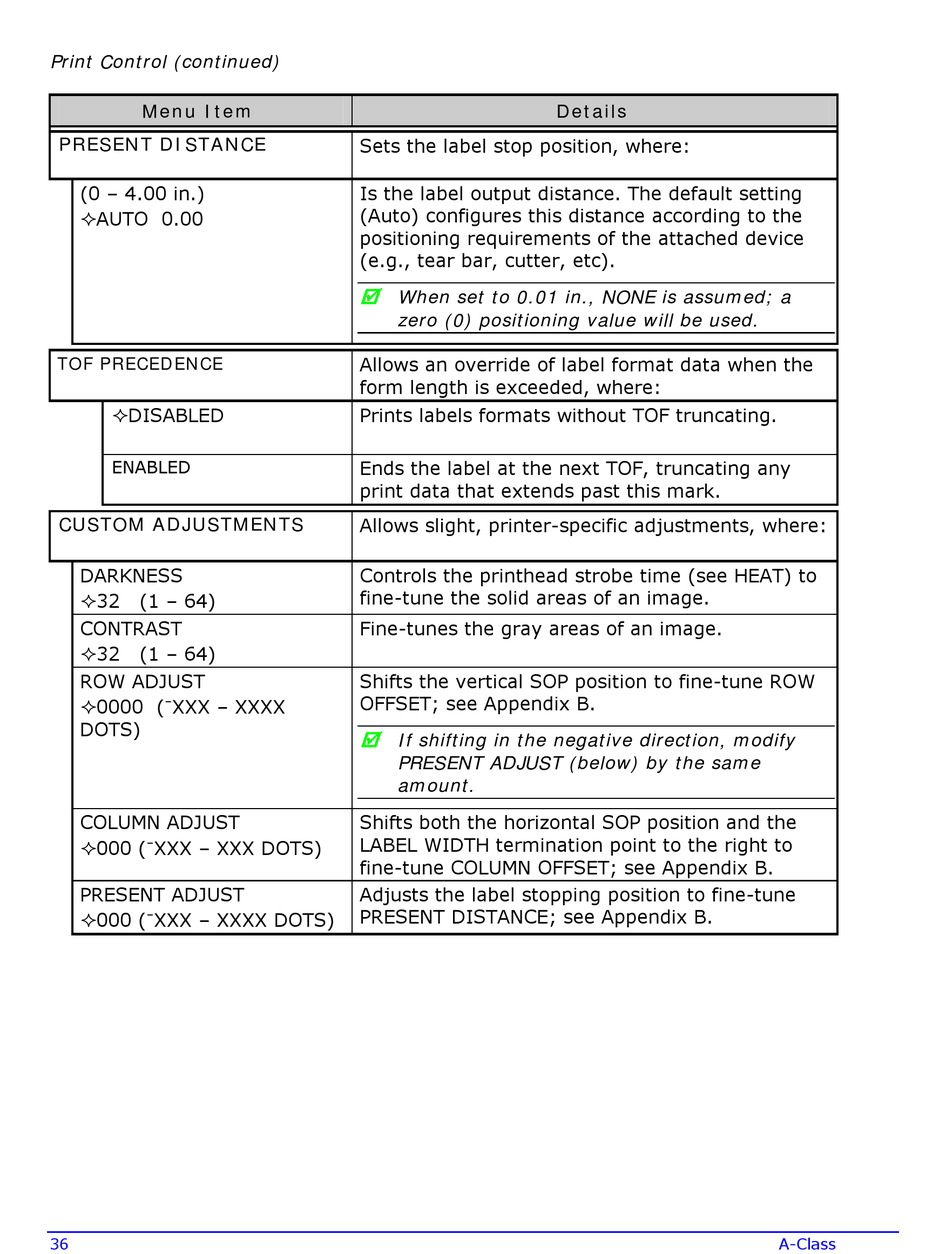

Print Control (continued)
Menu Item
PRESENT DISTANCE
(0 – 4.00 in.)
AUTO 0.00
TOF PRECEDENCE
DISABLED
ENABLED
CUSTOM ADJUSTMENTS
DARKNESS
(1 – 64)
32
CONTRAST
(1 – 64)
32
ROW ADJUST
–
0000 ( XXX – XXXX
DOTS)
COLUMN ADJUST
–
000 ( XXX – XXX DOTS)
PRESENT ADJUST
–
000 ( XXX – XXXX DOTS)
36
Sets the label stop position, where:
Is the label output distance. The default setting
(Auto) configures this distance according to the
positioning requirements of the attached device
(e.g., tear bar, cutter, etc).
 When set to 0.01 in., NONE is assumed; a
zero (0) positioning value will be used.
Allows an override of label format data when the
form length is exceeded, where:
Prints labels formats without TOF truncating.
Ends the label at the next TOF, truncating any
print data that extends past this mark.
Allows slight, printer-specific adjustments, where:
Controls the printhead strobe time (see HEAT) to
fine-tune the solid areas of an image.
Fine-tunes the gray areas of an image.
Shifts the vertical SOP position to fine-tune ROW
OFFSET; see Appendix B.

If shifting in the negative direction, modify
PRESENT ADJUST (below) by the same
amount.
Shifts both the horizontal SOP position and the
LABEL WIDTH termination point to the right to
fine-tune COLUMN OFFSET; see Appendix B.
Adjusts the label stopping position to fine-tune
PRESENT DISTANCE; see Appendix B.
Details
A-Class
