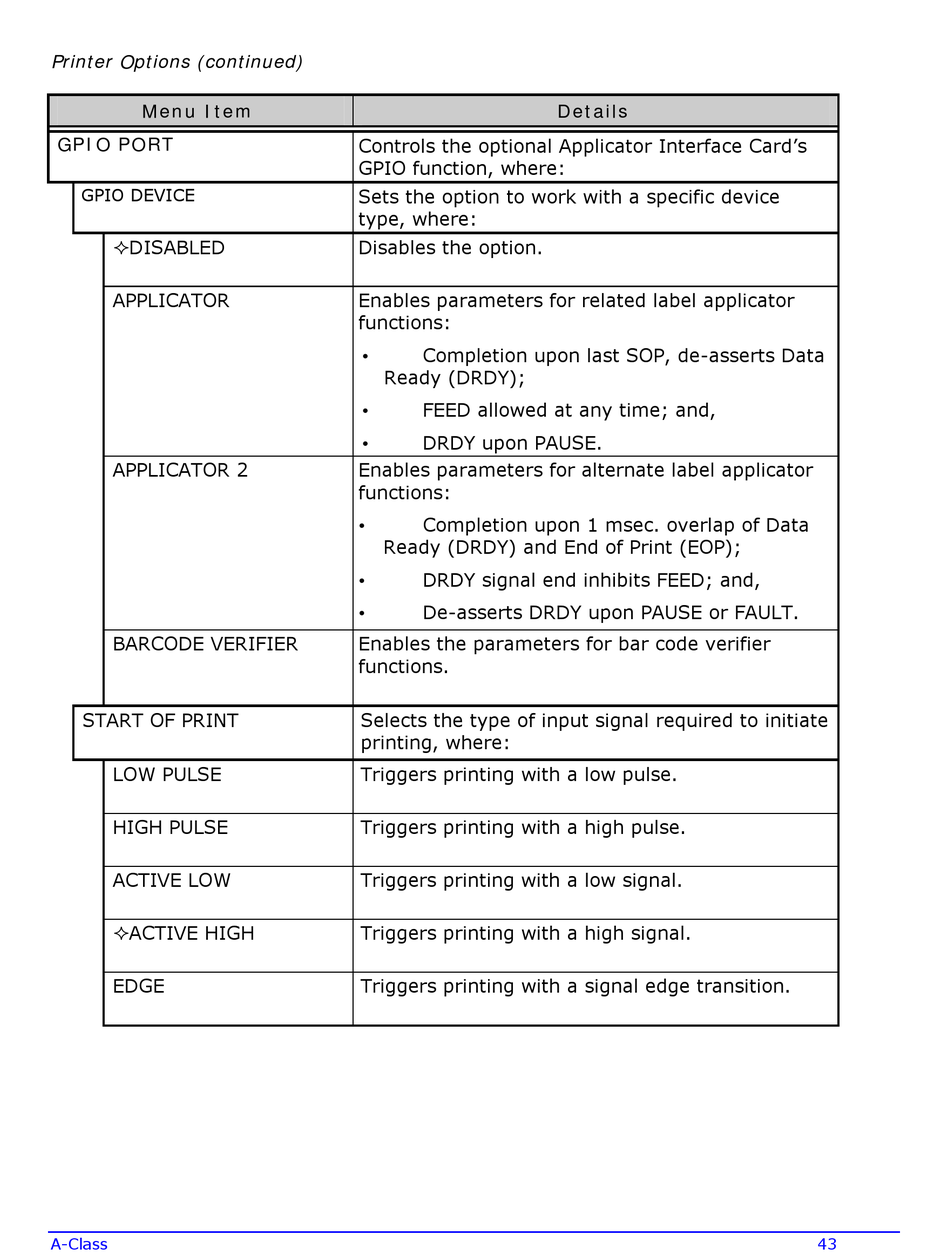

Printer Options (continued)
Menu Item
GPIO PORT
GPIO DEVICE
DISABLED
APPLICATOR
APPLICATOR 2
BARCODE VERIFIER
START OF PRINT
LOW PULSE
HIGH PULSE
ACTIVE LOW
ACTIVE HIGH
EDGE
A-Class
Controls the optional Applicator Interface Card's
GPIO function, where:
Sets the option to work with a specific device
type, where:
Disables the option.
Enables parameters for related label applicator
functions:
Completion upon last SOP, de-asserts Data
•
Ready (DRDY);
FEED allowed at any time; and,
•
DRDY upon PAUSE.
•
Enables parameters for alternate label applicator
functions:
Completion upon 1 msec. overlap of Data
•
Ready (DRDY) and End of Print (EOP);
DRDY signal end inhibits FEED; and,
•
De-asserts DRDY upon PAUSE or FAULT.
•
Enables the parameters for bar code verifier
functions.
Selects the type of input signal required to initiate
printing, where:
Triggers printing with a low pulse.
Triggers printing with a high pulse.
Triggers printing with a low signal.
Triggers printing with a high signal.
Triggers printing with a signal edge transition.
