Datamax a-class mark ii Operator's Manual page 43

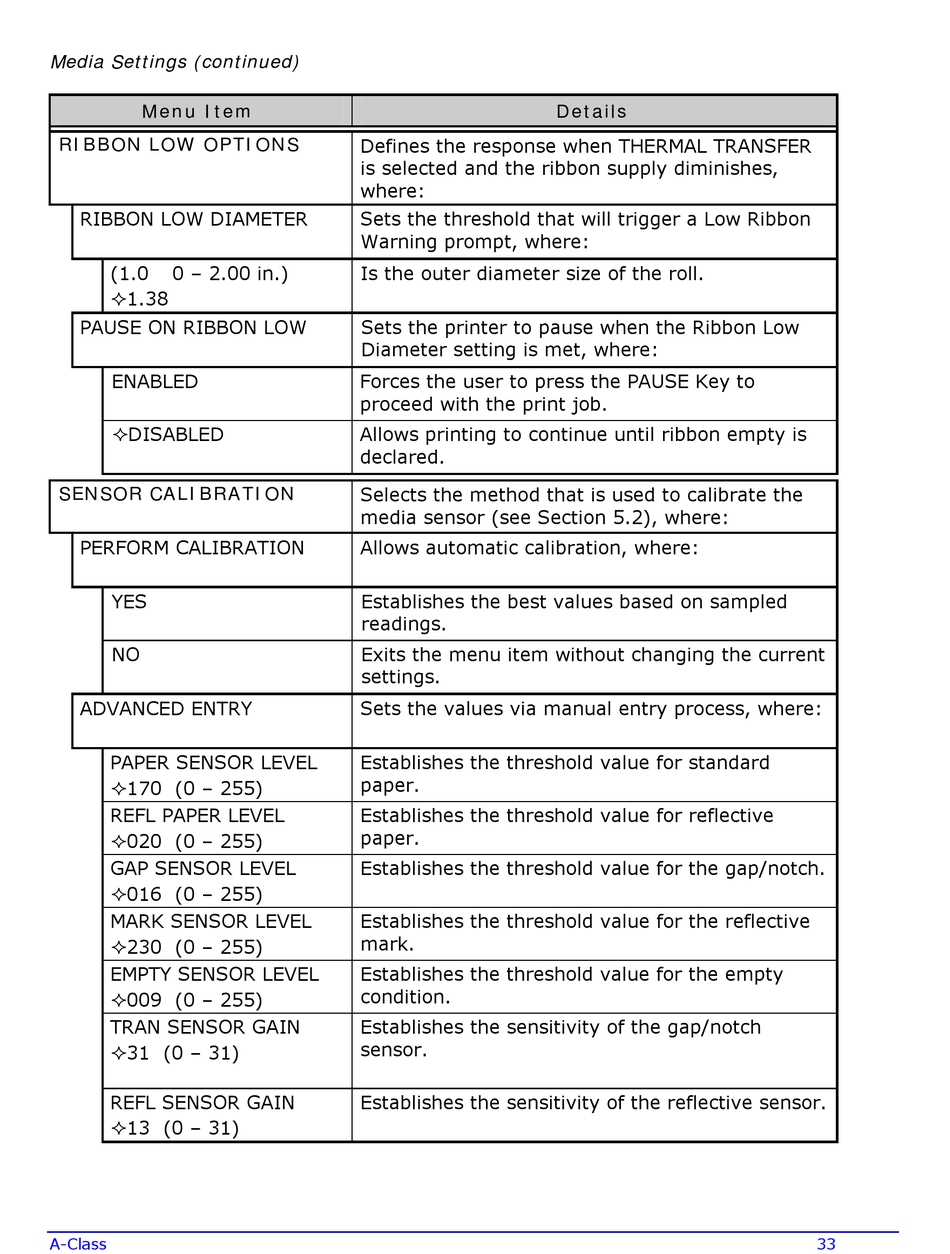

Media Settings (continued)
Menu Item
RIBBON LOW OPTIONS
RIBBON LOW DIAMETER
(1.0 0 – 2.00 in.)
1.38
PAUSE ON RIBBON LOW
ENABLED
DISABLED
SENSOR CALIBRATION
PERFORM CALIBRATION
YES
NO
ADVANCED ENTRY
PAPER SENSOR LEVEL
170 (0 – 255)
REFL PAPER LEVEL
020 (0 – 255)
GAP SENSOR LEVEL
016 (0 – 255)
MARK SENSOR LEVEL
230 (0 – 255)
EMPTY SENSOR LEVEL
009 (0 – 255)
TRAN SENSOR GAIN
31 (0 – 31)
REFL SENSOR GAIN
13 (0 – 31)
A-Class
Defines the response when THERMAL TRANSFER
is selected and the ribbon supply diminishes,
where:
Sets the threshold that will trigger a Low Ribbon
Warning prompt, where:
Is the outer diameter size of the roll.
Sets the printer to pause when the Ribbon Low
Diameter setting is met, where:
Forces the user to press the PAUSE Key to
proceed with the print job.
Allows printing to continue until ribbon empty is
declared.
Selects the method that is used to calibrate the
media sensor (see Section 5.2), where:
Allows automatic calibration, where:
Establishes the best values based on sampled
readings.
Exits the menu item without changing the current
settings.
Sets the values via manual entry process, where:
Establishes the threshold value for standard
paper.
Establishes the threshold value for reflective
paper.
Establishes the threshold value for the gap/notch.
Establishes the threshold value for the reflective
mark.
Establishes the threshold value for the empty
condition.
Establishes the sensitivity of the gap/notch
sensor.
Establishes the sensitivity of the reflective sensor.
Details
33
