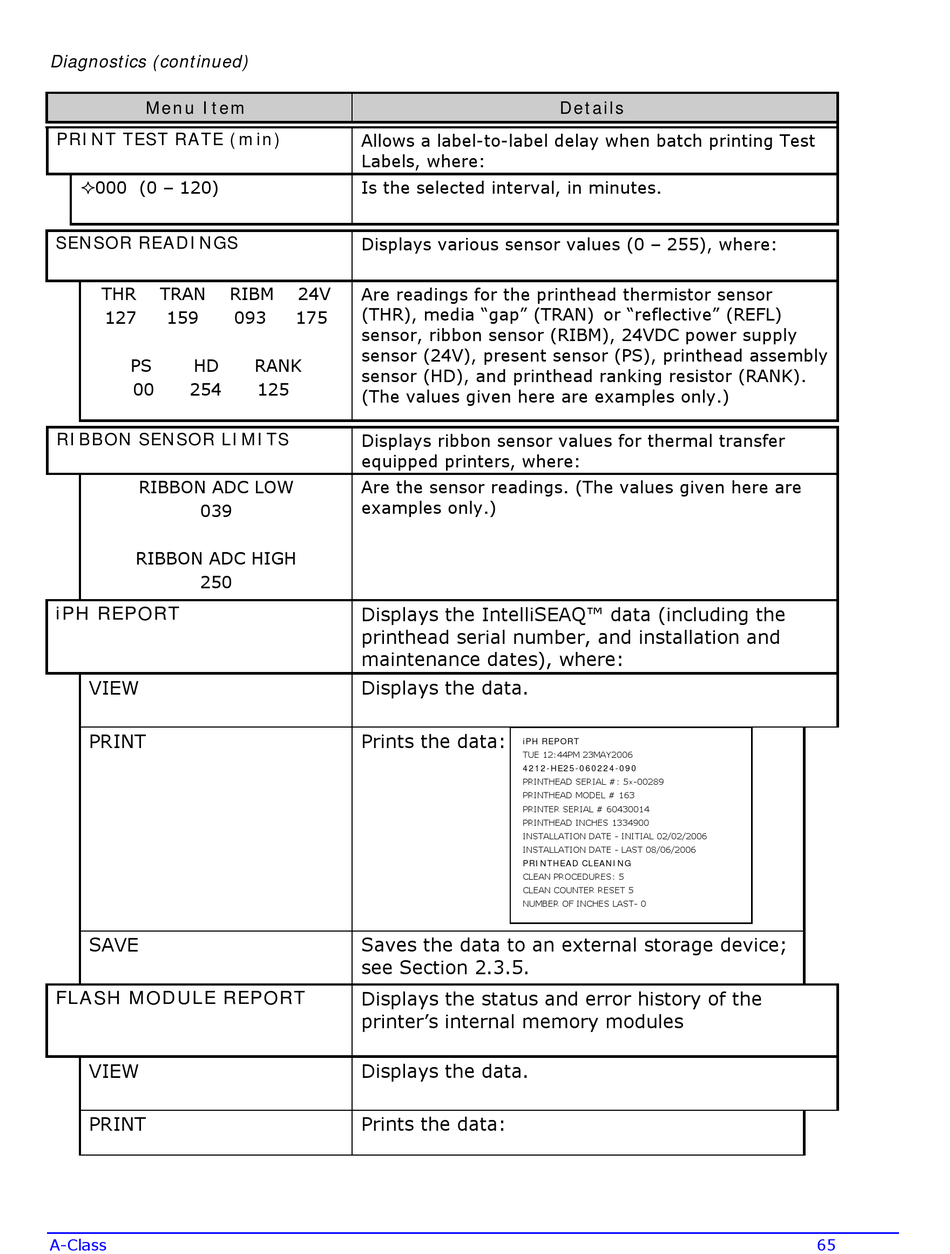

Diagnostics (continued)
Menu Item
PRINT TEST RATE (min)
000 (0 – 120)
SENSOR READINGS
THR TRAN
127 159
PS HD
00 254
RIBBON SENSOR LIMITS
RIBBON ADC LOW
039
RIBBON ADC HIGH
250
iPH REPORT
VIEW
PRINT
SAVE
FLASH MODULE REPORT
VIEW
PRINT
A-Class
Allows a label-to-label delay when batch printing Test
Labels, where:
Is the selected interval, in minutes.
Displays various sensor values (0 – 255), where:
RIBM 24V Are readings for the printhead thermistor sensor
(THR), media "gap" (TRAN) or "reflective" (REFL)
093 175
sensor, ribbon sensor (RIBM), 24VDC power supply
sensor (24V), present sensor (PS), printhead assembly
RANK
sensor (HD), and printhead ranking resistor (RANK).
125
(The values given here are examples only.)
Displays ribbon sensor values for thermal transfer
equipped printers, where:
Are the sensor readings. (The values given here are
examples only.)
Displays the IntelliSEAQ™ data (including the
printhead serial number, and installation and
maintenance dates), where:
Displays the data.
Prints the data:
Saves the data to an external storage device;
see Section 2.3.5.
Displays the status and error history of the
printer's internal memory modules
Displays the data.
Prints the data:
Details
iPH REPORT
TUE 12:44PM 23MAY2006
4212-HE25-060224-090
PRINTHEAD SERIAL #: 5x-00289
PRINTHEAD MODEL # 163
PRINTER SERIAL # 60430014
PRINTHEAD INCHES 1334900
INSTALLATION DATE - INITIAL 02/02/2006
INSTALLATION DATE - LAST 08/06/2006
PRINTHEAD CLEANING
CLEAN PROCEDURES: 5
CLEAN COUNTER RESET 5
NUMBER OF INCHES LAST- 0
