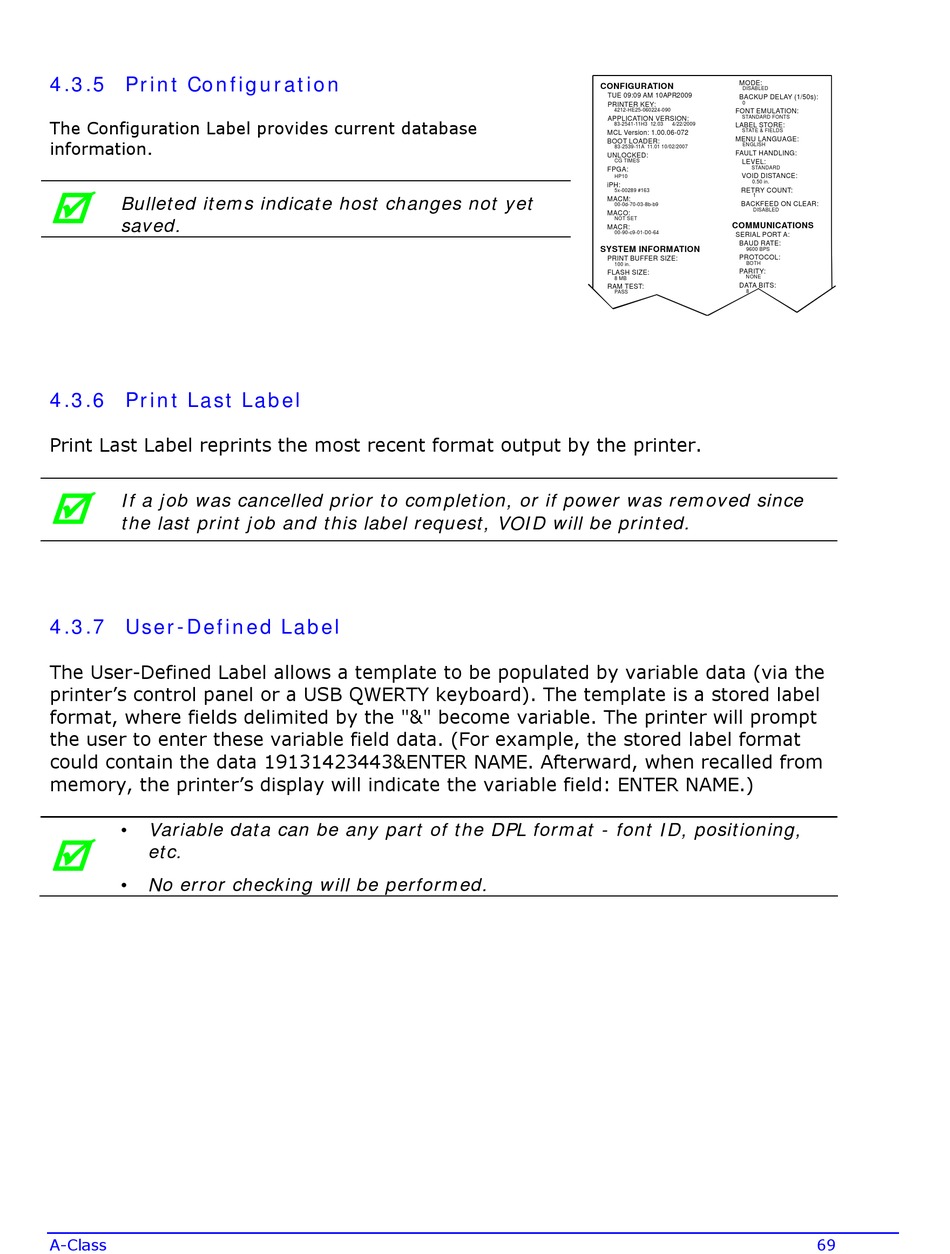

4.3.5 Print Configuration

The Configuration Label provides current database
information.

Bulleted items indicate host changes not yet
saved.

4.3.6 Print Last Label

Print Last Label reprints the most recent format output by the printer.

If a job was cancelled prior to completion, or if power was removed since
the last print job and this label request, VOID will be printed.

4.3.7 User-Defined Label

The User-Defined Label allows a template to be populated by variable data (via the
printer's control panel or a USB QWERTY keyboard). The template is a stored label
format, where fields delimited by the "&" become variable. The printer will prompt
the user to enter these variable field data. (For example, the stored label format
could contain the data 19131423443&ENTER NAME. Afterward, when recalled from
memory, the printer's display will indicate the variable field: ENTER NAME.)
Variable data can be any part of the DPL format - font ID, positioning,
•

etc.
No error checking will be performed.
•
A-Class
MODE:
CONFIGURATION
DISABLED
TUE 09:09 AM 10APR2009
BACKUP DELAY (1/50s):
0
PRINTER KEY:
4212-HE25-060224-090 FONT EMULATION:
STANDARD FONTS
APPLICATION VERSION:
83-2541-11H3 12.03 4/22/2009 LABEL STORE:
STATE & FIELDS
MCL Version: 1.00.06-072
MENU LANGUAGE:
BOOT LOADER:
ENGLISH
83-2539-11A 11.01 10/02/2007
FAULT HANDLING:
UNLOCKED:
CG TIMES LEVEL:
STANDARD
FPGA:
VOID DISTANCE:
HP10
0.50 in.
iPH:
RETRY COUNT:
5x-00289 #163
1
MACM:
BACKFEED ON CLEAR:
00-0d-70-03-8b-b9
DISABLED
MACO:
NOT SET
COMMUNICATIONS
MACR:
00-90-c9-01-D0-64
SERIAL PORT A:
BAUD RATE:
SYSTEM INFORMATION
9600 BPS
PROTOCOL:
PRINT BUFFER SIZE:
BOTH
100 in.
PARITY:
FLASH SIZE:
NONE
8 MB
DATA BITS:
RAM TEST:
8
PASS
