Using the Control Panel

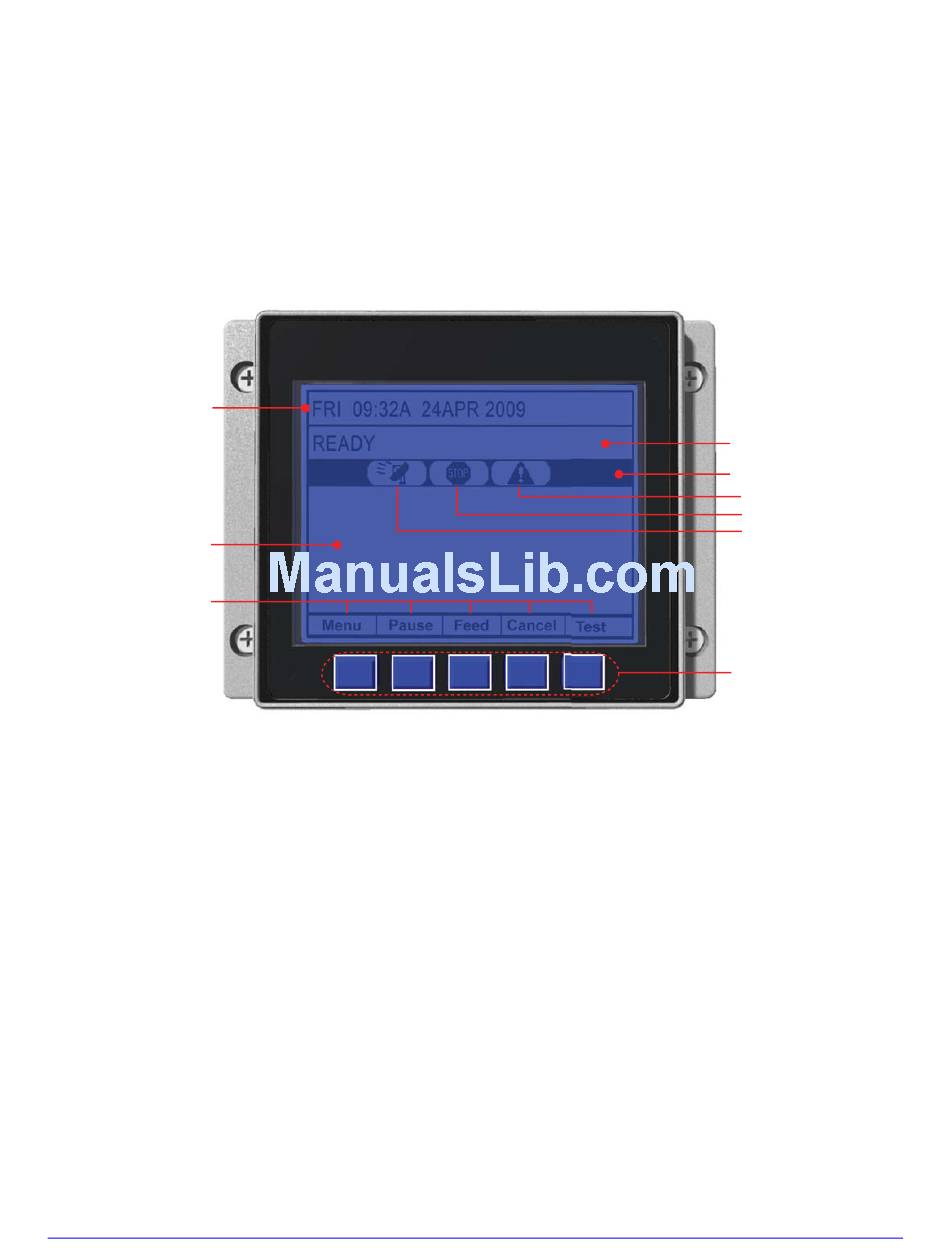

4.1 Layout

The Control Panel is an event-driven user interface composed of a graphics display and Soft Keys.
Time and Date
Main Display Area
Soft Key Labels

4.1.1 The Display

The display provides printer information:
Current time and date;
•
Soft Key Labels to denote Soft Key functions;
•
Label counts during batch jobs;
•
When in Menu Mode, the System Menu;
•
When in Test Mode, the Test Menu;
•
Various messages; and,
•
Real-time status notifications (see below).
•
28
Printer Status Line
Current State Icons
Fault/Error
Stop/Paused
Receiving Data
Soft Keys
A-Class
