TRIUMPH-1 Receiver
The On/Off (power) button turns the receiver on and off.
The FN (function) button switches the receiver between post-processing modes, starts/stops data
recording, and changes the baud rate of the serial port to 9600. Holding FN down while pushing
ON/OFF button between 4 to 8 seconds (during this period four LEDs blink yellow) will clear the
NV RAM. Holding FN down while pushing ON/OFF button for more than 30 seconds resets the
receiver.

SIM Card Slot

The SIM card slot allows a standard SIM card to be installed in the receiver. Once installed, the
SIM card provides a unique identification for the receiver's GSM module and enables the
receiver's GSM functionality based on the subscribed services (the receiver board accesses the
GSM module which accesses the SIM card). The SIM card usually remains inside the receiver.
The GSM module with the SIM card installed can be accessed via ModemVU for configuration
purposes. A SIM card can be purchased from your local cellular provider.

Data and Power Ports

The TRIUMPH-1 receiver has the following ports (Figure 1-3):
• Power – rimmed in red; used to connect the receiver to an external power source. This port
can also be used to charge the batteries. The body of the connector on the corresponding
cable is red.
• Serial – rimmed in green; used for communication between the receiver and an external
device. The body of the connector on the corresponding cable is green.
• Ethernet - rimmed in gray; used to connect the receiver to local network. The body of the
connector on the corresponding cable is gray.
• USB – rimmed in black; used for high-speed data transfer and communication between
the receiver and an external device. The body of the connector on the corresponding cable
is black.
22

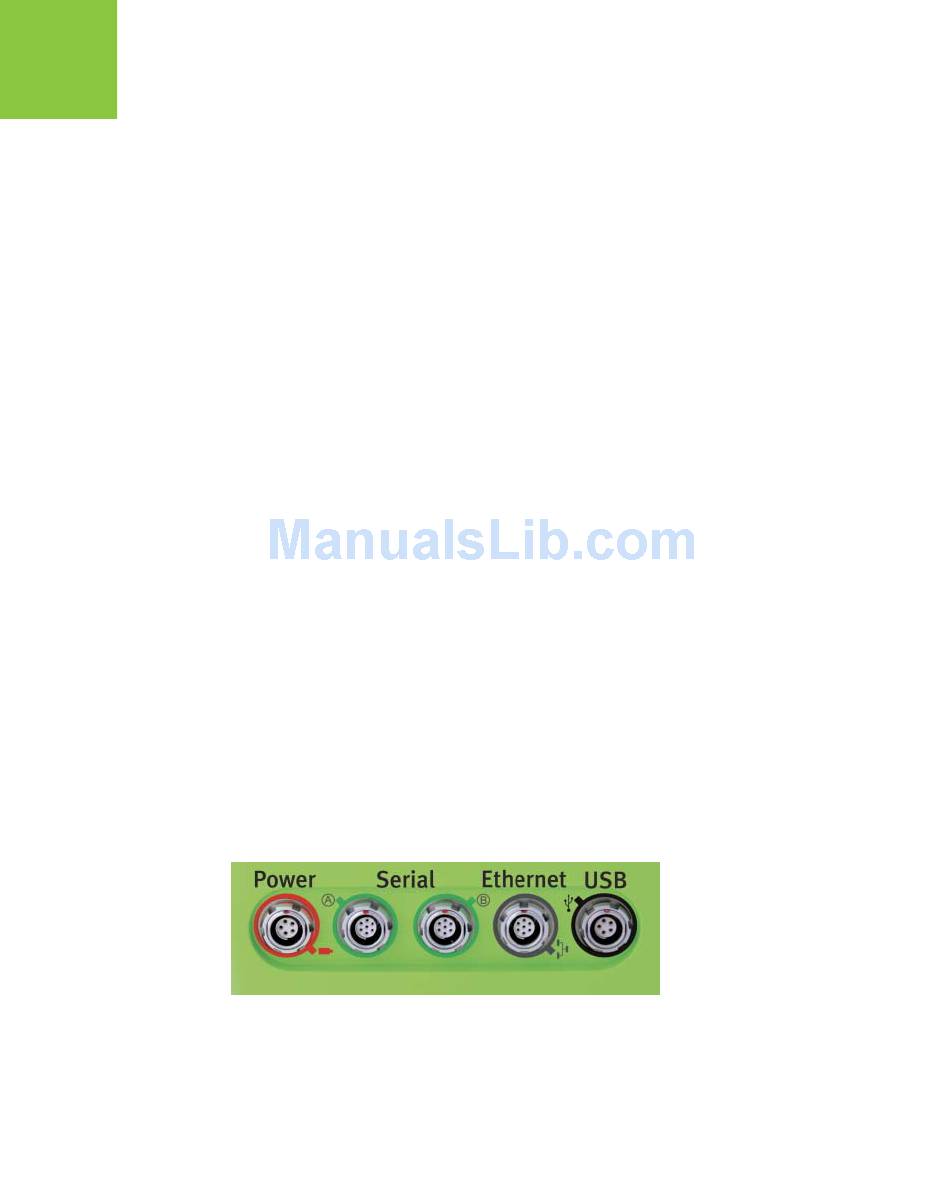

Figure 1-3. TRIUMPH-1 Ports
