HPT435 as a Base Configuration

1. Connect the TRIUMPH-1 receiver to computer. See for details "Connecting the Receiver
and a Computer" on page 37.
2. Connect the external HPT435 UHF radio to receiver's port B with cable Accessory Data-
Ser cable, ODU-7/D15 (1.8 m) p/n 14-578108-01.
Note:
The port B is optional. Make sure you have such option purchased. See "Managing Receiver
Options" on page 84 for details.
3. Power the HPT435. You can use the rechargeable battery type Power Sonic PS-12400 or
similar and Accessory Power Cable, PL-700/Battery Clips (2.5m), p/n14-578111-01.

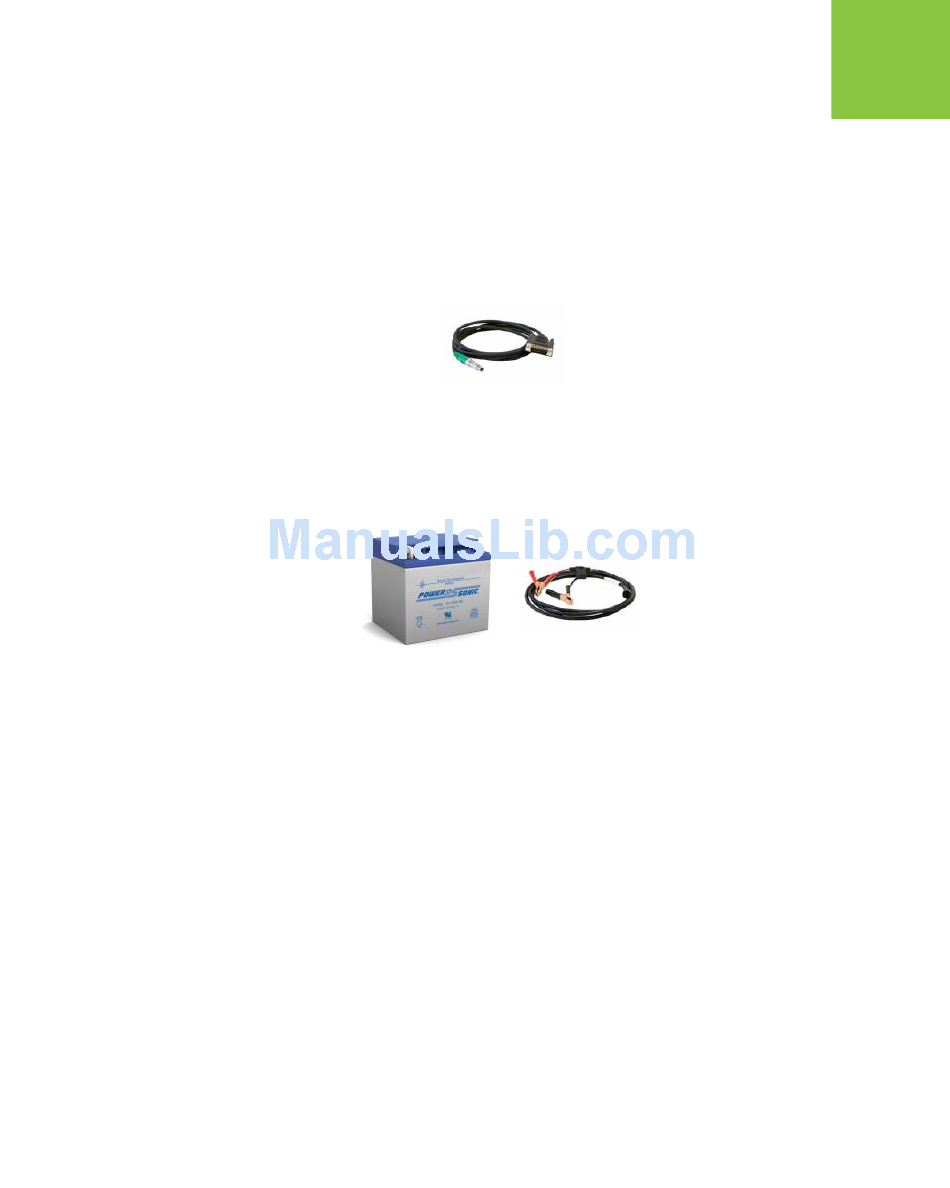

Figure 6-18. Battery Power Sonic PS-12400 and Power cable, PL-700/Battery clips
Warning: Powering HPT435 please observe polarity!
For PS-12400 battery charging use the charger "Power-Sonic Chargers" type PSC-124000A.
4. Turn on the TRIUMPH-1 receiver.
5. Start ModemVU.
www.javad.com
Figure 6-17. Accessory Data-Ser cable, ODU-7/D15
Configuration Examples
HPT435 as a Base Configuration
Rover Configuration
