5. Select the Charger Mode drop-down list to set the desired charger mode (Figure 2-10 on
page 2-12). Current Mode displays the charging battery: a, b, ab, or none (off) (Figure 2-
7).
• Auto – receiver will automatically detect and charge both batteries.
• Charge A – receiver will charge only battery A.
• Charge B – receiver will charge only battery B.
• Off – receiver will not charge batteries.
6. Select the Ports drop-down list to set power output on the serial ports.
• On – the power board delivers voltage on pin one of all serial port connectors when the
receiver is turned on. If the receiver is turned off, there will not be any power on the ports.
• Off – the power is absent, even if the receiver is on.
• Always – the power board delivers voltage on pin one of all serial port connectors, even if
the receiver is off.
7. Select the Slots drop-down list to set power output on internal slots.
• On – all slots have power if the receiver is turned on.
• Off – internal slots do not have power, even if the receiver is turned on.
• Always – internal slots have power, even if the receiver is turned off.
8. View the Voltages information (Figure 2-8).
• External – displays the external power supply's voltage.
• On Board – displays the voltage drawn by the receiver board.
• Battery A – displays the voltage of battery A.
• Battery B – displays the voltage of battery B.
www.javad.com

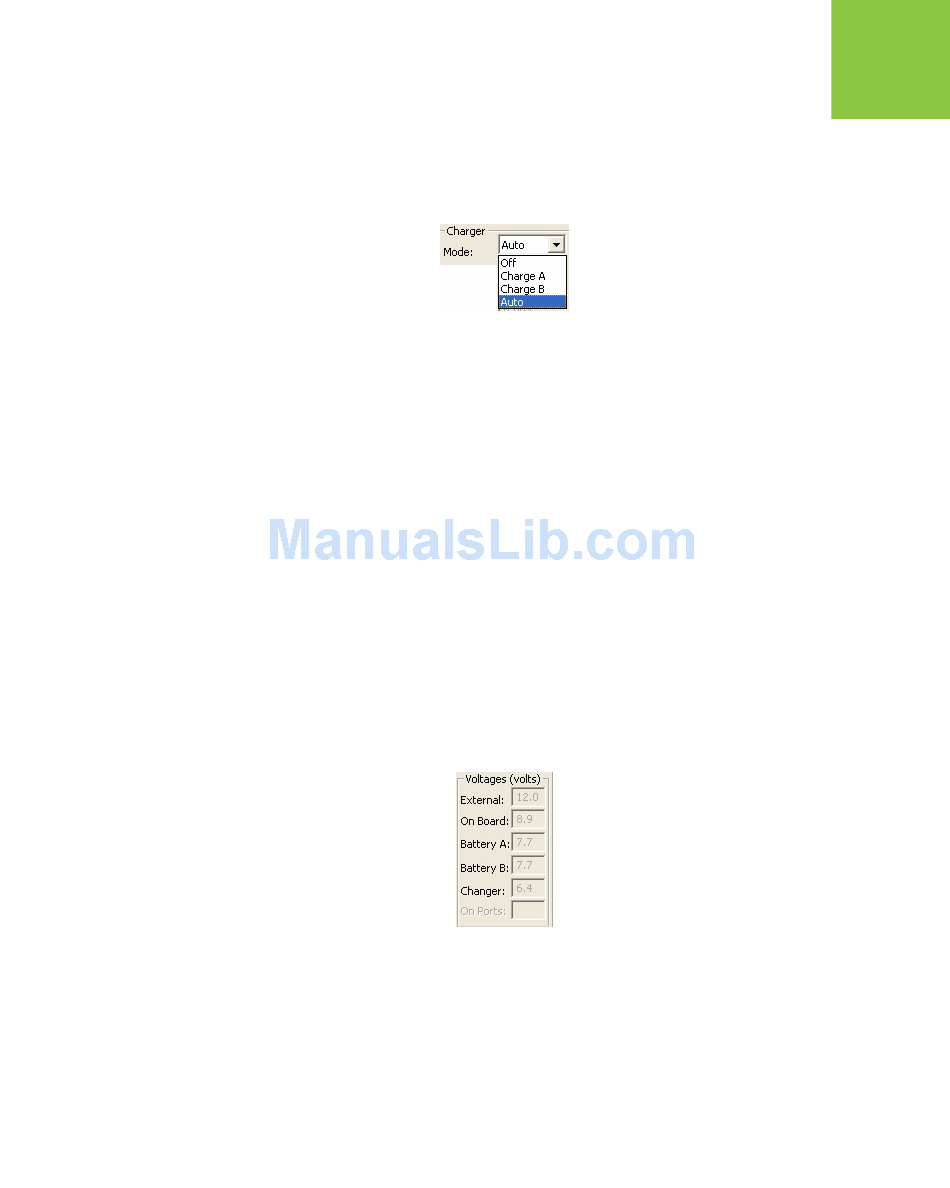

Figure 2-7. Select Charger mode
