External Antenna Connector

The external antenna connects to the TNC external antenna connector (optional).

Pole/Adapter Connector

The bottom connector connects the receiver to either a standard 5/8-11'' mounting thread pole/
adapter or the quick disconnects.

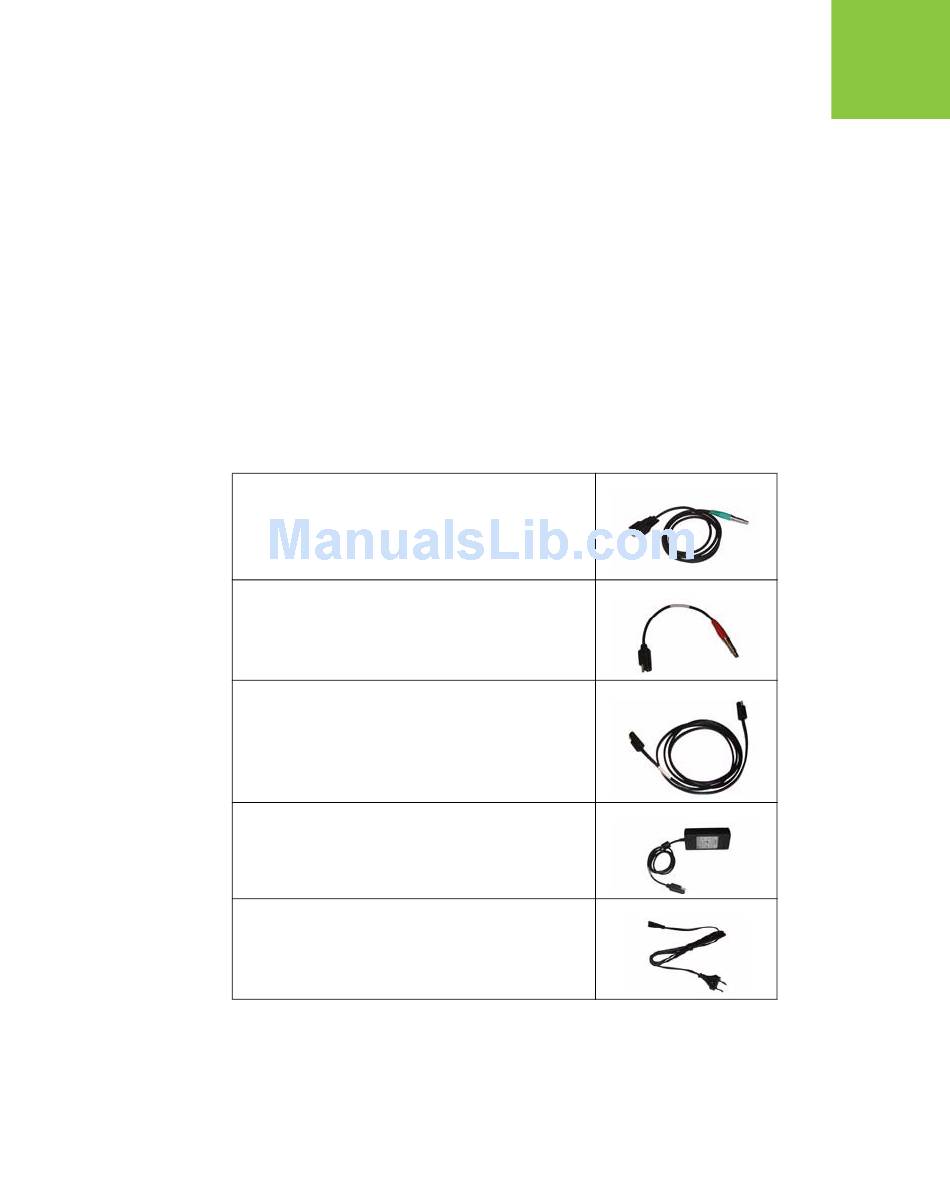

1.2.2. Cables

The TRIUMPH-1 receiver package includes standard communication and power cables for
configuring the receiver and providing a power source to the receiver.
Receiver-to-computer RS232 serial cable – connects
the receiver's serial port and an external device
(hand-held controller or computer)
p/n 14-578103-01
Receiver-to-SAE power cable – connects the
receiver's power port and the power supply's SAE
connector or the extension cable's SAE connector
p/n 14-578101-01
SAE-to-SAE cable extension – connects SAE
connectors over longer distances
p/n 14-578102-01
Power supply with SAE connector
p/n 22-570101-01
Cable Power/Charger Euro p/n14-508053-01
