8. In the Radio Link tab set the following parameters, and click Apply (Figure 6-4):
• Protocol: Simplex Transmitter
• Frequency (MHz): 406 to 470
• Output power (dBm/W): 45/35.00
• Modulation Type: DQPSK
• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Corrections: ON
• Scrambling: ON
9. Quit ModemVU by clicking Exit button.
www.javad.com

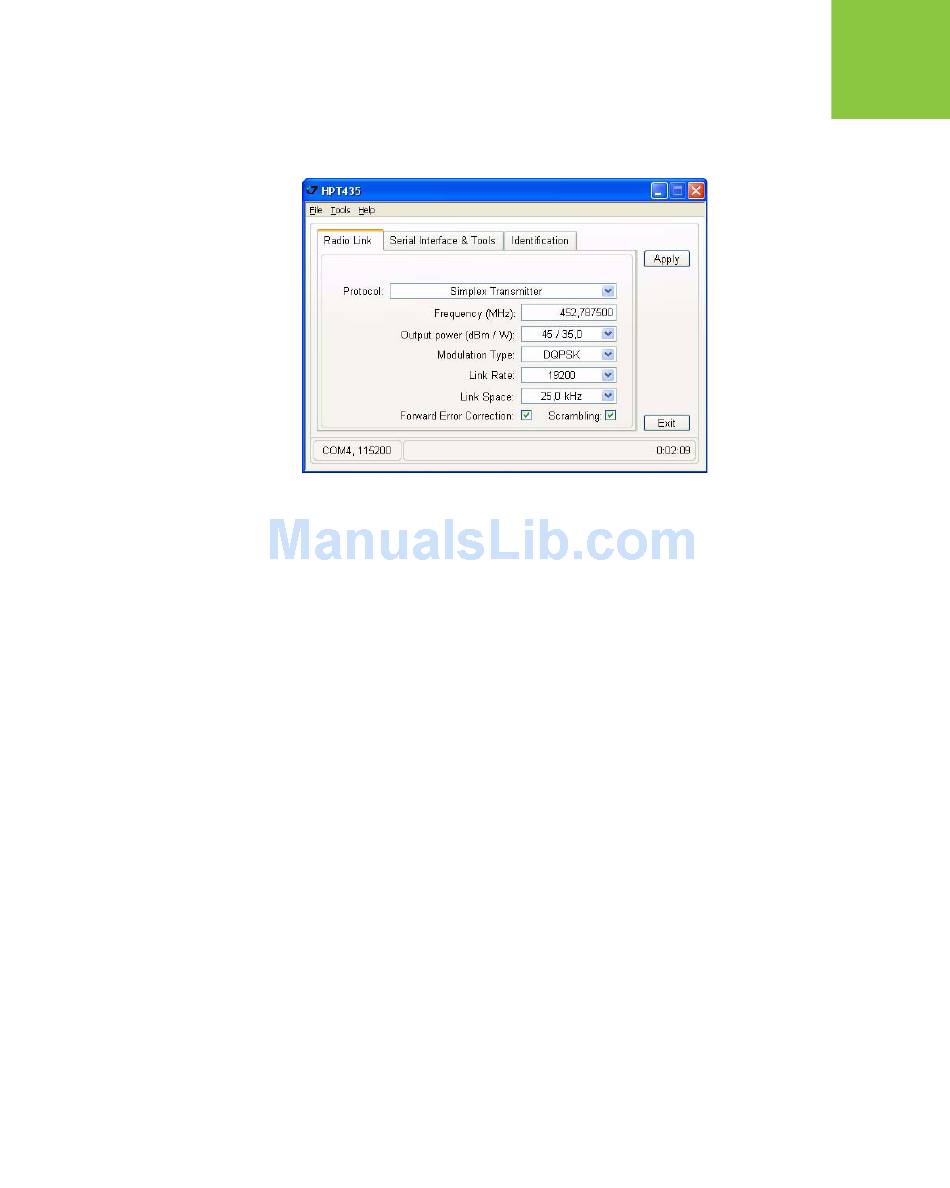

Figure 6-21. Radio Link tab settings
Configuration Examples
HPT435 as a Base Configuration
Rover Configuration
