Javad TRIUMPH-1 Operator's Manual page 114

Configuration Examples
Satel Protocol Configuration Example
Rover Configuration
8. Start TriVU. Select port the receiver is connected to and click OK (Figure 6-56).
9. Click Configuration Receiver.
10. In the Positioning tab set RTK fixed Positioning Mode, then click Apply (Figure 6-13).
114

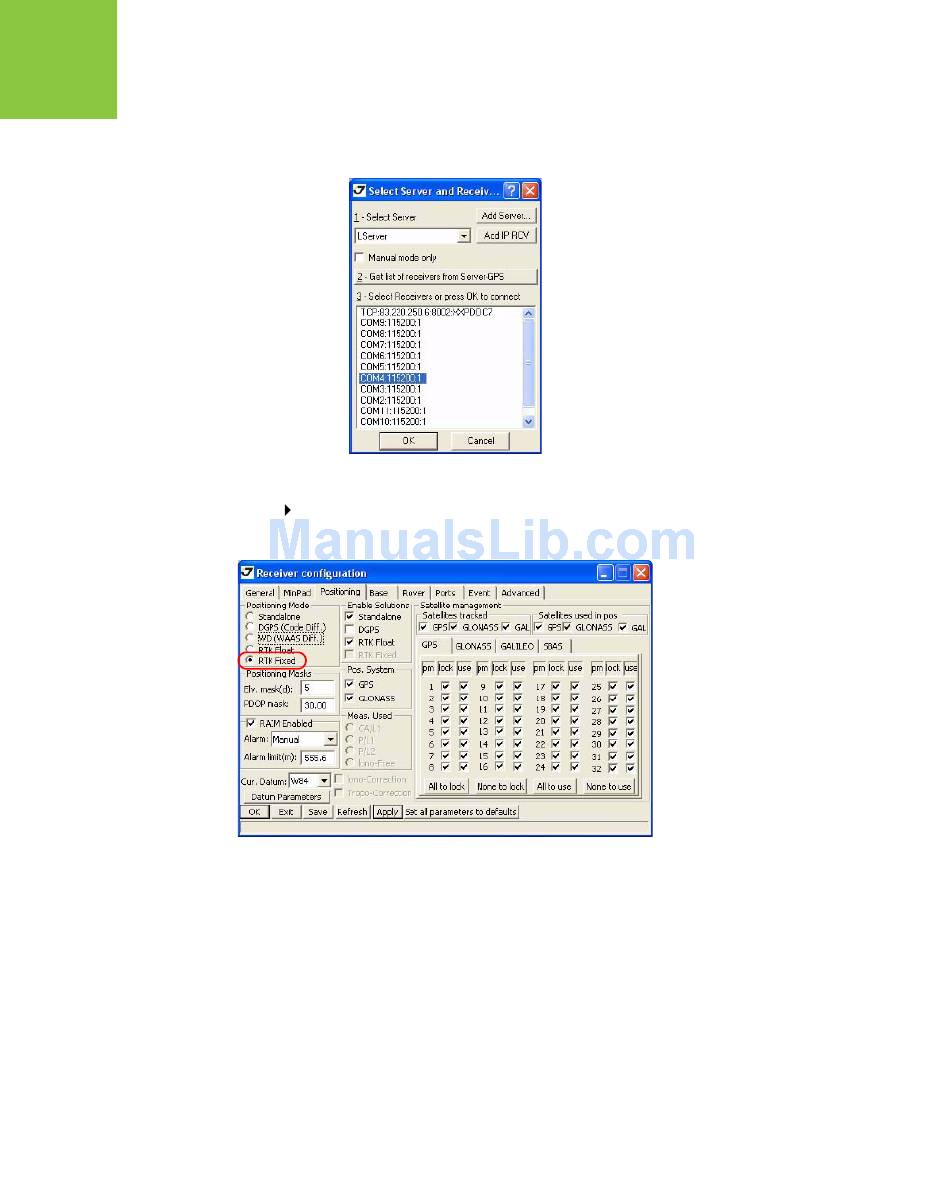

Figure 6-37. TriVU. Selecting port
Figure 6-38. Positioning tab
