Serial RS-232C Connector

Rimmed in green, the RS232 connectors (Figure A-2) are sealed receptacle, 7 pin, ODU p/n
G80F1C-T07QC00-0000.
Table A-7 gives the RS-232C cable connector specifications.
1
2
3
4
5
6
7
152
4

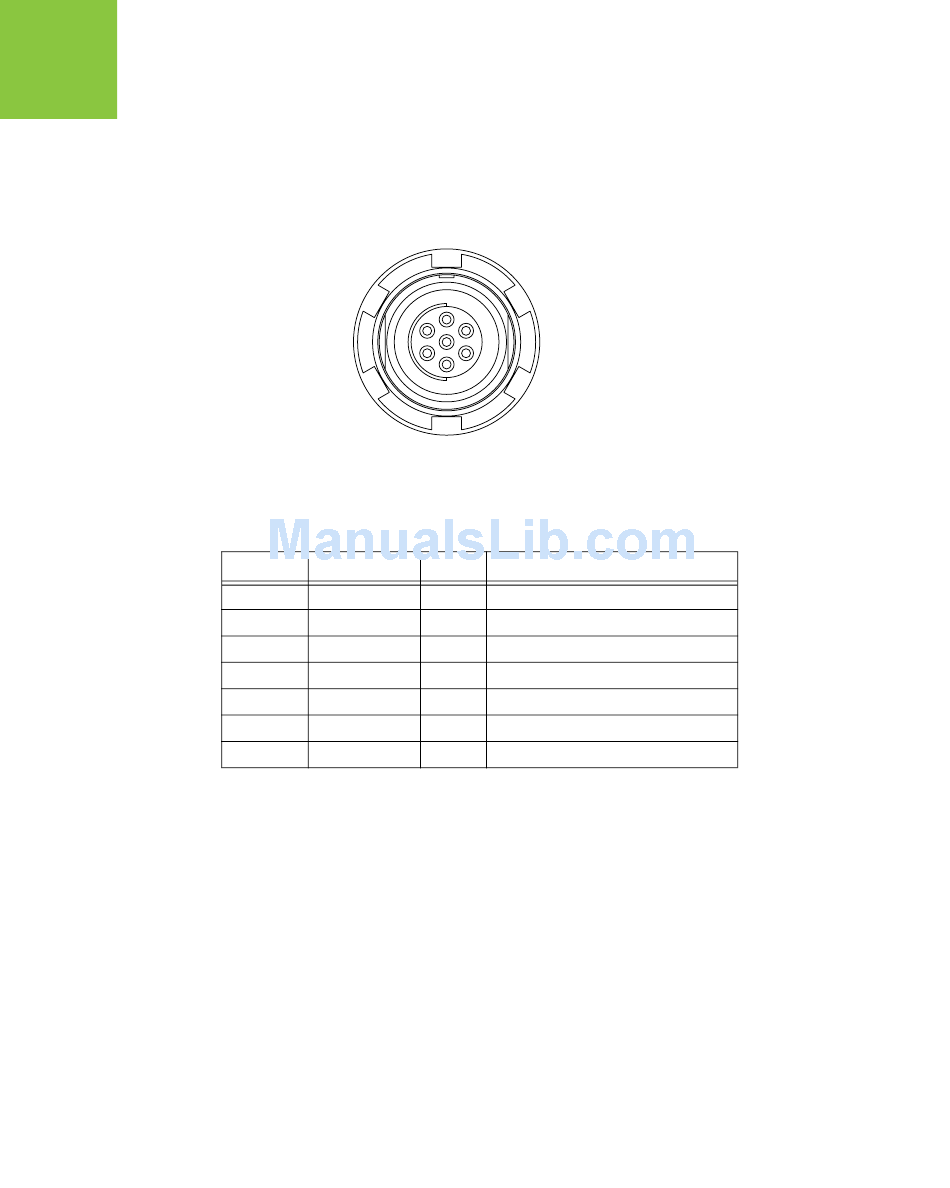

Figure A-2. RS-232C Connector
Table A-7. RS-232C Cable Connector Specifications
Number Signal Name
Power_OUT
GND
CTS
RTS
RXD
TXD
2
3
7
1
6
5
Dir Details
P Power Output (supplied voltage)
- Signal ground
I Clear to send
O Request to send
I Receive data
O Transmit data
Not used
