4.2. MinPad Operation

The MinPad is the receiver's minimum interface used to display and control data input and output
(Figure 4-1).
BT
BAT
On/Off
See "MinPad" on page 20 for a full description of the MinPad.
To turn on/off the receiver, press the On/Off button (Figure 4-1).
• When turning on, press the On/Off button until the MinPad's LEDs briefly flash.
• When turning off, press the On/Off button until the LEDs go out, then release.
To start/stop logging data, press the FN button for 1–5 seconds (Figure 4-1).
• During data recording, the REC LED is green. Use TriVU to set the recording time
interval. See "Recording Interval parameter" on page 68 for details.
• The REC LED blinks green each time data is written to the memory.
• If the REC LED is red, the receiver has run out of memory, has a hardware problem, or
contains an improper OAF (see "Option Authorization File (OAF)" on page 24 for more
information).
Use TriVU to enable the desired FN key mode in the receiver, either "LED blink mode switch"
for static surveys or "Occupation mode switch" for kinematic surveys. See "Data Recording
Auto-start parameter" on page 70 for details.
Each time you turn off or on data recording, either a new file opens or data appends to a particular
file. See "Always Append to the File parameter" on page 69 and "Files Creation Mode parameter"
on page 69 for information on setting these functions.
www.javad.com
MOD SAT
POS
REC
FN

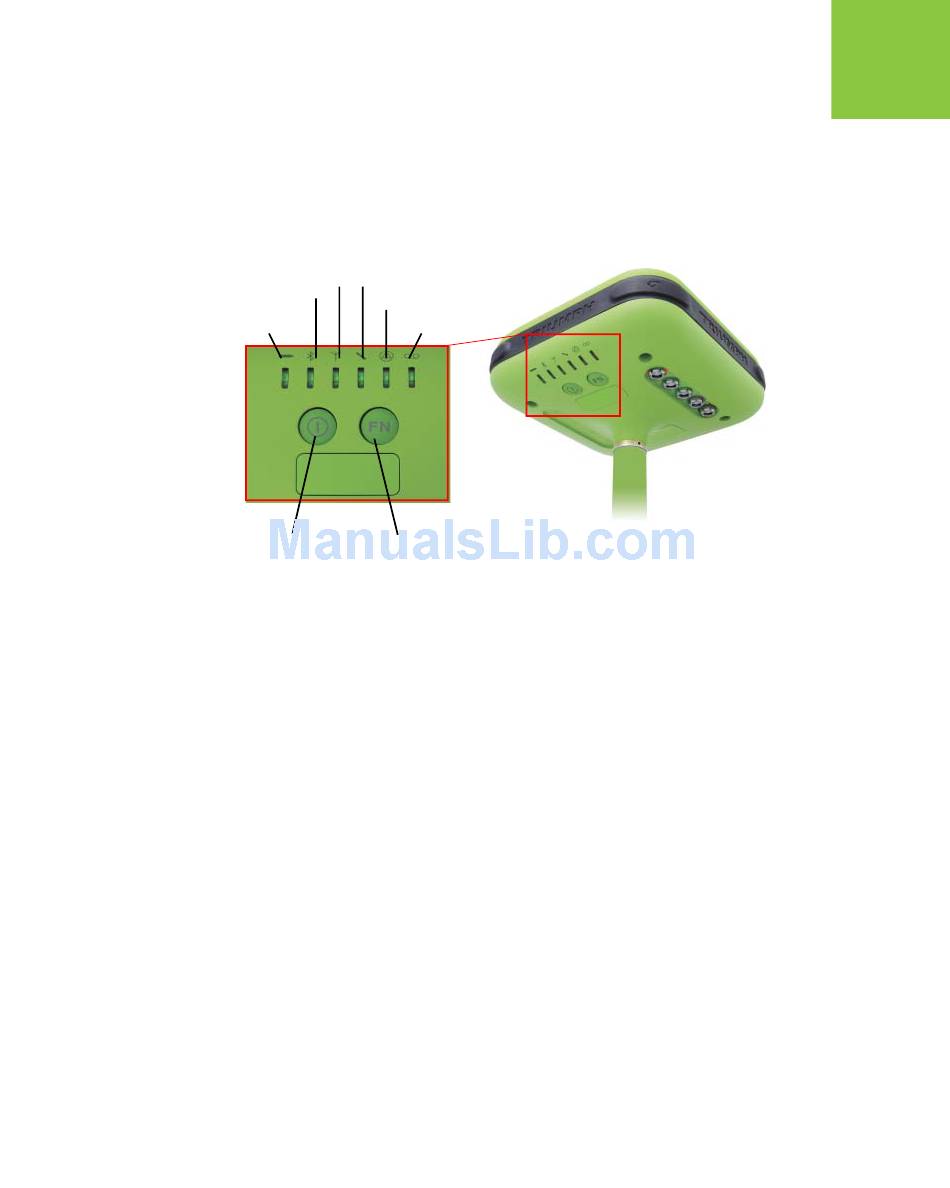

Figure 4-1. TRIUMPH-1 MinPad
