Javad TRIUMPH-1 Operator's Manual page 100

Configuration Examples
UHF Base & Rover Configuration
Rover Configuration
• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Corrections: ON
• Scrambling: ON
6. Quit ModemVU by clicking Exit button.
7. Start TriVU. Select port the receiver is connected to and click OK (Figure 6-56).
8. Click Configuration Receiver.
9. In the Positioning tab set RTK fixed Mode, then click Apply (Figure 6-13).
100

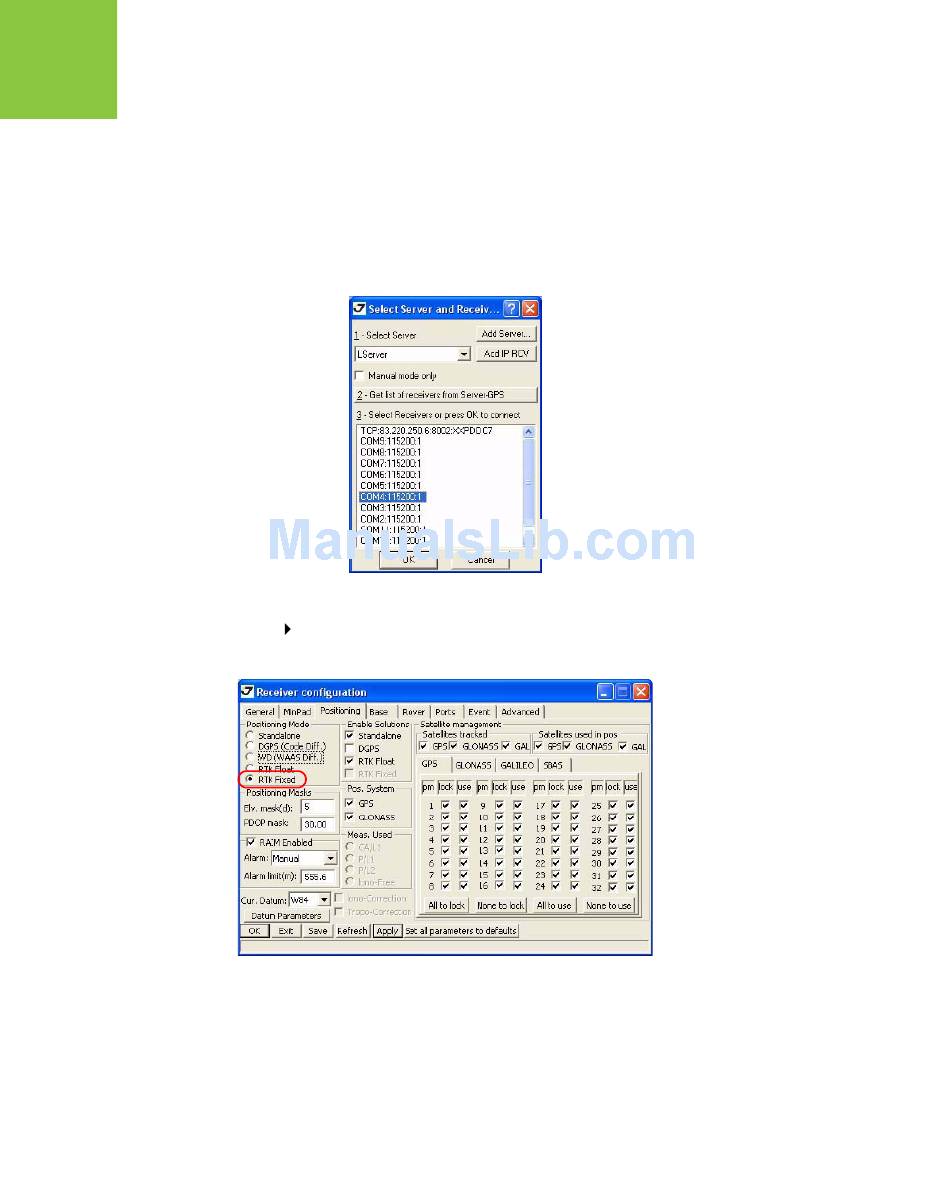

Figure 6-12. TriVU. Selecting port
Figure 6-13. Positioning tab
www.javad.com
