Configuration
Configuring the Internal/External UHF Modem/GSM Module
Configuring the GSM module for Internet access

Settings for the RCV subtab

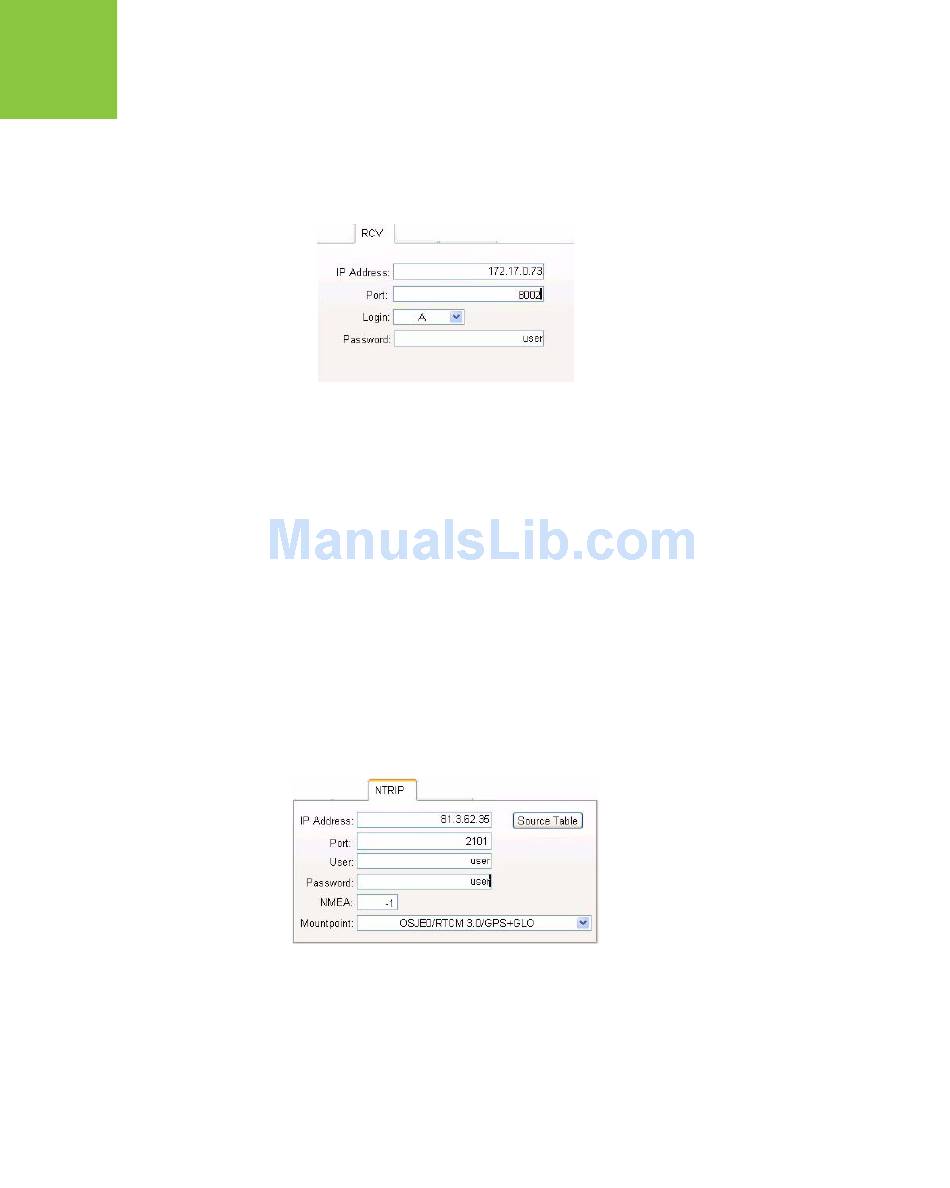

The RCV subtab is depicted in Figure 3-9.
• IP address - IP address of base station.
• Port - base station's port
• Login - designation of base station's TCP port (A, B, C, D, E or empty).
• Password - password of base station.
IP address, Port, Login, and Password are the parameters of other receiver, configured as a base
station and connected with Internet via Ethernet or GPRS.
The description of these parameters exceeds the scope of this document, see TriVU Software
Manual, available from http:///www.javad.com, for detailed information of base station's
configuration and Ethernet and TCP port settings.

Settings for the NTRIP subtab

The NTRIP subtab is depicted in Figure 3-10:
• IP address - The value of this field should match the IP address of the NTRIP caster to
use.
54
Figure 3-9. RCV subtab
Figure 3-10. NTRIP subtab
