• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Corrections: OFF
6. In the Serial Interface & Tools tab set the desired Clock correction value (ON/OFF), and
click Apply (Figure 6-36).
Note:
The different Satel Radio models may require or not the Clock correction parameter activation. It
is strongly recommended to make sure if this parameter is required to be activated. To do this
make the following: change the value of this parameter and control LQ (see Figure 6-59 on
page 127). The maximal value of LQ parameter shows that the Clock correction parameter is set
correctly.
7. Quit ModemVU by clicking Exit button.
www.javad.com

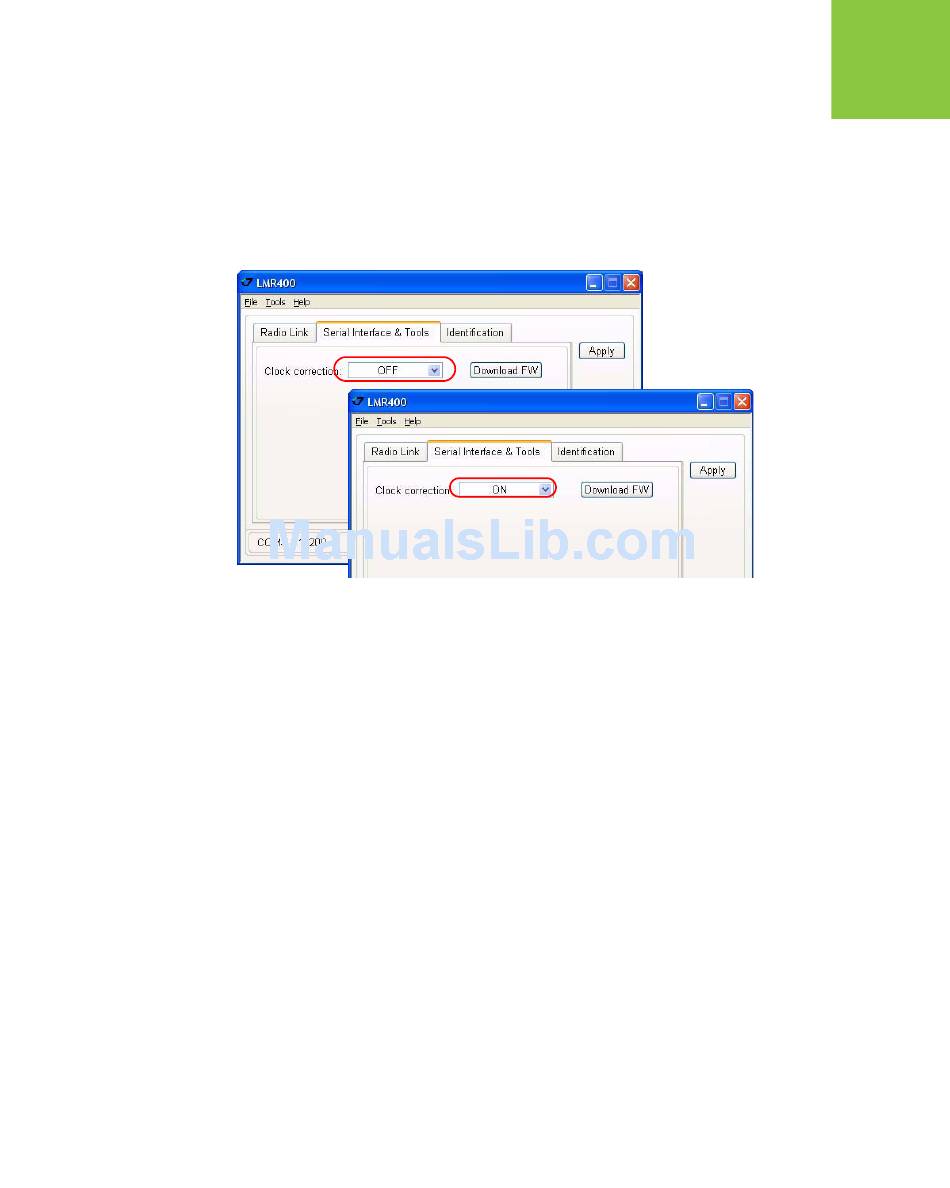

Figure 6-36. Clock correction parameter
Configuration Examples
Satel Protocol Configuration Example
Rover Configuration
