Pre-survey Preparation

Powering the Receiver

Power supply requirements
• Charger – displays the charger's output voltage during battery charging.
• On Ports – displays the voltage output on pin one of all serial ports connectors.
9. Select and check each of the Turn on/off slots list boxes to enable the corresponding
internal slots.
10. Click Apply.
2.6. Powering the Receiver
When powered from the internal batteries, the receiver will constantly switch from one battery to
the other, maintaining a difference of 0.4 V between the batteries.
To check the status of the internal batteries, view the BAT LED or check the status using JAVAD
GNSS software.
• Check the BAT LEDs for battery status.
– A green light indicates greater than 85% charge.
– An Yellow light indicates an intermediate charge.
– A red light indicates less than 15% charge.
• Do one of the following using TriVU:
– Start TriVU to view battery voltages on the status bar of the program window.
– Click Configuration Receiver and open the General tab to view battery voltages.
To charge the receiver internal batteries, take the following steps:
36
AC outlet
To PWR marked port
Receiver-to-SAE cable

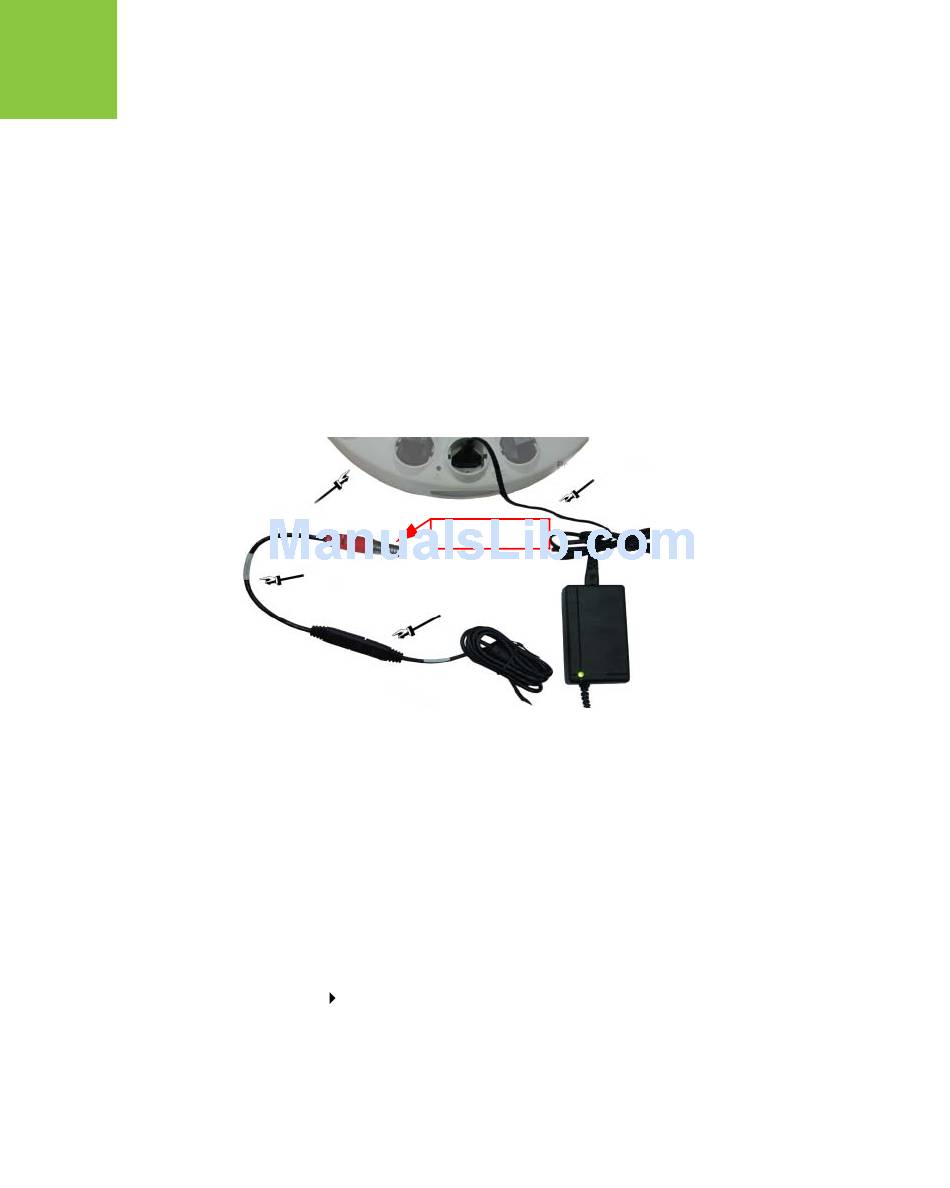

Figure 2-9. Powering TRIUMPH-1
Power supply-to-
outlet cable
Power supply
SAE connector
