USB Connector

Rimmed in black, the USB connector is a sealed receptacle, 5 pin, ODU p/n G80F2C-P05QF00-
0000 (Figure A-3).
Table A-8 gives the USB connector specifications.
1
2
3
4
5

Ethernet Connector

Rimmed in gray the Ethernet connector is a sealed receptacle, 7 pin, ODU p/n G80F2C-
P07QC00-0000 (Figure A-4).
www.javad.com
3
4

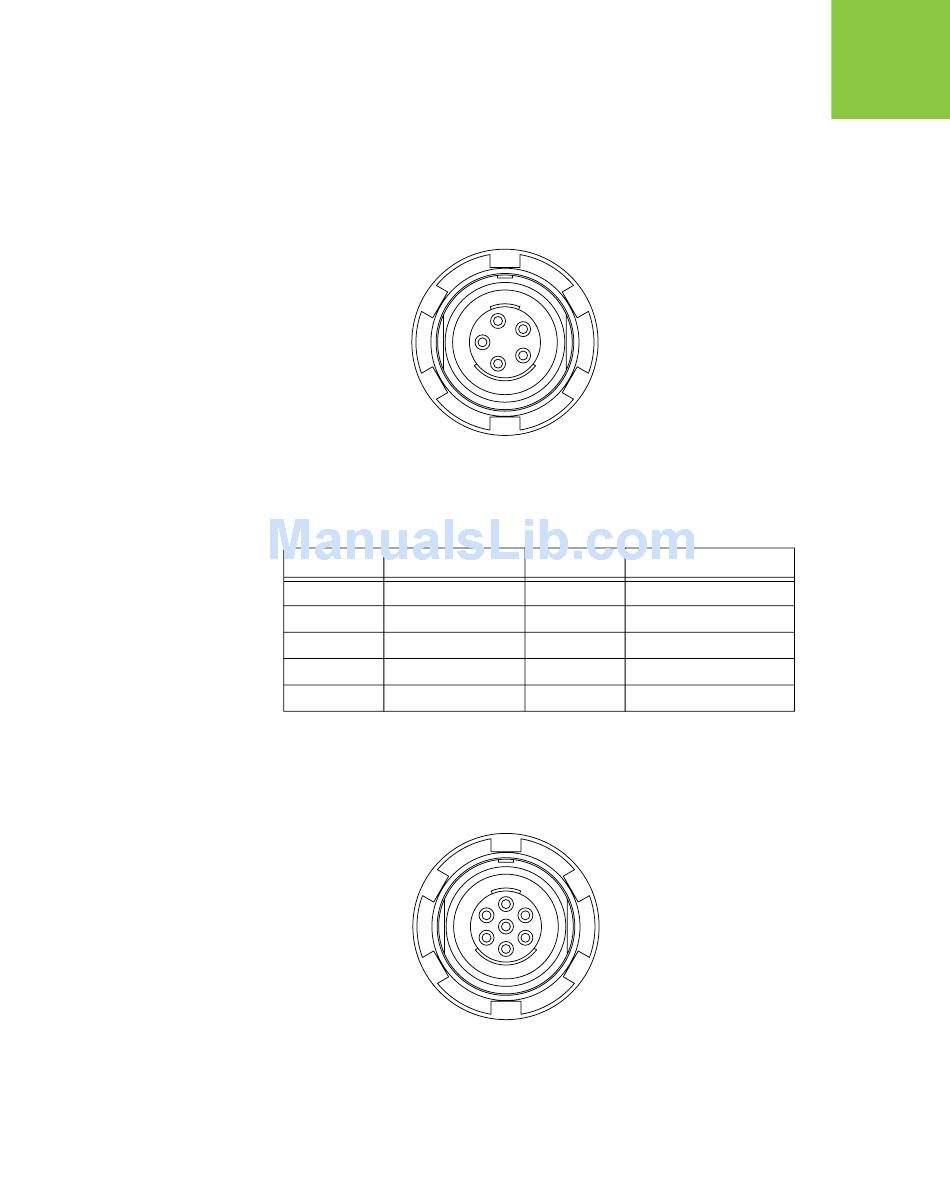

Figure A-3. USB Connector
Table A-8. USB Connector Specifications
Number Signal Name
USB ID
USB_PWR
GND
USB D+
USB D-
3
4
Figure A-4. Ethernet Connector
2
1
5
Dir
I USB ID
P Bus power
- Ground
I/O Data plus
I/O Data minus
2
7
1
6
5
