4. Select the ON mode for Radio, click Apply, and then click Connect Radio button
(Figure 6-44).

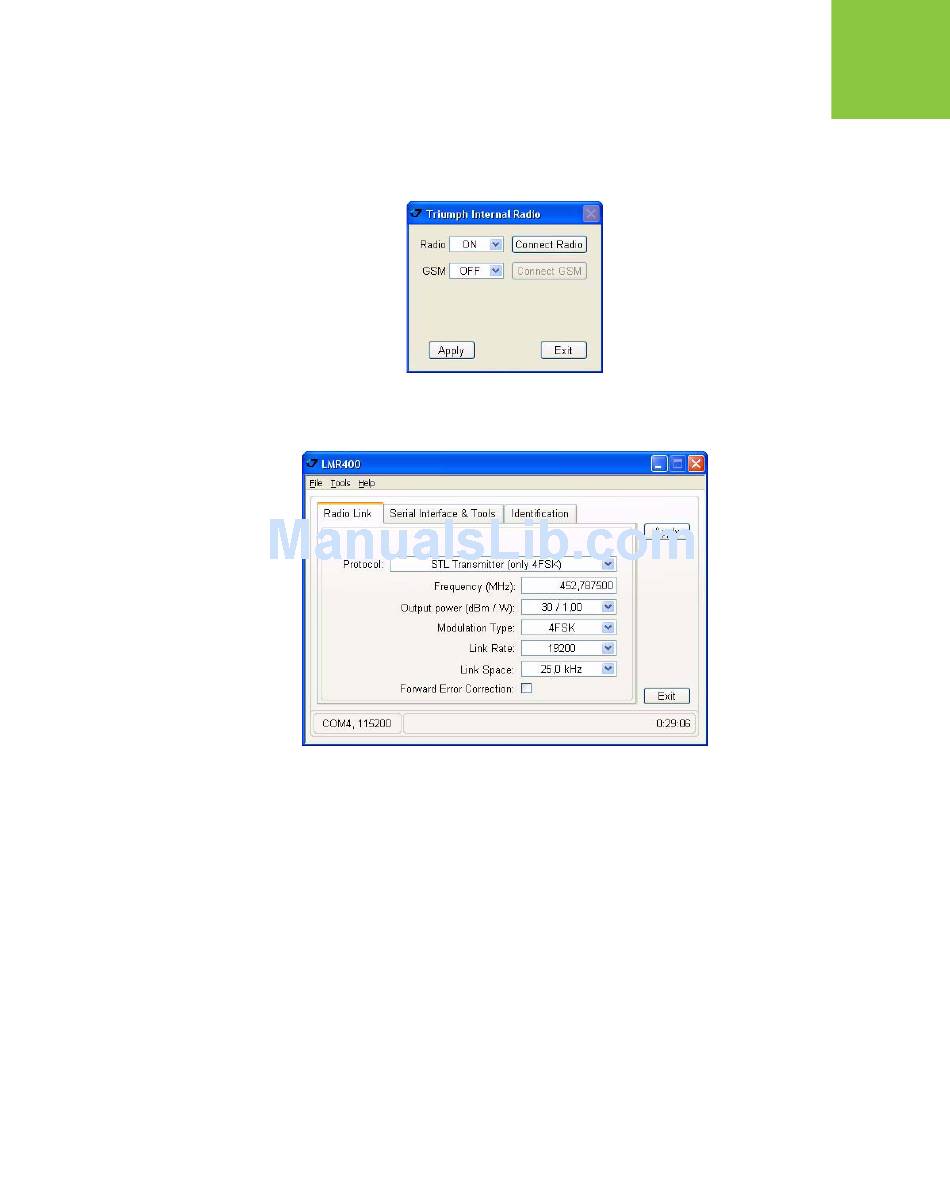

Figure 6-27. ModemVU TRIUMPH Internal Radio selection
5. In the Radio Link tab set the following parameters, and click Apply (Figure 6-4):
• Protocol: STL Transmitter (only 4FSK)
• Frequency (MHz): 406 to 470
• Output power (dBm/W): 30/1.00
• Modulation Type: 4FSK
• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Corrections: OFF
6. Quit ModemVU by clicking Exit button.
www.javad.com
Figure 6-28. Radio Link tab settings
Configuration Examples
Satel Protocol Configuration Example
Base Station Configuration
