Vii.10 Bi-Directional Printing Band Adjustments - GRAPHTEC SignJet JS310 Series Setup Manual

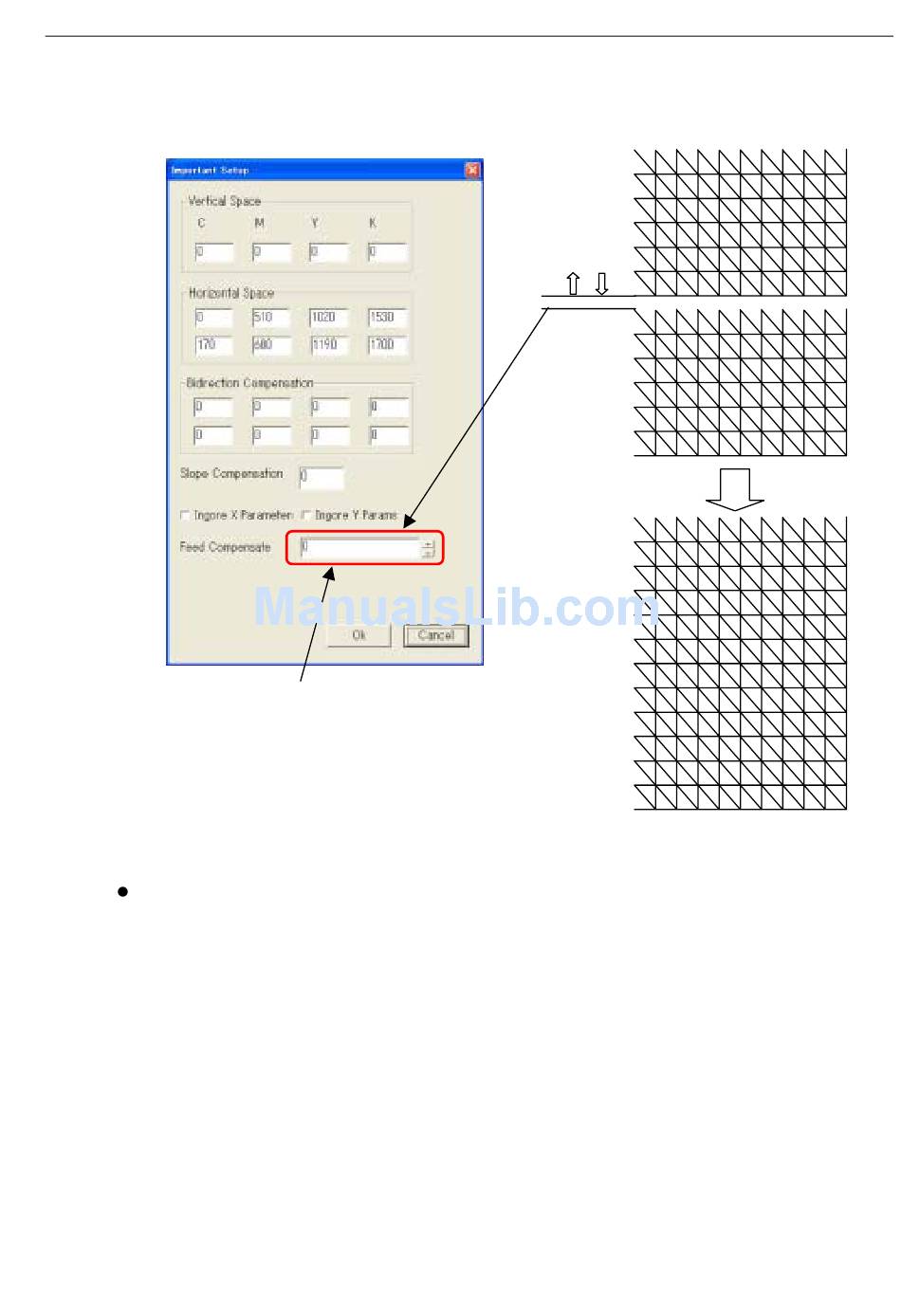

VII.9.3 Use the Try utility to adjust the media feed amount.
Make adjustments so that the vertical lines and the diagonal lines are connected as straight lines.
Adjust this value to connect each printed bands.
VII.9.4 Print the adjustment pattern once again, and check the results of the adjustments made.
Repeat the printing and adjustment procedures until satisfactory adjustment results have been
achieved.
Bi-directional Printing Band Adjustments
VII.10
The bi-directional band adjustment settings need to be changed if changes are made to the following two
parameters. Whenever these parameters are changed, make the adjustment settings accordingly.
1） The printhead carriage speed
2） The media thickness
The following describes the adjustments made to the cyan printhead. Make adjustments in the same way
for the magenta, yellow, and black printheads.
SignJet JS310 Series Set Up Guide
- 69 -
+ –
