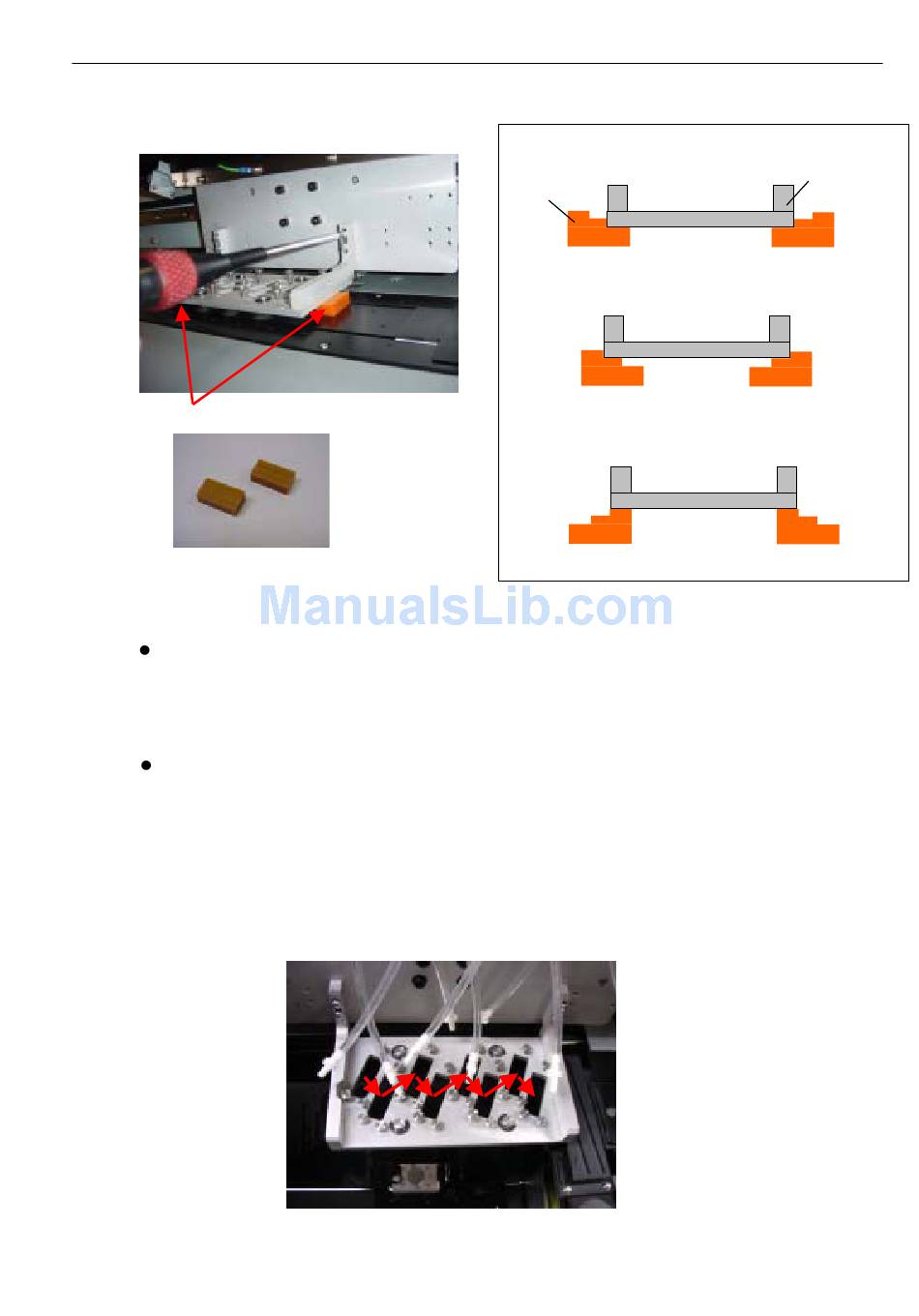

Printhead height Adjustment

V.3
Adjust the printhead height with a jig.
Jig, Head height adjustment

Mounting the Printheads

V.4
If the printhead carriage is not at the cleaning position, move it to the cleaning position
(See section V.2 Initial Cleaning of the Cleaning Solution Supply Tubes).
V.4.1 Turn off the printer power supply.
Turn off the printer power supply before mounting the printheads.
Performing the printhead mounting operation while the power supply is on may result in damage
to the printer or to the printheads. Make sure that the power supply is turned off.
V.4.2 Mount the printheads in order from the left-hand side.
Mount the printheads in the order shown below, starting from the left-hand side. The procedure
described below is the procedure for mounting one printhead. Repeat the procedure for all eight
printheads.
SignJet JS310 Series Set Up Guide
Start
Printhead mounting order
- 35 -
◆The height adjustment position
Jig
(Standard)
・When the head protector is not attached.
・When a printhead rubs with the media.
・When the head protector is attached.
End
Printhead
