Adjusting the Positions of Printheads of a Different Color
VII.8
Using the cyan printhead as the reference printhead, make adjustments to ensure the most optimal
positions for the magenta, yellow and black printheads. Here we will describe the adjustment procedure
for the magenta printhead, using the cyan printhead as the reference printhead. Make adjustments for the
yellow and black printheads in the same way.
VII.8.1 Select the print mode.
(1) Press the ONLINE key on the control panel to put the printer into ONLINE status.

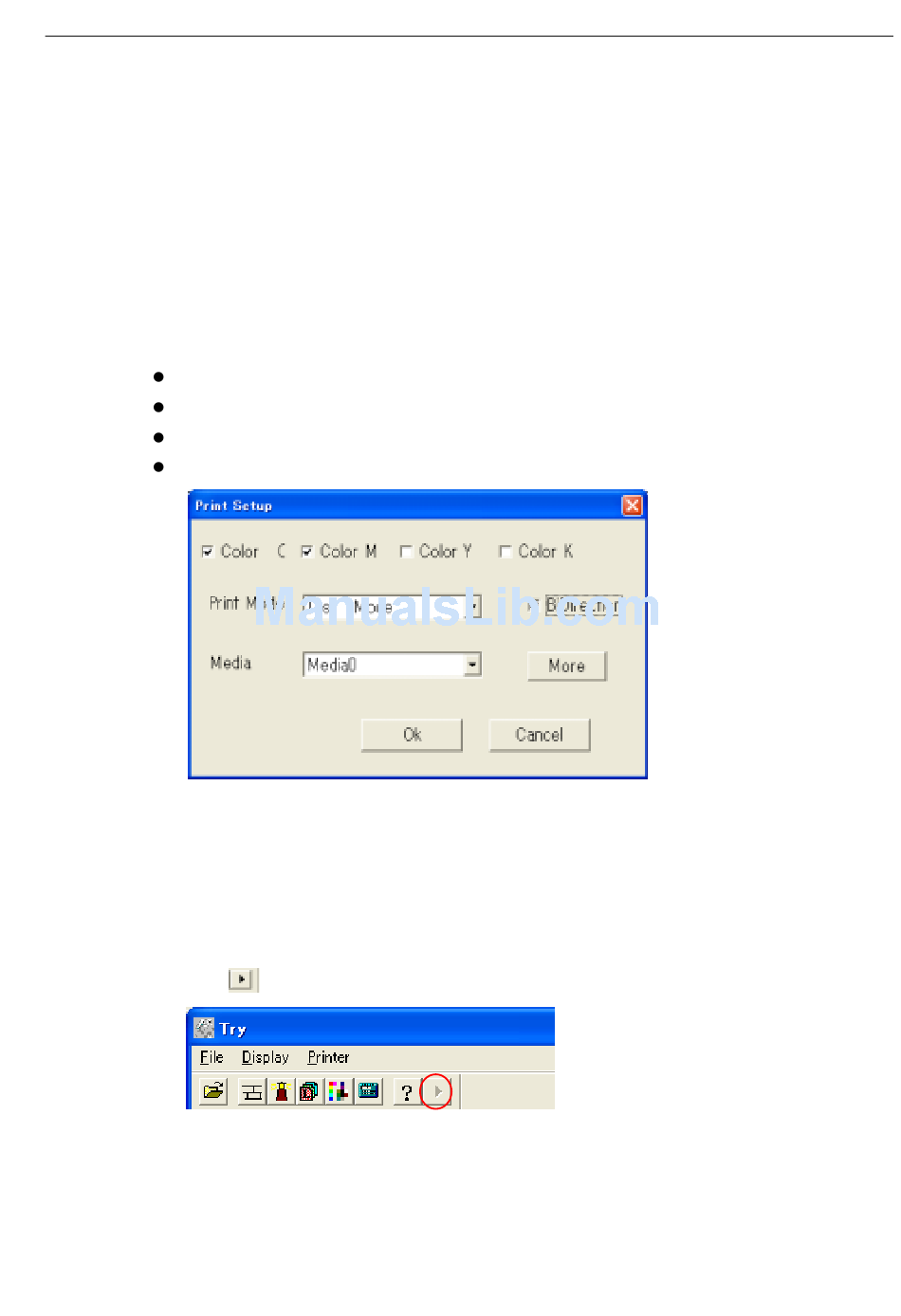

(2) On the menu bar, click File → Print Setup.
(3) Make the following settings:
Insert a check in the boxes in front of "Color C" (Cyan) and "Color M" (Magenta).
Remove the checks from the boxes in front of Color Y (Yellow), and Color K (Black).
Select "Test Mode" for "Print Mode".
Remove the check from the box in front of "BiDirection".
(4) Click "OK" to close the dialog box.
VII.8.2 Select an adjustment pattern and print it.
(1) On the menu bar, click File → Open.
(2) Open the "C: /Try/ SmallGrid126.group" file.
(3) Click the
SignJet JS310 Series Set Up Guide
button on the toolbar to start printing the selected pattern.
- 66 -
