Setting the Printhead Drive Voltage
VII.1

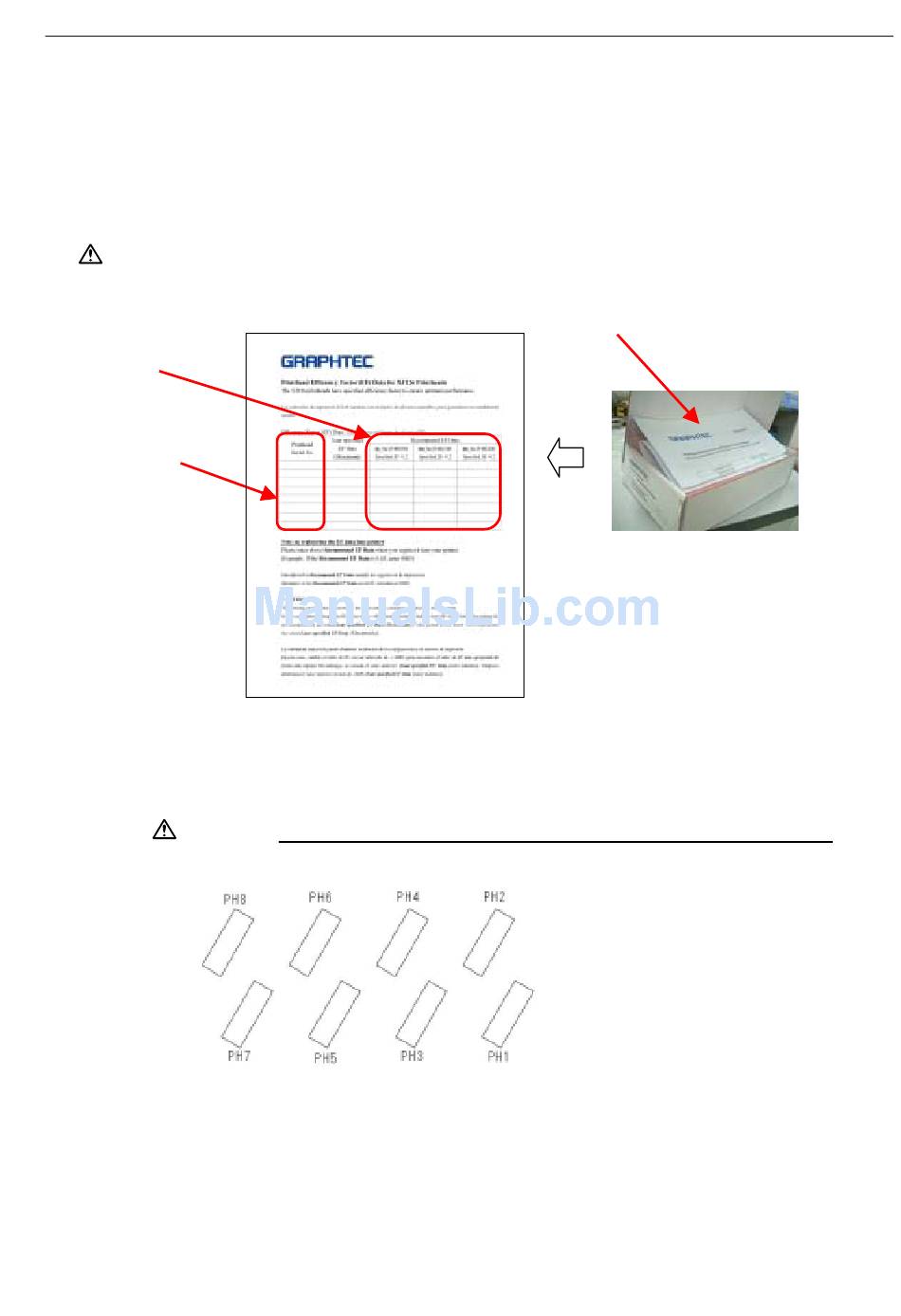

The optimum drive voltage varies with each printhead. Follow the procedure given below to register the
EF values printed EF data sheet; "Printhead Efficiency Factor (EF) Data for XJ126 Printheads" into the
printhead package to the printer.
CAUTION: If the power supply has been turned off, remove the wet keeping frame, and then turn on
the power supply.
EF value
(Recommend EF Data)
Serial number
(1) From the main menu, select [Print Para] and then press the ENTER key.
(2) From the submenu, select [PH Volt Set] and then press the ENTER key.
(3) Enter the EF values for PH1 to PH8, and then press the ENTER key.
CAUTION: Enter the "Recommend EF Data" when you register it into your printer.
(4) Return to the main menu, select [Application], and then press the ENTER key.
(5) From the submenu, select [Curve of ink] and then press the ENTER key.
(6) Select "0003 Xr2S JS", and then press the ENTER key.
SignJet JS310 Series Set Up Guide
Example: If the Recommend EF Data is 0.85, enter 0085.
