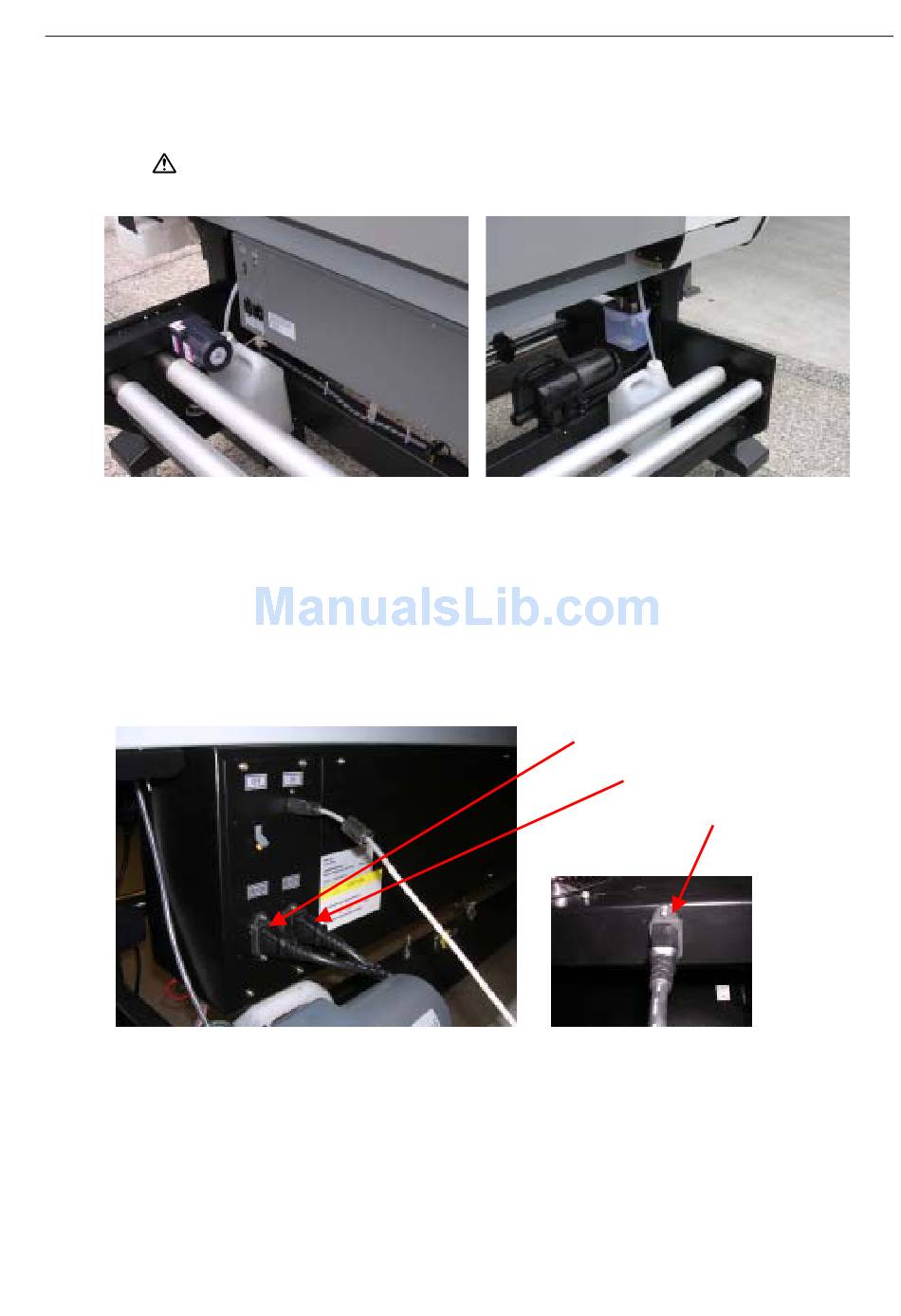

IV.3.2 Connect the tubes to the waste ink tanks.
Mount the waste ink tanks on the brackets. Insert the corresponding waste liquid tubes
protruding from the printer into the opening of each waste ink tank.
CAUTION: Store the caps that were removed from the waste ink tanks in a safe place so as
Connecting the Power Supplies
IV.4
The printer is provided with three power supplies: a printer power supply, a heater power supply, and a
dryer power supply. Connect a cable to each power supply, making sure that the cable conforms to the
specifications.
IV.4.1 Connect the power supply cables to the power supply connectors.
SignJet JS310 Series Set Up Guide
not to lose them.
PRINTER power supply
- 23 -
HEATER power supply
DRYER power supply
