GRAPHTEC SignJet JS310 Series Setup Manual page 64

VII.7.3 Adjust any printhead tilt

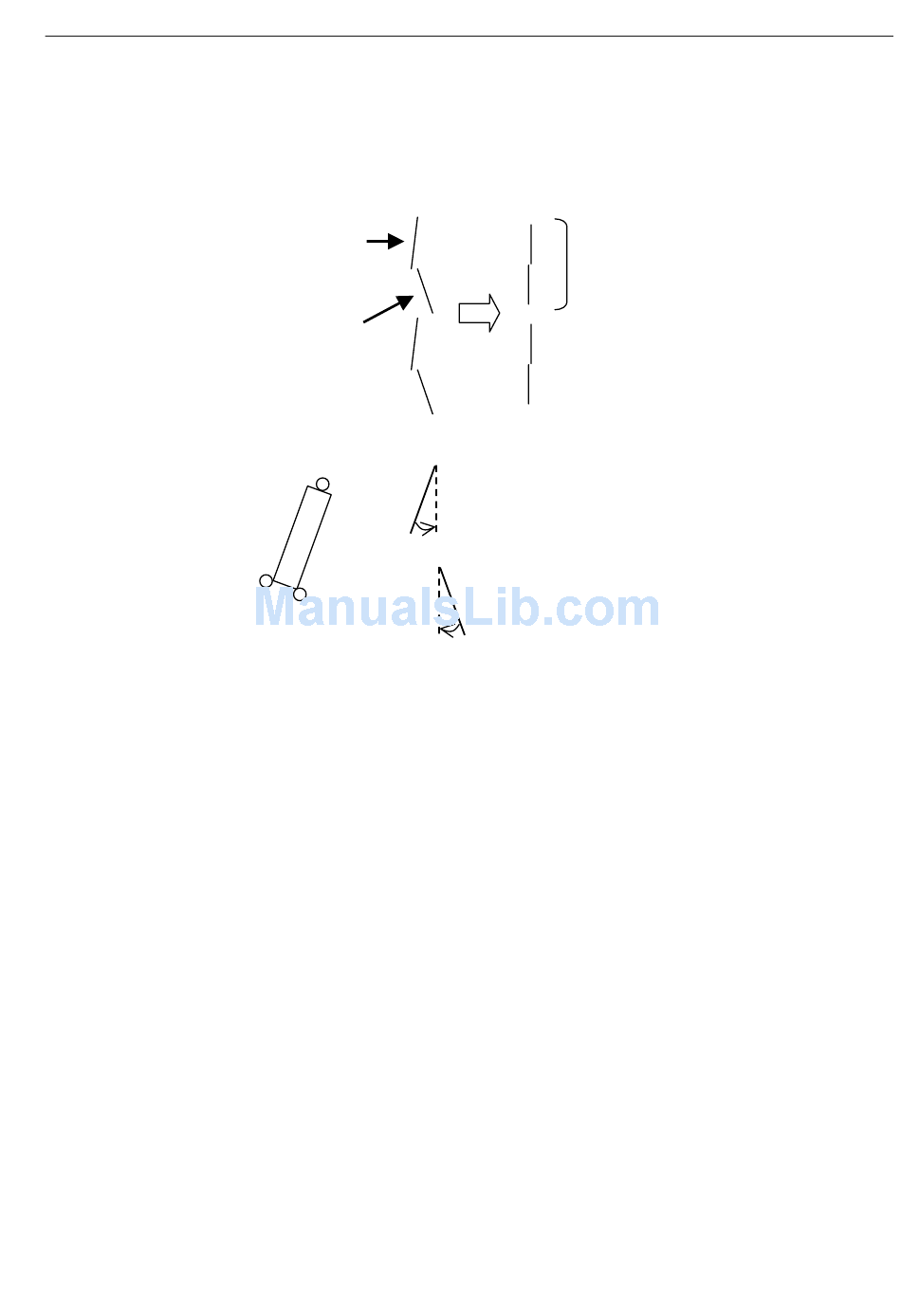

(1) Adjust the print head tilt for rear and front of the print heads.
Adjust the print heads tilt so that the vertical lines are vertical.
If the vertical lines are not vertical, adjust the screws used to fasten the print heads.
The line printed by the
print head of rear.
The line printed by the
print head of front.
Print Head
2
Left screw
SignJet JS310 Series Set Up Guide
Upper screw
1
3
Right screw
1 scan width
How to tilt the printing line in anticlockwise direction:
Loosen a right screw, and then tighten a left screw.
How to tilt the printing line in clockwise direction:
Loosen a left screw, and then tighten a right screw.
- 63 -
