Connecting the Printer to Your Computer
VII.3
The USB 2.0 interface is used to connect the printer to your computer.
USB 2.0 Connection
Use the USB cable provided to connect the printer's USB port directly to the computer's USB port.
Connecting the Printheads
VII.4
VII.4.1
Turn off the printer power supply.
VII.4.2
Connect the printhead cables provided.
Printhead connectors
VII.4.3
Attach the fixer and cover.
Fixer
Cover
SignJet JS310 Series Set Up Guide
- 58 -

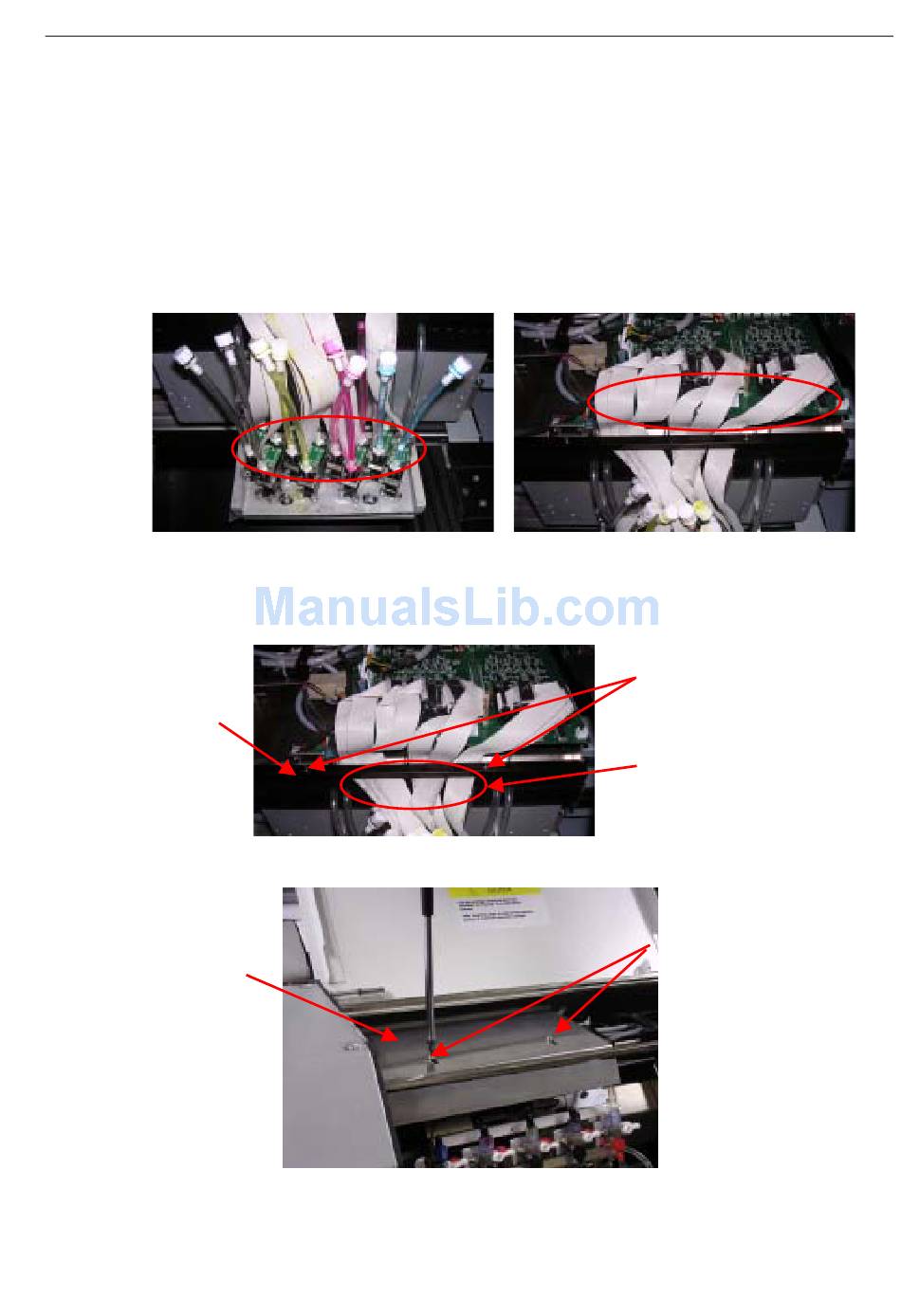

Printhead carriage PCB connectors
Tighten the screws.
Put the cable through
a guide.
Tighten the screws.
