7914InstallSM01108.fm

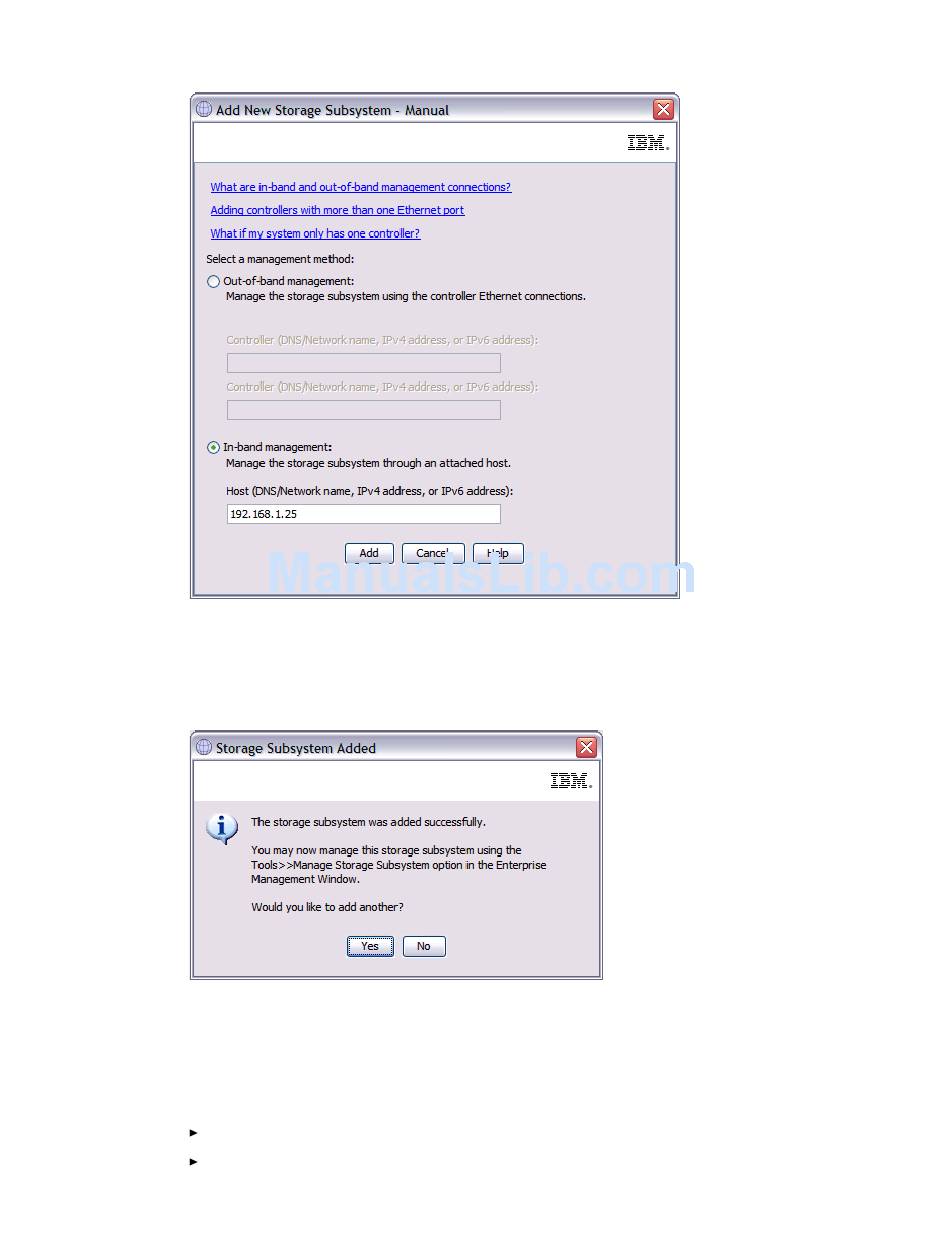

Figure 5-28 In-band management
Click Add to complete the process. Once successfully added, you will have an option to add
another Storage Subsystem as shown in Figure 5-29, and you can repeat the process until all
the desired Storage Subsystems are added.
Figure 5-29 Storage Subsystem Added

5.4.3 Add Storage Subsystem verification

Verify that each host and storage subsystem displays in the Enterprise Management Window.
If a host or storage subsystem is not displayed, perform the following tasks:
Check the hardware and hardware connections for possible problems.
If you are using the network management method (commonly known as out-of-band
management), verify that all hosts and storage subsystems are connected to the same
158
IBM System Storage DS3500: Introduction and Implementation Guide
Draft Document for Review March 28, 2011 12:24 pm
