IBM System Storage DS3500 Introduction And Implementation Manual page 623

Draft Document for Review March 28, 2011 12:24 pm
12..In the console tree, make sure Services and Applications is expanded, and then select
the clustered file server that you just created.
13.Under Actions, click Add a shared folder. The Provision a Shared Folder Wizard
appears.

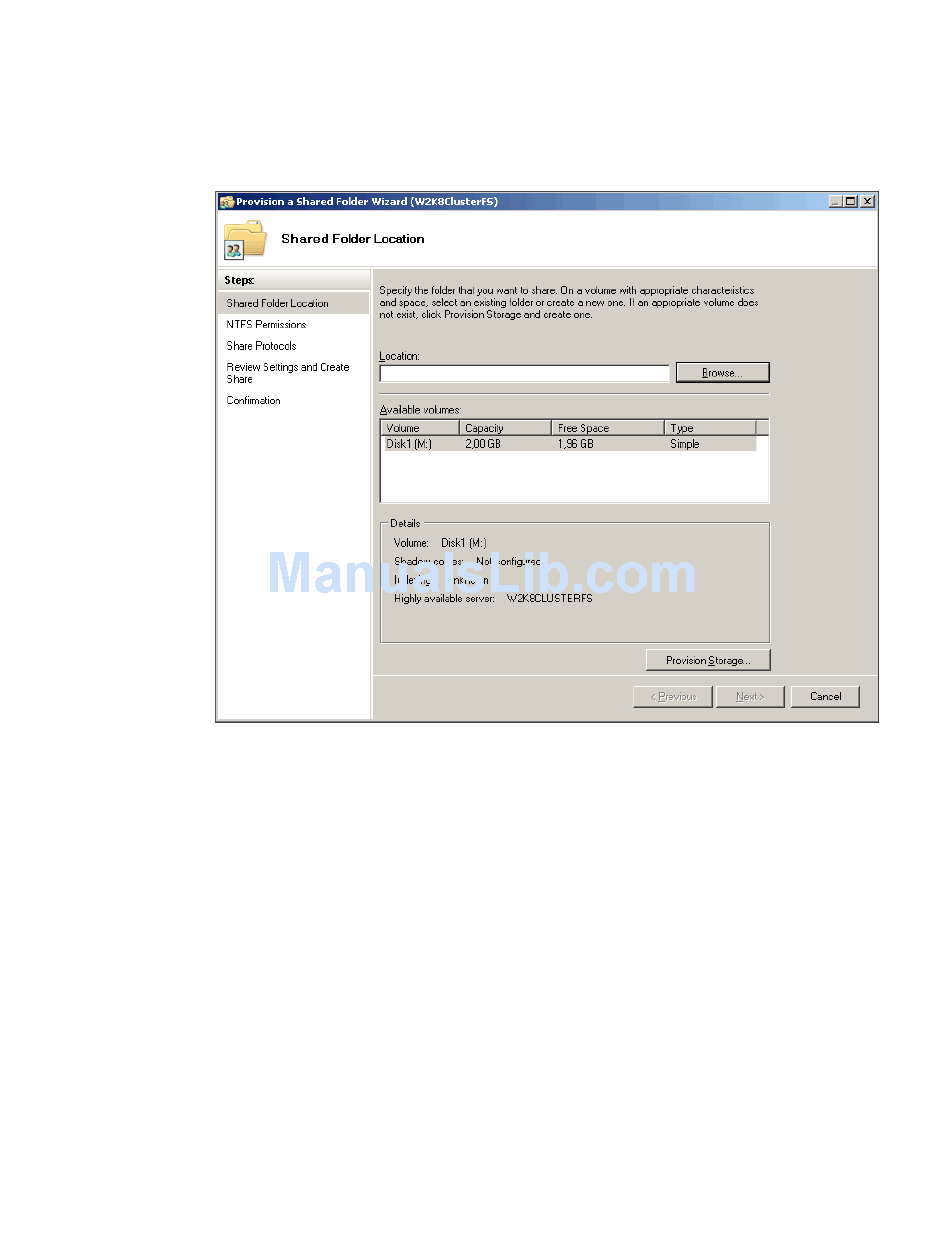

Figure 19-34 Specify the Share Folder Location
14.Follow the instructions in the wizard to specify the following settings for the shared folder:
– Path and name
– NTFS permissions
– Share name and path
– Advanced settings for the SMB protocol (optional). SMB is used by Windows-based
clients.
– SMB share permissions
– DFS namespace publishing
15.Review the settings and click Create to create share as shown in Figure 19-35 on
page 600.
Microsoft Cluster configuration with DS3500.fm
Chapter 19. Microsoft Cluster configuration with DS3500
599
