Plot Layer Description
1
2
3
3655DOC020102
Operator Manual
1
2
3
4

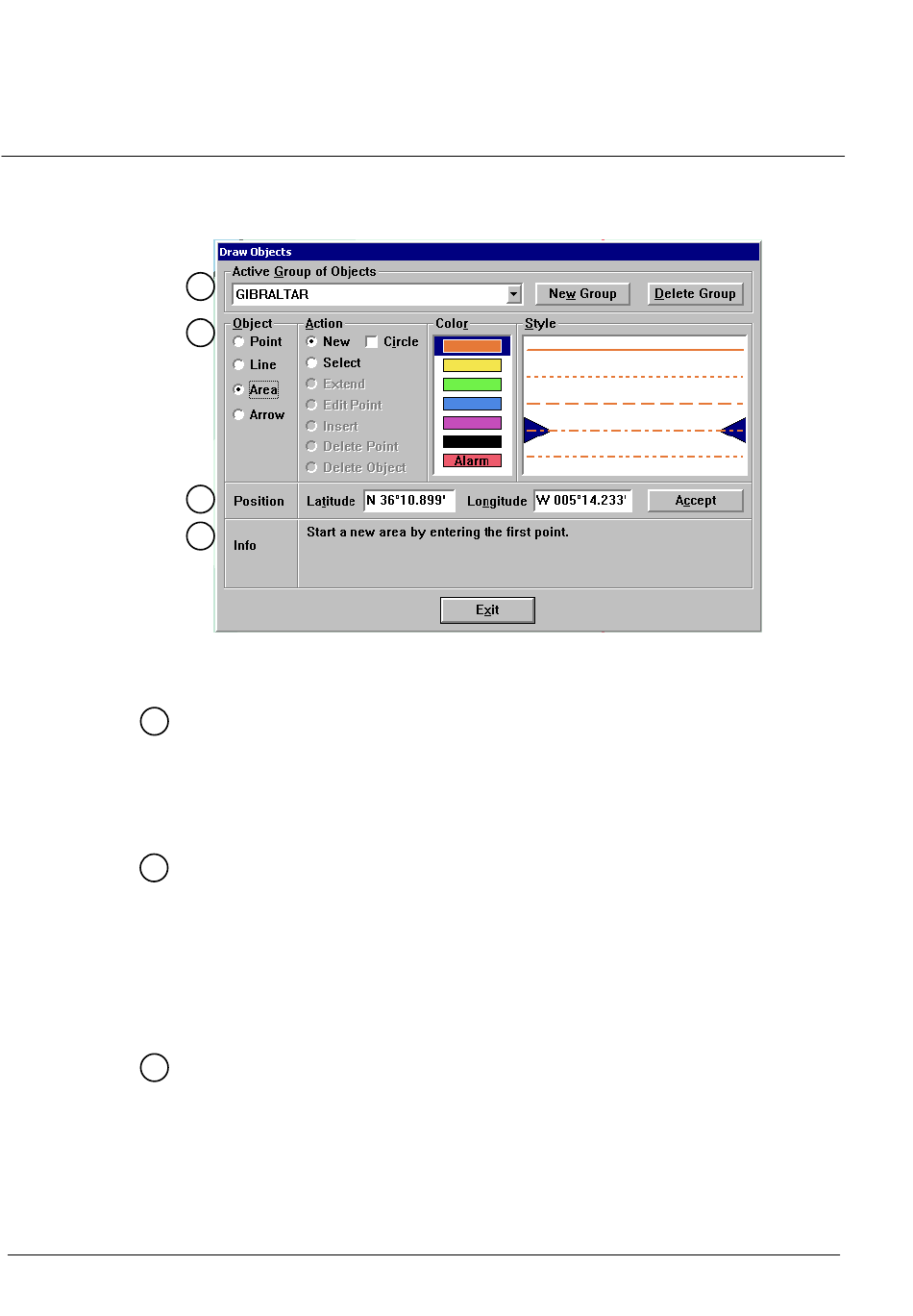

Figure: 10−2 Draw Objects
Active Group of Objects for
selecting a named group of chart entries
designating a newly named group of chart entries
deleting a desired group of chart entries
Edit
Edit is subdivided into following groups:
Object − for selecting the display mode
Action − for editing objects
Color − for the object attribute Color
Style − for the object attribute Style
Position
shows the current cursor position during the recording phase.
Can be used for entering the position. The position is taken over by clicking
on the Accept button.
