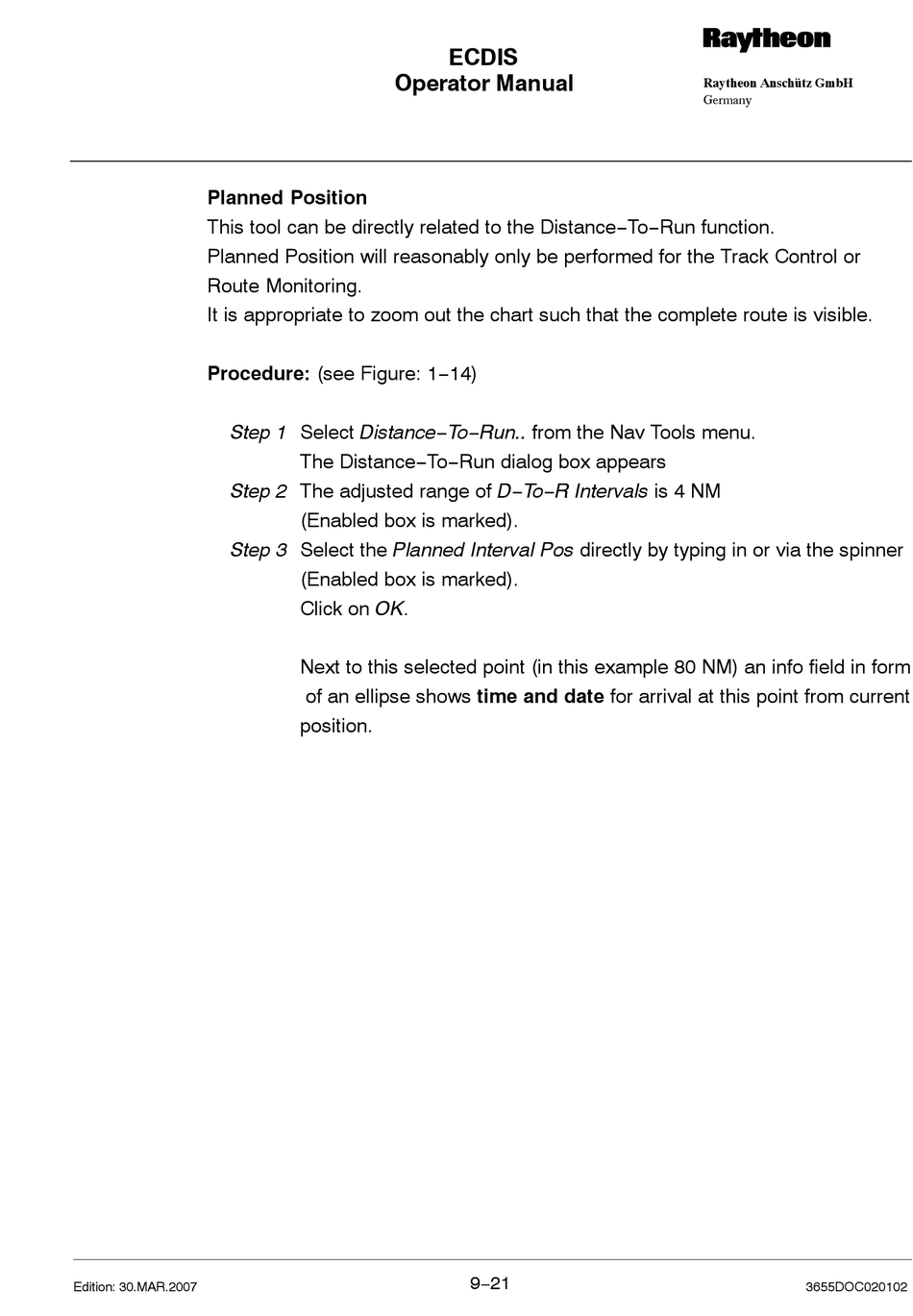

Planned Position
This tool can be directly related to the Distance−To−Run function.
Planned Position will reasonably only be performed for the Track Control or
Route Monitoring.
It is appropriate to zoom out the chart such that the complete route is visible.
Procedure: (see Figure: 1−14)
Step 1 Select Distance−To−Run.. from the Nav Tools menu.
Step 2 The adjusted range of D−To−R Intervals is 4 NM
Step 3 Select the Planned Interval Pos directly by typing in or via the spinner
Edition: 30.MAR.2007
ECDIS
Operator Manual
The Distance−To−Run dialog box appears
(Enabled box is marked).
(Enabled box is marked).
Click on OK.
Next to this selected point (in this example 80 NM) an info field in form
of an ellipse shows time and date for arrival at this point from current
position.
9−21
