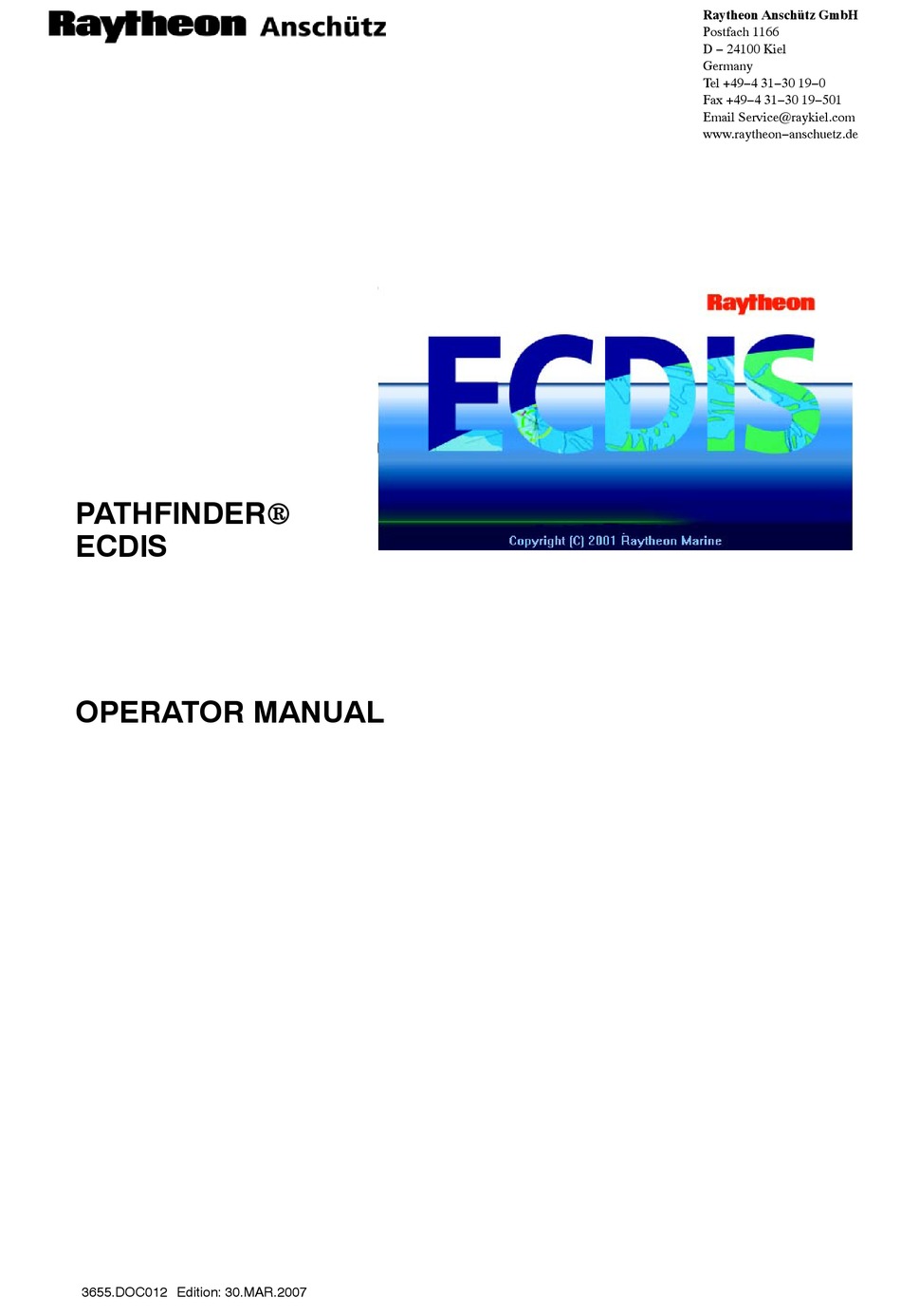

Page 1 Raytheon Anschütz GmbH Postfach 1166 D − 24100 Kiel Germany Tel +49−4 31−30 19−0 Fax +49−4 31−30 19−501 Email Service@raykiel.com www.raytheon−anschuetz.de PATHFINDER[ ECDIS OPERATOR MANUAL 3655.DOC012 Edition: 30.MAR.2007...
Page 2 Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Copying of this document, and giving it to others and the use or Mitteilung ihres Inhaltes nicht gestattet, soweit nicht ausdrücklich communication of the contents thereof, are forbidden without express zugestanden. Zuwiderhandlungen verpflichten zu Schadenersatz. authority.
Page 4 Email info@raykiel.com www.raytheon-anschuetz.com EC Declaration of Conformity Directive 96/98/EC, last amended by Directive 2002/75/EC Electronic Chart Display and Information System (ECDIS) / Pathfinder ECDIS Listing of the system components: Product Type: ECDIS / RCDS Pathfinder ECDIS MK2, comprising of: Device...
Page 5 Fax +49-431-30 19-291 Email info@raykiel.com www.raytheon-anschuetz.com EC Declaration of Conformity Directive 96/98/EC, last amended by Directive 2002/75/EC Product Type: ECDIS / RCDS Pathfinder ECDIS System configurations drawings: 1. No.950-001 NG (C21 CRT-Monitor) 2. No.950-002 NG (C29 CRT-Monitor) 3. No.950-003 NG (TFT-Monitor) 4.
Page 6 Tel +49-4 31-30 19-0 Fax +49-431-30 19-291 Email info@raykiel.com www.raytheon-anschuetz.com EC Declaration of Conformity Directive 96/98/EC, last amended by Directive 2002/75/EC Product Type: ECDIS / RCDS Pathfinder ECDIS System configurations drawings: Comprising of: Device Type NSC M Processor 950-005 NG001...
Page 7 ECDIS Raytheon Anschütz GmbH SHORT OPERATION Germany Menu Bar Information Panel see chapter 2.7 MAIN MENU (chapter 3) DISPLAY MENU (chapter 6) exports/imports to or from a floppy • select and configure a printer Zoom In or Zoom out sends and displays route information to radar •...
Page 8 ECDIS Raytheon Anschütz GmbH SHORT OPERATION Germany Edition: 30.MAR.2007 3655DOC0201...
Page 9 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Table of Contents INTRODUCTION ............
Page 10 Operator Manual Table of Contents 2.3.6 Text Boxes ............. 2−16 2.3.6.1 Entering Information in a Text Box with Trackball...
Page 11 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Table of Contents CHART MENU ............
Page 12 Operator Manual Table of Contents CM93/3 or IHO S63 Installation..........4−46 ARCS Installation .
Page 13 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Table of Contents OPTIONS MENU FOR DNC ..........
Page 14 Operator Manual Table of Contents SHIP MENU ............. . 7−1 SHIP MENU COMMANDS .
Page 15 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Table of Contents 8.2.1.6 If Track Control is active ..........
Page 16 Operator Manual Table of Contents 9.1.1.2 Range and Bearing from the Ship to a Displayed Location ....9−4 9.1.2 Rhumb/Great Circle Line .
Page 17 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Table of Contents 12.1.1 Navigation Devices Selection ..........
Page 18: Table Of Contents
Operator Manual Table of Contents Annex Windows and Cursor Symbols Annex−1 Menu Bar Annex−2 and 2−1 Charts Annex−3 ARCS Chart Annex−4 S57 CMAP93/3 Annex−5 Charts S57 License Annex−6 Charts IHO S−63 Annex−6.1 Charts Installation S57...ARCS Annex−6.2 and 6.3 Charts Installation DNC Annex−6.4 Charts Update S57...
Page 19 ECDIS Raytheon Anschütz GmbH Operator Manual Germany GLOSSARY OF TERMS NOTE Many of these definitions have been adapted from the “Glossary of ECDIS-Related Terms,” published by the International Hydrographic Bureau, 2nd Edition, September 1993. Term Description BACKSPACE THE BACKSPACE KEY; USED TO ERASE CHARACTERS TO THE LEFT OF THE VERTICAL BAR.
Page 20 Operator Manual Table of Contents Term Description COURSE THE DIRECTION IN WHICH THE SHIP IS TRAVELING. IT IS MEASURED FROM 0 (AT NORTH, CLOCKWISE TO 360). THE COURSE IS THE DIRECTION TO BE STEERED. COURSE CONTROL ONE OF PATHFINDER/ST ECDIS’S MODES OF OPERATION. IT IS DEFINED BY AN ELEC- TRONIC HEADING, RATE OF TURN AND TURNING RADIUS, AND STEERING MAY BE DONE MANUALLY OR BY THE AUTOPILOT.
Page 21 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Term Description HEADING THE DIRECTION IN WHICH THE CRAFT IS POINTED (NOT TRAVELING, PLEASE SEE COURSE). ALL HEADINGS DISPLAYED ON PATHFINDER®/ST MK2 ECDIS ARE TRUE HEAD- INGS, EXPRESSED IN DEGREES FROM NORTH. HIGH RESOLUTION TRACK THE MOST PRECISE REPRESENTATION OF THE SHIP’S TRACK AVAILABLE WITH PATHFIND-...
Page 22 THE SHIP’S TRACK COMPOSED OF TRACK POINTS RECORDED AT A USER-DEFINED INTER- VAL. REVOLUTIONS PER MINUTE RAYTHEON PART NUMBER ROUTE MONITORING THE OPERATIONAL NAVIGATIONAL ECDIS FUNCTION IN WHICH THE CHART INFORMATION IS EITHER DISPLAYED, UNDER CONTROL OF THE POSITIONING SENSOR INPUT, ACCORDING TO THE VESSEL’S PRESENT POSITION (EITHER IN TRUE MOTION)
Page 23 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Term Description WINDOW THE RECTANGULAR AREA IN WHICH MICROSOFT WINDOWS DISPLAYS PROGRAMS AND FILES. CROSS TRACK ERROR - THE PERPENDICULAR DISTANCE BETWEEN THE SHIP’S TRACK AND THE INTENDED COURSE. Edition: 30.MAR.2007 3655DOC020102...
Page 24 Operator Manual Table of Contents 3655DOC020102 Edition: 30.MAR.2007...
Page 25 ECDIS Operator Manual Raytheon Anschütz GmbH Germany INTRODUCTION ECDIS is an integrated software controlled navigation system with advanced electronic chart capabilities including: − route planing − route monitoring − ground monitoring It enables a navigator to conveniently do all navigational routines which are cur- rently done on paper charts.
Page 26 Operator Manual Types Of Charts ECDIS displays the type and scale of the displayed chart in the information panel. As you change the scale of the display, or center the display on other areas, the type of the chart being displayed may change, indicating that ECDIS is displaying a more appropriate chart.
Page 27 ECDIS Operator Manual Raytheon Anschütz GmbH Germany area, called the ENC database ; this shall only include ENC issued by Hydro- graphic Offices. Since the S57 (93/3) format is not suitable for data processing, the ECDIS shall convert the ENC into a different format (usually binary and more compact than S57(93/3)), called the SENC (System ENC) format.
Page 28 Operator Manual • RENCs do not deliver ENCs directly to ships. RENC customers are commercial chart data distributors who − in analogy to paper chart distribution − tailor individual sets of chart data for the special needs of a shipping company or a particular ship. To date, two RENCs −...
Page 29 ECDIS Operator Manual Raytheon Anschütz GmbH Germany A periodical update−service of the ARCS −seacharts is ensured by the manufacturer. A seachart in raster−data−format is divided into pixels and then stored. On the screen of the ECDIS these pixels will be displayed.
Page 30 Operator Manual 1−6 3655DOC020102 Edition: 30.MAR.2007...
Page 31 ECDIS Raytheon Anschütz GmbH Operator Manual Germany DISPLAY ORGANIZATION Menu Bar Tool Bar Cursor Information Panel see chapter 2.2 see chapter 2.4 see chapter 2.5 see chapter 2.7 Chart Area Status Bar see chapter 2.9 see chapter 2.8 Starting the ECDIS see chapter 2.1.1...
Page 32 Operator Manual FIRST STEPS IN OPERATION This chapter describes following basic functions Starting the ECDIS (see chapter 2.1.1) Terminating the ECDIS (see chapter 2.1.2) How to use the CURSOR (see chapter 2.1.3) How to handle the OPERATOR PANEL (see chapter 2.1.4) 2.1.1 Starting the ECDIS Positioned on front, lower right side.
Page 33 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.1.3 How to use the CURSOR When using the trackball, the cursor is moved by rolling the ball in the appropriate direction. left middle right Figure: 1−2 Trackball The trackball is equipped with three buttons.
Page 34 Operator Manual 2.1.4 Operator panel The operator panel is designed to execute the most commonly used functions. Signaling: Illumination of the keys and status indicators is switched on when the relevant action is activated. Figure: 1−3 Operator panel Figure: 1−4 Operator panel (for Radar and ECDIS operating) Status indicators, press toggle switch (7).
Page 35 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Anti−clutter filter ON/OFF, press the button. In case of heavy clutter developing on the Radar Video, the NSC computer creates a profile of the echo. Within this profile, the received echoes are monitored for a certain period (Scan−to−scan method). Irregular echoes are suppressed on the Radar Video.
Page 36 Operator Manual 2.1.5 ASCII Keyboard Techniques (Option) If available you have two options for activating a command from the keyboard: S Use keystroke combinations S Use the arrow keys Figure: 1−5 Example for a possible ASCII Keyboard equipment 2.1.5.1 Keystrokes Keystrokes are referenced in the manual as <Alt+X>...
Page 37 ECDIS Raytheon Anschütz GmbH Operator Manual Germany MENU BAR The ECDIS is a menu−driven program. To tell the ECDIS what to do, simply select a command from one of the ECDIS’s ten menus. The command name describes the function the ECDIS performs when you select it.
Page 38 Operator Manual Figure: 1−6 Menu Bar and pull−down menu 2.2.2 Menu Conventions The ECDIS, like other Windows programs, follows certain conventions when listing command names: Ellipsis (...) − Before it carries out the command, the ECDIS will prompt you for more information by displaying a dialog box. Check mark (√) −...
Page 39 ECDIS Raytheon Anschütz GmbH Operator Manual Germany The Screen Keyboards − ECDIS without Control Panel − This situation is recognized by the ECDIS software. On selecting an editing field, a context related keyboard (see Figure: 1−7) appears. The operation is effectied via trackball.
Page 40 Operator Manual USING THE WINDOWS AND DIALOG BOXES (see Annex−1 Windows and Cursor Symbols) 2.3.1 Closing a Menu If you decide that you do not want to access a command, you can close a menu. Closing a Menu with the Trackball Point to any part of the screen outside the menu and click.
Page 41 ECDIS Raytheon Anschütz GmbH Operator Manual Germany List Box Scroll Bar Command Buttons Figure: 1−9 Open Route Dialog Box Dialog boxes contain many different areas: option buttons, text boxes, scroll bars, check boxes, command buttons, and list boxes. You will use these areas to provide the information ECDIS needs to execute a command.
Page 42 Operator Manual 2.3.3 Moving in a Dialog Box Focus Rectangle Dotted Figure: 1−10 Save Event in a Dialog Box All dialog boxes contain a focus rectangle (dotted box) (focus rectangle) that appears either within an area or around its name, see Figure: 1−10 (above). The focus rectangle indicates which area is ”active”.
Page 43 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.3.4 Command Buttons Command buttons are the large rectangular buttons that either execute or cancel a command. The common command buttons are: ”OK,” which executes a command. ”Cancel,” which cancels a command without saving changes.
Page 44 Operator Manual 2.3.5 List Boxes and Scroll Bars List boxes display a list of choices, see Figure: 1−12. For example, when you choose the Open Route command, the Open Route dialog box appears. Scroll bar Figure: 1−12 Open Route List Box In the list box are the names of all the routes saved in the route list.
Page 45 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.3.5.2 Select an Item in a List Box with Keyboard 1) Press [Tab] until one of the items in the list box (usually the first item) is outlined with the focus rectangle (dotted box).
Page 46 Operator Manual 2.3.6 Text Boxes Text boxes allow you to enter text information, see Figure: 1−13. Some text boxes are multi−line text boxes. A scroll bar will appear next to the text box allowing you to scroll the text. Text Box Figure: 1−13 Text Boxes (View Area) Some text boxes have spinners next to them, see Figure: 1−14.
Page 47 ECDIS Raytheon Anschütz GmbH Operator Manual Germany cursor over the incorrect text (the text you select is highlighted). When you start typing new text, the selected text disappears. 2.3.6.2 Entering Information in a Text Box with Keyboard 1) Press [Tab] until the cursor appears in the text box.
Page 48 Operator Manual 2.3.7 Using Option Buttons Option buttons are the small circular buttons with labels beside them. Option buttons are either selected or cleared. Selected option buttons have dark centers; cleared option buttons have empty centers. Option buttons are usually mutually exclusive −...
Page 49 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.3.8 Using Check Boxes Check boxes are the small square boxes with labels beside them. Like option buttons, check boxes are either selected or cleared. When a check box is selected, an ”√” appears in the box. When a check box is cleared, the box is empty.
Page 50 Operator Manual 2.3.9 Latitude/ Longitude Boxes Latitude and Longitude boxes are 2 areas grouped together in a box: a Degrees/minutes text box, in which you enter degrees/minutes; Hemisphere Boxes Figure: 1−17 Latitude and Longitude Boxes 2.3.9.1 Specify a Coordinate Using the Trackball 1) Type the desired hemisphere.
Page 51 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.3.10 Plural Selection (Only possible with an external ASCII Keyboard (see chapter 2.1.5)) Example: If you want to copy more than one Object Group to Floppy. 1) Press and continue to hold down the the [Control] button.
Page 52 Operator Manual 2.3.10.1 Activate the Chart or Object Info window by clicking on middle button ECDIS is an ”object oriented” program. Pointing the cursor at an object or anywhere on the display and clicking the [middle] trackball button will cause a menu or dialog box to appear.
Page 53 Objects with special info (e.g. coastline or restricted area) activates the Send to Radar button in the Object Info window (see Figure: 1−22). To transfer e.g. the coastline to the Raytheon Radar you have to push the Send to Radar button. The coastline appears on the Radardisplay.
Page 54 Operator Manual Figure: 1−22 Object info and Send to Radar function Information in .tif format. Information in .txt format. Figure: 1−23 Special object infos 2−24 3655DOC020102 Edition: 30.MAR.2007...
Page 55 ECDIS Raytheon Anschütz GmbH Operator Manual Germany TOOL BAR The toolbar, Figure: 1−24, (below) provides quick access to many ECDIS‘s commands. Tool Bar Figure: 1−24 Previous View − Retrieves the view which was displayed prior to the current view. ECDIS is capable of remembering up to 30 views.
Page 56 Operator Manual Toggle ARCS/S57 10) Select Chart − Opens the Select Chart dialog box allowing you to select/view a different chart for the area. 11) MOB − Starts the Man Overboard process. Please see “Man Overboard”, chapter 7.1.10. 12) Standard Display, switches to Standard presentation. 13) OPTION.
Page 57 ECDIS Raytheon Anschütz GmbH Operator Manual Germany CURSOR SYMBOLS The cursors, Figure: 1−25 (below), located at the bottom left of your screen displays cursor information. The arrow on the screen is the cursor. You will use the cursor to perform most of the ECDIS’s functions including selecting menus, activating commands, and placing objects such as waypoints and markers in the display.
Page 58 Operator Manual SHIP SYMBOLS IN THE CHART AREA The ship symbol can be displayed as one of two symbols, a circle or a rectangular ship symbol. 2min 4min 6min This symbol adjusts to the scale of the chart. 1min 3min 5min This symbol does not adjust to the scale of...
Page 59 ECDIS Raytheon Anschütz GmbH Operator Manual Germany INFORMATION PANEL The ECDIS integrates information from the following shipboard sensors: GPS, ARPA Radar, Autopilot, Gyro, Echo Sounder, Speed Log, Engine RPM sensor, Rudder Position sensor, as well as optional secondary position sensors such as Loran C.
Page 60 Operator Manual Table 2−1 Standard Information Panels Call Outs and Description Call Out Description Chart Name − The name of the chart currently being displayed. View Scale − The current vertical scale of the display (in nautical miles) and the ratio between the size at which an object is displayed to its actual size.
Page 61 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Call Out Description Waypoint Next − Next waypoint no. and waypoint position Track Crs. − Display’s the current Track Course in [deg] from the previous waypoint to the next waypoint. UTC − shows the Co−ordinated Universal Time.
Page 62 • Switching from Steering to Course/Heading to Steer to Track − The course line is removed and ECDIS switches to Course Control if a valid active waypoint is selected and the data transmission between ECDIS and Autopilot is established (see Raytheon Autopilot Description NP2030, NP2035). Steering Mode Manual Control Steering is done manually.
Page 63 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Figure: 1−31 Information Panel Steer to Track Control Steering Mode Heading Control Defined by an electronic heading or course over ground (course made good), rate of turn and turning radius. Steering may be done manually or by the autopilot.
Page 64 Operator Manual 2.7.1.1 Alarm Messages The ECDIS is continually monitoring your route and navigation devices. When it finds a problem, it notifies you through alarms, warnings and information messages. These messages appear at the bottom of the information panel. Alarm messages are red, warning messages are orange, and the appearance of an information message depends on the display color selected.
Page 65 ECDIS Raytheon Anschütz GmbH Operator Manual Germany STATUS BAR CURSOR/CHART CENTER The boxes, Figure: 1−34 (below), located at the bottom of the display show a variety of cursor information. The left hand corner box always displays current cursor position while the middle corner box displays distance and bearing from the ship to the cursor location as well as the estimated time of arrival at that location assuming the ship’s current speed and a direct route to that location.
Page 66 Operator Manual CHART AREA The chart area is where the ECDIS displays ship, electronic charts symbol, and past tracks. It is also where you will enter waypoints/routes, set markers, and draw lines. The display has optional latitude/longitude grid lines which cover the entire world and are measured in degrees and minutes, with minutes expressed to the hundredth decimal.
Page 67 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 2.9.1.1 S57/3 (C−MAP93/3), IHO S−63 The CM93/3 Database is a seamless product. It consist of different scale layers, corresponding to as many navigational purposes of S57/3; each layer includes electronic charts with similar compilation scale, organized into a continuous coverage.
Page 68 Operator Manual 2.9.1.2 Track Plotter The ECDIS positions the ship on the electronic chart using information from the GPS or other positioning sensors. The ship symbol is directional and is oriented according to your gyro heading. An optional heading vector (an arrow) and search light (the cone shape) are displayed projecting from the bow of the ship symbol.
Page 69 ECDIS Raytheon Anschütz GmbH Operator Manual Germany MAIN MENU MAIN MENU COMMANDS If your ECDIS system is connected to a printer, you can print the display image. You should note that although the system keeps tracking the ship and processing all other sensor inputs, you cannot interact with ECDIS while printing takes place.
Page 70 Operator Manual 3.1.1 Printer Setup The Print Setup command enables you to select and configure your printer. NOTE When printing, ECDIS automatically reverses a black background to white. Procedure: Step 1 Select a Printer from the drop−down list Step 2 Select either a portrait or landscape paper orientation Step 3 Click on OK Step 1 Step 2...
Page 71 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Display Menu Step 1 Step 2 Step 3 Figure: 3−3 Print Options Dialog Box 3.1.3 Exit NOTE Do not exit from ECDIS by turning off the computer. This may cause to loose plot data or may damage your system! Procedure: Step 1 Select the Exit commando.
Page 72 Operator Manual 3−4 3655DOC020102 Edition: 30.MAR.2007...
Page 73 ECDIS Raytheon Anschütz GmbH Operator Manual Germany CHART MENU CHART MENU COMMANDS This menu is used for the chart management with following process functions: − Chart Info and Selection − Init the digitizer functions (option) − Chart License, Installation and Updates (see Annex−3 Charts)
Page 74: Arcs Chart
Operator Manual Charts Commands Function CM93/3 Installation or IHO S63 ARCS 4.10 4.11 S57 and Updates CM93/3 4.12 ARCS 4.13 4.14 Chart Server (Option) Rights Allows you to take over the “Chart Server Rights”. Chart Server Rights... (this command indicates the ECDIS status client) 4−2 3655DOC020102 Edition: 30.MAR.2007...
Page 75 ECDIS Raytheon Anschütz GmbH Operator Manual Germany GOTO ARCS OR GOTO S57 If the two chart types are stored on the ECDIS. Procedure: Step 1 Select Goto ARSC Chart or Goto S57 Chart Result: The ECDIS switch over to ARCS chart and inversely to S57 chart.
Page 76 Operator Manual INFO / SELECT Allows you to select and view the different charts you have available for the world or the currently displayed region. 4.3.1 Info / Select − S57 + CM93/3 − Chart Type Info about S57 and CM93/3 Chart Type The C−MAP 93/3 Database is a seamless product.
Page 77 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Procedure: (see Figure: 4−2) Step 1 Select Charts (menu bar) Step 2 Select Info / Select... The Dialog Box appears Step 3 Select S57 + CM93/3 Step 4 Point and click on the different chart types (i.e., Harbor, Coastal, etc.).
Page 78 Operator Manual Step 1 Goto ARCS Chart Info / Select... S57 + CM93/3 Chart Catalog Step 2 Digitization... " License " Installation " Updates " Step 3 Step 6 Step 4 Step 5 Figure: 4−2 Select Chart Dialog Box −S57 + CM93/3− Command Buttons: Click on View to view the chart and leave the dialog box View...
Page 79 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.3.2 Info / Select − DNC − Chart Type Info about DNC Chart Type The DNC Database is a seamless product. It consist of different scale layers, corresponding to as many navigational purposes of DNC; each layer includes electronic charts with similar compilation scale, organized into a continuous coverage.
Page 80 Operator Manual Step 1 Goto ARCS Chart Info / Select... Step 2 S57 + CM93/3 Chart Catalog Digitization... " License " Installation " Updates " Step 3 Step 4 Step 5 Figure: 4−3 Select Chart Dialog Box −DNC− Command Buttons: Click on View to view the chart and leave the dialog box View open.
Page 81 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.3.3 Info / Select − ARCS − Chart Type Info about ARCS Chart Type ARCS means Admiralty Raster Chart Service. This institution scans seacharts of the British Admiralty (BA) in a raster−data−format. Such a manner scanned seacharts are available on CD−ROM as Raster Nautical Charts (RNCs) with a...
Page 82 Operator Manual Procedure: Step 1 Select Charts (menu bar) Step 2 Select Info / Select... The Dialog Box appears Step 3 Select ARCS Step 1 Goto ARCS Chart Info / Select... Step 2 S57 + CM93/3 Chart Catalog Digitization... " License "...
Page 83 ECDIS Raytheon Anschütz GmbH Operator Manual Germany ARCS Selection: All installed charts S Shows all installed charts in the List Box Select by chart name S Select chart by name. Example: Type−in the name of selected sea−area, for example “oslo”.
Page 84 Operator Manual Command Buttons: Click on View to view the chart and leave the dialog box View open. Click on View and Close to view the chart and close the View and Close dialog box. 4−12 3655DOC020102 Edition: 30.MAR.2007...
Page 85 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.3.4 S57 and CM93/3 Chart Catalog This menu function allows you to view and verify the S57 and CM93/3 charts. Procedure: (see Figure: 4−5 ) Step 1 Select the Database, e.g. DE. The left list box displays the cell names of of the Database DE.
Page 86 Operator Manual Figure: 4−6 Update Status of a Database Click on Export List to save the content of the left list box as a Export List text file on a floppy. If no disk is available Figure: 4−7 Export List 4−14 3655DOC020102 Edition: 30.MAR.2007...
Page 87 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Click on Goto Cell in order to center the displayed chart the Goto Cell selected cell. Click on Close for closing this window. Close 4−15 Edition: 30.MAR.2007 3655DOC020102...
Page 88 Operator Manual DIGITIZATION (OPTION) Following overlapping functionalities are possible in combination with the ECDIS Chart Digitization Calcomp Drawing Board III: • Route Planning Using the puck at the Chart Digitization Station, the desired waypoints of a route are marked on the paper sea chart, transmitted to the ECDIS and (route processing see chapter 8.2.).
Page 89 ECDIS Raytheon Anschütz GmbH Operator Manual Germany detailed information Step 1 Step 2 Step 3 Enter New Alignment (see chapter 4.4.2 Step 2 Step 4 Figure: 4−8 How to use the digitization functionality 4−17 Edition: 30.MAR.2007 3655DOC020102...
Page 90 Operator Manual 4.4.1 Chart Description (dialog box detailed information) Figure: 4−9 Chart Description dialog box 1, Chart Title The Chart Title is the title of the paper chart. The Chart Title can be obtained directly from the chart title of the paper chart, or an appropriate title selected by the operator may be entered in the Chart Title field.
Page 91 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4, Standard Parallel / Standard Meridian Based on the projection method selected, either the Standard Parallel or the Standard Meridian label will be displayed next to the input box for appropriate latitude or longitude respectfully.
Page 92 Operator Manual 8, Chart Name The Chart Name is the actual file name that the chart description information is saved in. The Chart Name field contains a pull−down list containing one option called <untitled> and a list of any previously saved chart description is being entered for the first time.
Page 93 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.4.2 Chart Alignment (dialog box detailed information) The chart alignment process must be accomplished each time the paper chart is placed on the digitizing table. The paper chart must be aligned each time that the chart is placed on the digitizing table.
Page 94 Operator Manual Second Alignment Point Using the puck at the digitizing table, place the cross hairs over the lower most and left most major latitude and longitude crossing point. The longitude of this second alignment point must be the same longitude as the first alignment point. Left click the puck.
Page 95 ECDIS Raytheon Anschütz GmbH Operator Manual Germany LICENSE ADMINISTRATION FOR CM93/3 LICENSES (see Annex−6 Charts S57 License) CM93/3 Description 93/3 licences for 93/3 charts are obtained from C−MAP Norway AS and are available for Worldwide Coverage, one or more Zones, one or more Areas, or single charts.
Page 96 Operator Manual 4.5.1 Add License manually Add License manually allows a license to be entered manually. Procedure: (see Figure: 4−11) Step 1 Select Charts (menu bar). Step 2 Select CM93/3 License..The Dialog Box appears. Step 3 Select Add license manually. Step 4 Enter the License key (16 characters) via OSK Step 5 The procedure must be confirmed via the Add license key Step 6 Select a Zone or a Zone Area.
Page 97 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.5.2 Expired Licenses Expired Licenses lists all C−MAP Licenses that will expire by a certain date in the future. Procedure: (see Figure: 4−12) Step 1 and Step 2 (see Figure: 4−11) Step 3 Select Expired licenses.
Page 98 Operator Manual 4.5.3 Licenses List Within this administration application, all the licenses that are still valid are listed and displayed with the following information. − valid to (e.g. 10−2002) − Zone/Area − 16 character license code Procedure: (see Figure: 4−13) Step 1 and Step 2 (see Figure: 4−11 ) Step 3 Select License list.
Page 99 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.5.4 License order per position This function enables sea areas to be chosen by cursor action across areas. Procedure: (see Figure: 4−14) Step 1 and Step 2 (see Figure: 4−11 ) Step 3 Select Order per position by using the Trackball (mouse) To select the desired area, at least three coordinates must be set by action.
Page 100 Operator Manual Command buttons in the Coordinates per mouse click area allows a cursor position to be deleted Delete list item deletes all entries from the list Clear list specifies the licensing extent for the chart type in which the Zone Area selected area is located.
Page 101 ECDIS Raytheon Anschütz GmbH Operator Manual Germany ECDIS Save to file a:\RaytheonAnschütz 0009.usr? Step 1 This window displays the imminent data transfer to the target directory a: and the name of the license file (e.g. RaytheonAnschütz...). Step 1 The action is executed by pressing the Yes key.
Page 102 Operator Manual 4.5.5 License order per route In this connection, the license selection is made via a route that has already been planned. For example, the route was planned on an ARCS chart and should be run over a CM93/3 chart. The desired route is projected to the exact position in the CM93/3 background chart upon selection.
Page 103 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Command buttons in Select route from list: area All known routes are displayed in this List Box. The first route is automatically proposed as the default route . The route selection is made via the cursor or via the scroll bar.
Page 104 Operator Manual This window displays the imminent file transfer to the target directory a: and the name of the license file (e.g. Raytheon Anschütz...). Step 1 The action is executed by pressing the Yes key. Send this floppy to the chart manufacturer C−MAP.
Page 105 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.5.6 Add license from file This function reads the C−MAP license key for the requested area into the ECDIS System. The license files are distributed via floppy or CD via C−MAP. The license files are automatically included in the C−MAP data structure and release...
Page 106 Operator Manual Command button Within the List Box License file list: all licenses are overlaid when Add licenses the key is pressed. At the same time, the licenses are processed within the program. The desired areas are released. 4−34 3655DOC020102 Edition: 30.MAR.2007...
Page 107 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.5.7 Select License order manually Within this function a chart list, comprising different Zones and Areas can be merged together and transferred to C−MAP as a license order. Selected Areas of a Zone (e.g. 3) are removed from the License order list: when the entire Zone (3) is selected .
Page 108 Operator Manual Command button inserts the selected Zone/Areas from the List Box. Add to list Action can also be executed by clicking the desired Zones/Areas with the cursor. deletes the selected names from the List Box Remove from list deletes all entries from the List Box in sequence. deletes all entries from the List Box Clear list creates a license file from the List Box...
Page 109 ECDIS Raytheon Anschütz GmbH Operator Manual Germany License Administration for IHO S63..License (see Annex−6.1 Charts IHO S−63) 4.6.1 User Permit Procedure: (see Figure: 4−18) Step 1 Select Chart (menu bar). Step 2 Select IHO S63 License..Step 3 Select User Permit.
Page 110 Operator Manual 4.6.2 Licenses list Procedure: (see Figure: 4−19) Step 1 and Step 2 (see Figure: 4−18) Step 3 Select Licenses list. Licenses can be renewed and the status of the current license list reviewed Status information Step 3 Step 3 Figure: 4−19 License dialog box, Licenses list selected Command Buttons: Delete the selected Cell License...
Page 111 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.6.3 Add Licenses from file Procedure: (see Figure: 4−20) Step 1 and Step 2 (see Figure: 4−18) Step 3 Select Add Licenses from file. Licenses can be added automatically by choosing Add licenses from file and pointing to the ENC.PMT file received from IHO S63.
Page 112 Operator Manual 4.6.4 Product List Procedure: (see Figure: 4−21) Step 1 and Step 2 (see Figure: 4−18) Step 3 Select Product list. The product list shows all available IHO S63 charts. If you want to order a new license please note the Cell code and contact IHO S63 Service.
Page 113 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.6.5 Import Product list If you got a CD or Floppy with updates or new chart cells IHO S63 include a second data file with a new product list . Procedure: (see Figure: 4−22) Step 1 and Step 2 (see Figure: 4−18)
Page 114 Operator Manual LICENSE ADMINISTRATION FOR ARCS LICENSE Procedure: (see Figure: 4−23) Step 1 Select Chart (menu bar). Step 2 Select ARCS License..Step 3 If you have no Security Key (software dongle) loaded before the License Administrator dialog box appears at first. Follow the text items in the dialog box.
Page 115 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Command Buttons: Shows the License Information. License Info In this case the user permit (data file) can be copied automatically on a floppy disk. Figure: 4−24 ARCS License Information Select this button when you get a new License or an Load Permit file License Update per floppy disk.
Page 116 Operator Manual Select this button when you get a new License or an Add Permit License Update per phone or fax. Figure: 4−26 Add Permit 4−44 3655DOC020102 Edition: 30.MAR.2007...
Page 117 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Select the relevant chart before and click on the Remove Remove Permit Permit button. Practice: If you got a license update, sometime a chart permit cancelled and replaced by another chart number. Read SCHEDULE A AMENDMENT−CHART SUPPLY DETAILS from the ADMIRALTY RASTER CHART SERVICE.
Page 118 Operator Manual CM93/3 or IHO S63 Installation..(see Annex 6.2 and 6.3 Installation S57 ... ARCS) The electronic charts belonging to the two most general “navigational purposes” (i.e. the so−called background charts) are stored on the C−MAP 93/3 Database CD−ROM in non−encrypted form, meaning that can be freely accessed and displayed on the ECDIS, before the user actually buys licenses for the charts.
Page 119 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Step 1 Goto ARCS Chart Info / Select... S57 + CM93/3 Chart Catalog Digitization... " License " S57 and CM93/3 Installation.. ARCS Installation.. Step 3 Installation " DNC Installation.. Step 2 Updates "...
Page 120 Operator Manual The process by which the user chooses which chart he Install Database wants to access (i.e. which licenses he needs to buy) is called Install Database. To install a database, place CD into the CD drive and press the Install Database button. The installation will be take 3 to 5 minutes.
Page 121 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Dialog Box Area: Import and Convert S57 data Apply executes an action Exit the dialogue box is faded out Cancel a current procedure is aborted Import and Convert unencrypted S57 data files. Insert the data CD into the CD drive and select Import unencrypted.
Page 122 Operator Manual w There are two options to select cells from CD Automatical selection or manual selection. Automatic selection In this case the program recognizes and selects all cells in a selected directory (subdirectories included). These cells will be imported. Procedure: (see Figure: 4−31) Step 1, Step 2, Step 3 (see Figure: 4−29).
Page 123 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Manual selection In this case only the manually selected cells will be imported (without subdirectories). Procedure: (see Figure: 4−32) Step 1, Step 2, Step 3 (see Figure: 4−29). Step 4 Select the folder S57 (e.g. US).
Page 124 Operator Manual • Starting the conversion process Procedure: (see Figure: 4−33) Step 1 Select the Execute button The dialog box File conversion in progress appears and shows the processing. Step 1 Figure: 4−33 Conversion display 4−52 3655DOC020102 Edition: 30.MAR.2007...
Page 125 ECDIS Raytheon Anschütz GmbH Operator Manual Germany The conversion process ends with following dialog box (see Figure: 4−34). Step 1 Select OK. Step 2 Step 1 Figure: 4−34 Import of data completed If you want to see the complete installation information, then select View Log (Step 2).
Page 126 Operator Manual Import and Convert S57 data Import IHO S63 .. Insert the data CD into the CD drive and select Import IHO S−63. The following dialog will be displayed. Select the CD drive and the directory where the S57 data is stored. country codes e.g.
Page 127 ECDIS Raytheon Anschütz GmbH Operator Manual Germany • There are two options to select cells from CD Automatical selection or manual selection Automatic selection In this case the program recognizes and selects all cells in a selected directory and subdirectories.
Page 128 Operator Manual Manual selection In this case only the manual selected cells will be imported (without subdirectories). Procedure: (see Figure: 4−38) Step 1, Step 2, Step 3 (see Figure: 4−29). Step 4 Select the cell folder containing the datafile you wish to convert. Normally, the subdirectory number is 0.
Page 129 ECDIS Raytheon Anschütz GmbH Operator Manual Germany • Starting the conversion process Procedure: (see Figure: 4−39) Step 1 Select the Execute button The dialog box File conversion in progress appears and shows the processing. Step 1 Figure: 4−39 Conversion display 4−57...
Page 130 Operator Manual The conversion process ends with following dialog box (see Figure: 4−40). Step 1 Select OK. Step 1 Step 2 Figure: 4−40 Import of data completed If you want to see the complete installation information, then select View Log (Step 2).
Page 131 ECDIS Raytheon Anschütz GmbH Operator Manual Germany ARCS Installation (see Annex−6.3 S57.. ARCS Charts Installation) Procedure: (see Figure: 4−42) Step 1 Select Charts (menu bar) Step 2 Select Installation Step 3 Select ARCS Installation. The volume list shows already installed zones.
Page 132 Operator Manual Click on the button, the installation process starts Install Volume Figure: 4−43 ARCS Installation process Recommendation If available, the provided Update should be installed now. The update process is also initiated by clicking on the Install Volume button (see chapter 4.12). Click on this button if you want to remove the selected Remove Volume volume.
Page 133 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.10 DNC Installation (see Annex−6−4 DNC Installation) Procedure: (see Figure: 4−45) Step 1 Select Charts (menu bar) Step 2 Select Installation Step 3 Select DNC The volume list shows already installed zones. Step 1 Goto ARCS Chart Info / Select...
Page 134 Operator Manual The process by which the user chooses which chart he Install Database wants to access is called Install Database. To install a database, place CD into the CD drive click on the Install Database button and follow instructions, see following dialog.
Page 135 ECDIS Raytheon Anschütz GmbH Operator Manual Germany After correct selection of DNC path, the following dialog will displayed automatically. The dialog shows the progress of verification. This process takes time. Figure: 4−47 Progress of Verification is running If the verification is done, a summary will be displayed in the window. In case of errors or warnings the corresponding messages will be shown in the report window.
Page 136 Operator Manual Procedure: Step 1 Press the button. The copying process starts automatically. Step 2 After copying process is over, the database will be registered. Press OK and the Installation of the DNC database is finished. Close Step 1 Step 1 Figure: 4−49 Database registered Procedure: (see Figure: 4−50) Step 1, Step 2, Step 3 (see Figure: 4−45 ).
Page 137 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Priority If you want to modify the priority, select the database Down you will have displayed first or last and click Priority “Up” or “Down”. To remove a selected database, click on “Remove Data Remove Database base”.
Page 138 Operator Manual 4.11 S57 and CM93/3 Updates (see Annex−7 Charts Update S57.. ARCS) Procedure: (see Figure: 4−51) Step 1 Select Charts (menu bar). Step 2 Select S57 Updates. The Dialog Box appears. Step 3 Select the chart type Step 1 Goto ARCS Chart Info / Select...
Page 139 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Command Buttons: Auto Updating Auto Updating is only supported for C−MAP databases Auto Updating presents three download procedures. Load All Will load and install all available updates for the licensed areas from the C−MAP server directly.
Page 140 Operator Manual The user can check the updates and then expand the update on the various objects in the chart. The chart will automatically pan and highlight the location of the object as shown above. SemAuto Updating Used for S57 charts. Click on the SemiAuto Updating, the following dialog box appears.
Page 141 ECDIS Raytheon Anschütz GmbH Operator Manual Germany Review Updates Clicking on the “Review Updates”, the following dialog box appears. Now you can review the updates applied listed by Auto Updating or by Semi Auto Updating. Inside the Update Log window all updates are listed and stored with their name, actual status, update version number and transfer date.
Page 142 Operator Manual Figure: 4−53 Updating Log Review Updates 4−70 3655DOC020102 Edition: 30.MAR.2007...
Page 143 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.12 ARCS Update (see Annex−7 S57.. ARCS) Procedure: (see Figure: 4−54) Step 1 Select Charts (menu bar). Step 2 Select Updates. Step 3 Select ARCS Updates. The volume list shows already installed zones.
Page 144 Operator Manual Figure: 4−54 ARCS Installation and Update Click on the button, the installation process starts Install Volume (see Figure: 4−55). The ECDIS system checks the update edition. If the edition is older than the actual ECDIS edition the following window appears. update in progress Figure: 4−55 ARCS update...
Page 145 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.12.1 ARCS Updates indication ARCS updates can be displayed directly via the chart concerned or via the Info/Select function. ARCS Updates within a chart Within an ARCS chart all updates are entered and selected automatically.
Page 146 Operator Manual ARCS Updates within the Info/Select. Dialogs Procedure: (see Figure: 4−58) Step 1 Select Info / Select..Step 2 Select ARCS Main Charts S−57 Options Goto ARCS Chart Info / Select... Step 1 S57 + CM93/3 Chart Catalog Digitization...
Page 147 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.13 DNC Update (see Annex−7−1and 7−2 Charts Update DNC) Procedure: (see Figure: 4−59) Step 1 Select Charts (menu bar). Step 2 Select Updates. Step 3 Select DNC Updates. The volume list shows already installed zones.
Page 148 Operator Manual If a folder with VDUs is selected, the VDU files will be shown automatically in the window Available Updates: Select the Update you want to install from this window and select the corre- sponding database from DNC DATABASE window. Then click on the Apply Up- date button.
Page 149 ECDIS Raytheon Anschütz GmbH Operator Manual Germany The result of the updates installation process will be shown in the Processing Update window. Figure: 4−62 Execute DNC Update If you want to see what happens. Procedure: (see Figure: 4−63) Step 1 Select Show Review Update...
Page 150 Operator Manual Looking for one update (e.g. Buoy) in the chart? Procedure: (see Figure: 4−63) Step 1 Select e.g. on Relocate Buoy NT from 34.345−77.63 to 34.3333 Step 2 Select Highlight The chart will be centered automatically (to the object) and a circle will be drawn around the object.
Page 151 ECDIS Raytheon Anschütz GmbH Operator Manual Germany 4.14 Chart Server Rights (Option) This functionality is only possible in connection with a navigation system containing at least two ECDIS units. Depending on the system configuration, one ECDIS can be given Server or...
Page 152 Operator Manual 4−80 3655DOC020102 Edition: 30.MAR.2007...
Page 153 ECDIS Operator Manual Raytheon Anschütz GmbH Germany OPTIONS MENU This menu is used to select special chart display adjustments for the selected chart type (chart type selection see chapter 4.3). These adjustments are regulated by the chart type. OPTIONS MENU ARCS...
Page 154 Operator Manual 5.1.1 Chart Information ARCS Chart information shows all chart specific information generated the ARCS chart manufacturer at digitalization of the chart. Procedure: (see Figure: 1−2 ) Step 1 Select ARCS Option (see Figure: 1−1) Step 2 Select Chart Information... The Dialog Box appears Figure: 1−2 Chart Information..
Page 155 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Chart/ panel.. information group display Figure: 1−3 View Chart Notes 5.1.3 Notices to Mariners.. and Warnings Within these menu entries special marine or warning messages can be called up which can be read in the dialogue box.
Page 156 Operator Manual OPTIONS MENU FOR S57 The option menu contains the following commands; Presentation Library " Add/Delete Mariners Objects.. Manual Updates Legend View Log File " Overlays " C−Map 93v3 Chart Scale " Symbol Type " Figure: 1−4 S57 Options Menu Table 5−2 Overview S57 Options S57 and 93/3 Function...
Page 157 ECDIS Operator Manual Raytheon Anschütz GmbH Germany S57 and 93/3 Function Options Commands 5.2.7 CM93/3 Chart Set the CM93/3 chart scale mechanism: Scale − automatic size (−Normal,−Medium,−High), switching to appropriate navigation purpose while zooming − A−G, Z zooming on one defined navigation purpose (e.g.
Page 158 Operator Manual 5.2.1.2 Test This test function is designed to check the symbol size “Buoys and Beacons”. A Black square is displayed at positions of buoys and beacons. Ensure that the dimension of each square is not less than 5x5mm. 5.2.1.3 C−Map ..
Page 159 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Cancel Step 2 Step 3 Step 4 Step 5 Figure: 1−6 Information window Problem solution If you cannot recognize any line adjust more Contrast / Brightness. If the picture has not improved, please contact the Service for changing the ECDIS Display.
Page 160 Operator Manual 5.2.2 Add/Delete Mariners Objects This function enables the user to manually add marine objects like buoys ), wrecks etc. into the currently loaded chart. The entries are saved and can later be worked on (deleted, moved etc.). NOTE Mariners Object can only be displayed when the Overlay is switched to Full Display (see chapter 5.2.6 Manual entries are logged within the View update Log File function (see 5.2.5)
Page 161 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 6 Select Place Objects. The object can now be placed on the chart via the cursor or, in case of manual input, by entering the Specify Location value (Latitude and Longitude). select object...
Page 162 Operator Manual Step 7 Figure: 1−8 Edit Manual Objects dialog box By pressing the Close key, the cursor is released for positioning the buoy . The positioned buoy is displayed within the light cone code within the chart. Figure: 1−9 Add a special object info 5−10 3655DOC020102...
Page 163 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Command Buttons: Undo Edit This function is in connection with their Attributes selected. If the Undo Edit button is operated during or after a attribute specification, the previous attribute specification in the List and the placed Object in the chart is deleted.
Page 164 Operator Manual 5.2.3 Manual Updates This menu item is designed for the official manual chart correction (equivalent to Notes to Mariners for papercharts). Chart corrections are announced either from the chart manufacturer or regularly issued Notices to Mariners. The entries are saved for the sea chart and cannot be visibly deleted from their position.
Page 165 ECDIS Operator Manual Raytheon Anschütz GmbH Germany displayed (e.g. scale maximum 1000 and scale minimum 500000). Step 6 Select Place Objects. The object can now be placed on the chart via the cursor or, in case of manual input, by entering the Specify Location value (Latitude and Longitude).
Page 166 Operator Manual Step 7 Figure: 1−12 Edit Manual Objects dialog box By pressing the Close key, the cursor is released for positioning the buoy . The positioned buoy is displayed within the light cone code within the chart. Figure: 1−13 Add a special object info 5−14 3655DOC020102...
Page 167 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Command Buttons: Undo Edit This function is in connection with their Attributes selected. If the Undo Edit button is operated during or after a attribute specification, the previous attribute specification in the List and the placed Object in the chart is deleted.
Page 168 Operator Manual Official chart objects cannot be visibly deleted from their place, they get this */* symbol as an overlay marker. This symbol will marked Objects as manually deleted on the current chart layer. Move Objects On actuating this button you can select the object (using the appropriate symbols like “...
Page 169 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Chart Viewer: S57 charts are made up of several scale ranges. The information extent of the scale ranges varies and is determined via the penetration depth (zoom in/out). If an object is now deleted or inserted in a scale range, this action is restricted only to this scale range.
Page 170 Operator Manual 5.2.4 Legend... This menu feature opens an Info Window for the currently loaded chart. The Info Window shows all characteristic data specific for S57 charts. Procedure: (see Figure: 1−16) Step 1 Select S−57 Options (see Figure: 1−1). Step 2 Select Legend. Figure: 1−16 Legend S57 chart 5−18 3655DOC020102...
Page 171 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 5.2.5 View Log File The menu item View Log File logs all update activities which have been carried out on an S57 chart. Procedure: (see Figure: 1−17) Step 1 Select S57 Options (see Figure: 1−1).
Page 172 Operator Manual Click on Export, to create a file with the contents of the Log Export List. For this procedure a formatted 3,5” disk must first of all be inserted in the drive. 5.2.6 Overlays This menu item allows the user to select the SENC information (System Electronic Navigational Chart) to be displayed on the current chart.
Page 173 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Standard Display to be displayed when the chart is first displayed by ECDIS, consisting of: 1 the Base Display plus; 2 drying line; 3 boundaries of fairways, channels, etc.; 4 visual and radar conspicuous features;...
Page 174 Operator Manual The Safety depth is used to distinguish safe and dangerous spot soundings. The value of the Safety depth can be linked to the Safety contour by using the corresponding check box. Commond Button: Save settings as “ User defined Display” The button is used to store all currently made settings in this dialogue for the User defined Display, which can be recalled by using the menu as described above.
Page 175 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 5.2.7 CMAP 93/3 Chart Scale This menu function allows the user to display charts in Automatic mode Normal, Medium or High or at fixed navigational purpose (e.g. harbour, approach). Procedure: (see Figure: 1−20) Step 1 Select S57 Options (see Figure: 1−1).
Page 176 Operator Manual 5.2.8 Symbols Type Using this menu function, buoys and beacons can be displayed either as Simplified Symbols according to IHO−paper S52. Procedure: (see Figure: 1−21) Step 1 Select S−57 Options (see Figure: 1−1). Step 2 Select Symbol Type. The Dialog Box appears. Simplified Symbols selected Traditional Symbols selected Figure: 1−21...
Page 177 ECDIS Operator Manual Raytheon Anschütz GmbH Germany OPTIONS MENU FOR DNC The option menu contains the following commands: Add/Delete Mariners Objects... Manual Updates... Legend... View Log File " Overlays " Symbol Type " Figure: 1−22 DNC Options Table 5−3 Overview DNC Options...
Page 178 Operator Manual 5.3.1 Add/Delete Mariners Objects This function enables the user to manually add marine objects like buoys ), wrecks etc. into the currently loaded chart. The entries are saved and can later be worked on (deleted, moved etc.). Manual entries are logged within the View update Log File function (see chapter 5.2.5) as Mariners Objects and in the text box from the Object info window.
Page 179 ECDIS Operator Manual Raytheon Anschütz GmbH Germany select object Attributes select the Object Step 3 Step 5 Step 6 Step 4 Step 5.1 define type select attribute specify the for this object descriptions object for this object via Attributes scroll bar Figure: 1−23...
Page 180 Operator Manual Step 7 Figure: 1−24 Edit Manual Objects dialogue box By pressing the Close key, the cursor is released for positioning the buoy . The positioned buoy is displayed within the light cone code within the chart. Figure: 1−25 Add a special object info Command Buttons: Undo Edit...
Page 181 ECDIS Operator Manual Raytheon Anschütz GmbH Germany specification, the previously attribute specification in the List and the placed Object in the chart is deleted. Add Objects This function is applied in connection with Type of object Line or Area selected. The line or area planning must be finished by clicking on the Add Object button.
Page 182 Operator Manual 5.3.2 Manual Updates This menu item is designed for the official manual chart correction (equivalent to Notes to Mariners for papercharts). Chart corrections are announced either from the chart manufacturer or regularly issued Notices to Mariners. The entries are saved for the sea chart and cannot be visible deleted from their position.
Page 183 ECDIS Operator Manual Raytheon Anschütz GmbH Germany displayed (e.g. scale maximum 1000 and scale minimum 500000). Step 6 Select Place Objects. The object can now be placed on the chart via the cursor or, in case of manual input, by entering the Specify Location value (Latitude and Longitude).
Page 184 Operator Manual Step 7 Figure: 1−28 Edit Manual Objects dialogue box By pressing the Close key, the cursor is released for positioning the buoy . The positioned buoy is displayed within the light cone code within the chart. Figure: 1−29 Add a special object info Command Buttons: Undo Edit...
Page 185 ECDIS Operator Manual Raytheon Anschütz GmbH Germany specification, the previous attribute specification in the List and the placed Object in the chart is deleted. Add Objects This function is applied in connection with Type of object Line or Area selected. The line or area planning must be finished by clicking on the Add Object button.
Page 186 Operator Manual Move Objects On actuating this button you can select the object (using the appropriate symbols like “ / “ and “ “ ). Procedure: (see Figure: 1−31) Step 1 Select the desired object. The Object Info window appears. Step 2 Select the Object Attribute.
Page 187 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Chart Viewer: DNC charts are made up of several scale ranges. The information extent of the scale ranges varies and is determined via the penetration depth (zoom in/out). If an object is now deleted or inserted in a scale range, this action is restricted only to this scale range.
Page 188 Operator Manual 5.3.3 Legend... This menu feature opens an Info Window for the currently loaded chart. The Info Window shows all characteristic data specific for DNC charts. Procedure: (see Figure: 1−32) Step 1 Select DNC Options (see Figure: 1−1). Step 2 Select Legend. If you have a database (DNC) If you have and TOD’s loaded, you can...
Page 189 ECDIS Operator Manual Raytheon Anschütz GmbH Germany This Warning will be displayed if the coefficients for the World Magnetic Model are out of date (see Section see chapter 9.1.9 Figure: 1−33 Magnetic Verification 5−37 Edition: 30.MAR.2007 3655DOC020102...
Page 190 Operator Manual 5.3.4 View Log File The menu item View Log File logs all update activities which have been carried out on an DNC chart. Procedure: (see Figure: 1−34) Step 1 Select DNC Options (see Figure: 1−1). Step 2 Select View Log File. The Dialog Box appears. Respective Log File can be viewed directly or, if a printer is connected, be printed.
Page 191 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 5.3.5 Overlays This menu item allows the user to select the SENC information (System Electronic Navigational Chart) to be displayed on the current chart. Procedure: (see Figure: 1−35 and Figure: 1−36) Step 1 Select DNC Options (see Figure: 1−1).
Page 192 Operator Manual 6 chart scale boundaries; 7 indication of cautionary notes; Full Display all other information which is not part of the Standard Display, for example: 1 spot soundings; 2 submarine cables and pipelines; 3 ferry routes; 4 contents of cautionary notes; 5 graticule;...
Page 193 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Figure: 1−36 Option Menu 5−41 Edition: 30.MAR.2007 3655DOC020102...
Page 194 Operator Manual 5.3.6 Symbols Type Using this menu function, buoys and beacons can be displayed either as Simplified Symbols according to IHO−paper S52. Procedure: (see Figure: 1−37) Step 1 Select S−57 Options (see Figure: 1−1). Step 2 Select Symbol Type. The Dialog Box appears. Simplified Symbols selected Traditional Symbols selected Figure: 1−37...
Page 195 ECDIS Operator Manual Raytheon Anschütz GmbH Germany DISPLAY MENU The ECDIS display is defined by the two values for scale and center. Scale is the distance from the top to the bottom of the display and can be any value from 1 NM to 3999 NM.
Page 196 Operator Manual Table 6−1 Overview Display Menu Display Commands Function 6.1.1.1 Zoom In Allows you to select an area of the display on which to zoom−in. En- larging the selected area so that it fills the display. 6.1.1.2 Zoom Out Allows the user to specify the degree to zoom out the display.
Page 197 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 6.1.1 The Zoom Feature The Zoom feature enables you to quickly change the scale of the display. The zoom activities are displaying as second information in the Information Panel (see Figure: 1−2). Figure: 1−2 Information Panel...
Page 198 Operator Manual NOTE Make sure to hold down the [Enter] button until the box is drawn to the size you desire. If you have drawn the box to the desired size, but want to reposition it, before you release the [Enter] button, hold down [Shift] and move the cursor until the box is in the desired position.
Page 199 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 6.1.1.2 Zooming Out Use the Zoom Out command from the Toolbox to quickly change the display scale from its current value to one that is one−and−one−half times (150 %) larger. You can use the command repeatedly until the scale reaches 6,550 NM.
Page 200 Operator Manual 6.1.2 Default Scale Display the current chart at the default scale. 6.1.3 Largest Scale Load and display the chart with the largest available scale at the current display position. 6.1.4 Scale and Center Command When you want to center the display on a specific location or change the scale to a particular value, use the Scale and Center command.
Page 201 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 3 Step 3 Step 3 Step 3 Step 3 Step 4 Figure: 1−5 Scale and Center Dialog Box 6.1.5 View Area Command One of the fastest ways to reposition the display is to use ECDIS’s View Area feature.
Page 202 Operator Manual Procedure: Step 1 Select the display menu (see Figure: 1−1). Step 2 Select View Area. The dialog box appears. The names of all the areas you have saved appear in the list box. When you select an area name, its scale and center are displayed at the bottom of the dialog box.
Page 203 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 6.1.5.2 Open an Area Procedure: Step 1 Select the display menu (see Figure: 1−1). Step 2 Select View Area. The dialog box appears. Step 3 Click on the name of the area you want to open. The area name appears in the text box and its scale and center appear below the list box.
Page 204 Operator Manual 6.1.6 Keeping Your Ship in the Display Area (Ship Auto Center) When you turn on the Auto Center feature, ECDIS automatically moves the displayed chart area so that your ship is always in view. When your ship reaches a point near the edge of the display (that you determine), ECDIS automatically recalculates the center of the display, then re−centers it so that your ship is at its center.
Page 205 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 6.1.7 True Scale Icon The rectangular ship symbol is not a fixed size symbol but adjusts to the scale of the chart. This symbol is used at all times except when ECDIS is not receiving navigational information or when the ship cannot be drawn to scale.
Page 206 Operator Manual 6.1.9 Turning ON/OFF the Toolbar To turn on/off the toolbar, select the Toolbar command from the Display menu. 6.1.10 Status Bar Toggle the status bar on/off, select the Status Bar from the Display menu. 6.1.11 Information Panel ECDIS allows you to control the display of e.g. 4 different types of the information panel.
Page 207 ECDIS Operator Manual Raytheon Anschütz GmbH Germany SHIP MENU SHIP MENU COMMANDS ARCS Options Display Ship Routes Step 1 Ship Info... Nav Device Selection Position Monitoring Dead Reckon... Position Offset... Own Ship Vector... Mark at Ship Anchor Watch... Guard Zone ...
Page 208 Operator Manual Ship Command Function 7.1.6 Own Ship Turn on or off course vector, heading vector or antigrounding search- Vector..light. 7.1.7 Mark at Ship Place a ship mark with a time level at the ship’s position. 7.1.8 Anchor Allows Pathfinder®/ST ECDIS to monitor the drift of the ship while Watch..
Page 209 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Figure: 7−2 Ship Info dialog box 7−3 Edition: 30.MAR.2007 3655DOC020102...
Page 210 Operator Manual 7.1.2 Selecting the Navigation Devices (only available in the Service Mode) Use the Nav Device Selection command to select from the type(s) of navigation positioning device(s) you have integrated with ECDIS: GPS, Loran−C, Transit or Syledis (column “Use”). We recommend that you select Dead Reckon as an available ”device”.
Page 211 ECDIS Operator Manual Raytheon Anschütz GmbH Germany NOTE Starting track control “Steer to Track” is not possible with dead reckoning selected as navigation device.For each available navigation device, you must select the datum the received data are based on. If you do not know the datum, check the device’s instructional manual.
Page 212 Operator Manual 7.1.3 Position Monitoring The Position Monitoring function allows you to select a Deviation Limit value for heading or track control and additional information about the Current Deviation, Primary Position and Secondary Position. Procedure: (see Figure: 7−4) Step 1 Select the ship menu (see Figure: 7−1). Step 2 Select Position Monitoring...
Page 213 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.4 Dead Reckoning The Dead Reckoning feature serves two purposes: It is a means to calculate your position from the available speed and heading values, if your navigation device(s) fails; It allows you to demonstrate or practice using ECDIS by simulation ship‘s motion.
Page 214 Operator Manual 7.1.4.1 Turning ON Dead Reckoning NOTE ECDIS starts dead reckoning automatically when track control is activated. Procedure: (see Figure: 7−5) Step 1 Select the ship menu (see Figure: 7−1). Step 2 Select Dead Reckon... The dialog box appears. Step 3 If you want to use the course and/or speed from a navigation device, click inside the appropriate Use ..
Page 215 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.4.2 Turning OFF Dead Reckoning NOTE Turning OFF dead reckoning is not possible during track control or while DR is selected as primary Nav Device . Procedure: Step 1 Select the ship menu (see Figure: 7−1).
Page 216 Operator Manual 7.1.5 Position Offset When displaying a signal from a navigational aid using the ARPA Radar Tracking command, the target may not appear exactly over the navigational aid. When this occurs, make sure your electronic charts have the most recent update. If this is the case, the error may then be due to incorrect position information from your navigational positioning device.
Page 217 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.5.1 Changing Ship’s Position Procedure: (see Figure: 7−6 and Figure: 7−7) Step 1 Select the ship menu (see Figure: 7−1). Step 2 The cursor changes to target shape and the Ship Offset dialog box appears.
Page 218 Operator Manual 7.1.6 The Ship’s Heading Vector and Anti−grounding Look Ahead Own Ship Vector WARNING FOR ANTI−GROUNDING INFORMATION TO BE ACCU- RATE, ALL CHART DATABASES MUST BE UP−TO− DATE AND VALID. ECDIS provides options to display course and heading vectors as well as a search light, see Figure: 7−8.
Page 219 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.6.1 Heading Vectors 1. Heading Vector − True Heading, black in color, which displays the ship’s heading received from the gyro. You may select to the vector drawn to the edge of the screen or by length.
Page 220 Operator Manual 7.1.6.2 Turning Heading/Course Vector or Searchlight ON or OFF NOTE If the ship is not moving the heading vector and searchlight will not appear. Procedure: (see Figure: 7−9) Step 1 Select the ship menu (see Figure: 7−1). Step 2 Select Own Ship Vector..The dialog box appears. Step 3 To turn on/off the Course / Heading vectors, click inside the check boxes for either one or both of the vector types.
Page 221 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 4 Figure: 7−9 Own Ship Vectors dialog box 7−15 Edition: 30.MAR.2007 3655DOC020102...
Page 222 Operator Manual 7.1.7 Placing Ship Marks A ship mark is an placed at the ship’s location and labeled with the time it was set, Figure: 7−10. Placing ship marks Figure: 7−10 Placing Ship Marks You can use the Mark at Ship command to annotate tracks with your own ship marks.
Page 223 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.8 Anchor Watch ECDIS can monitor the drift of the ship while anchored. When Own ship (DR Point) travels outside the range, ECDIS gives an audible alarm and displays a warning message. Procedure: (see Figure: 7−11) Step 1 Select the ship menu (see Figure: 7−1).
Page 224 Operator Manual 7.1.9 Guard Zone The Guard Zone command allows you to tell ECDIS to monitor the ARPA target distances and to generate a warning message if a target enters the specified range. You may ask ECDIS to guard any where between 1 and 30,000 meters. Procedure: (see Figure: 7−12) Step 1 Select the ship menu (see Figure: 7−1).
Page 225 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.10 Man Overboard When the Man Overboard command is selected, ECDIS posts an entry to the Event Log. You may sound the alarm immediately by clicking on Alarm (a sec- ond MOB entry and Alarm entry will be posted to the Event Log). If the Alarm is signaled, ECDIS disconnects the autopilot, and places a ship mark on the display.
Page 226 Operator Manual Step 2 special MOB marker with time entry Position of the MOB, distance and bearing to the MOB Figure: 7−13 Man Overboard event (see log menu) Figure: 7−14 Current Log MOB information 7−20 3655DOC020102 Edition: 30.MAR.2007...
Page 227 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 7.1.11 Clear or Cancel Man Overboard − Alarm Procedure: Step 1 Select the ship menu (see Figure: 7−1). Step 2 Select Overboard All−Clear. ECDIS turns off the alarm and posts an entry to the ship.
Page 228 Operator Manual 7−22 3655DOC020102 Edition: 30.MAR.2007...
Page 229 ECDIS Operator Manual Raytheon Anschütz GmbH Germany ROUTES MENU ROUTE PLANNING ECDIS has sophisticated route planning capabilities. During route planning, each route section is automatically checked for free and safe passage of the ship. The automatically check−up comprises Prohibited Areas, Own Ship’s Contours, Buoys and Beacons known from and indicated in the sea charts (CM93/3, S57).
Page 230 Operator Manual The wheel−over point position is controlled by the “Turning Response” box in the Autopilot dialog box. Please see ”Driving an Autopilot”, chapter 12.1.5. If you wish to have the current turning arc match the planned turning arc, you will need to change either your ship’s speed or the planned rate of turn (see Autopilot dialog box, chapter 2.1.10).
Page 231 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.1.1 Route Description field Figure: 1−1 Route Description ECDIS does not select an active waypoint until the Steer to Track dialog box has been opened and the active waypoint has been selected. Waypoint Ship, the position displays in field −2−...
Page 232 Operator Manual The following information is displayed: 1) Waypoints appear as a circle and an additional circle appearing around the active waypoint. 2) Planned track (course line) between the waypoints (is red in color and appears as a thick dashed line between waypoints and a thick dashed line for the approach manoeuvre).
Page 233 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.1.1.1 Handling Primary Route and Secondary Route While working on a route managing it is possible to plan and edit two routes at the same time. Route priorities are indicated by the entry Primary and Secondary in the menu guide (see chapter 8.2.3 Toggle Routes).
Page 234 Operator Manual 8.1.1.2 Primary and Secondary Route using in a Single ECDIS system Using the context sensitive pop up window you will find following restrictions between the Primary and Secondary Route window. Place the Target Cursor on a waypoint from a Primary or Secondary Route and click the [Query] button from trackball.
Page 235 ECDIS Operator Manual Raytheon Anschütz GmbH Germany ROUTES MENU COMMANDS Display Ship Routes Nav Tools Step 1 Edit Route... " Open Route... " Toggle Routes Save Route... " Show Route... " List Route... " use the pull down menu Clear Route...
Page 236 Operator Manual Table 8−1 Overview Route Menu Routes Commands Function 8.1.1 Route Route information about Symbols, Server Rights or Client Rights Description.. 8.2.1 Edit Route... Create or edit a primary or secondary route. 8.2.2 Open Route... Open a saved primary or secondary route. 8.2.3 Toggle Route Toggle primary and secondary route.
Page 237 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.1 Edit Route Command When you choose the Edit Route command, ECDIS displays the Edit Route dialog box with the name of the open route (Primary or Secondary) in the title bar. Before creating a new primary or secondary route the last primary or secondary route has to be cleared.
Page 238 Operator Manual not accepted, you must change the location of the waypoint. If the geometrical limits are not accepted, you may either change the waypoint, waypoint radius, or the Cross−track Error Alarm (you may leave the Edit Route dialog box open while you do this).
Page 239 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Accept button. The waypoint number and the waypoint coordinates are shown in the dialogue window. Step 5 Select the next waypoint either by cursor or by numerical input of Lat/ Long . If the waypoints are more than 200NM away from each other, Great Circle Navigation will be considered (see chapter 8.2.1.4).
Page 240 Operator Manual Alarm overview for areas which the ECDIS detect and indicates in the Alarm Window: Traffic separation zone Submarine transit lane Traffic routing scheme crossing or Ice area roundabout Channel Traffic routing schema precautionary Fishing ground area Fishing prohibited Two way traffic route Pipeline area Deep water route...
Page 241 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.1.2 Performing Actions in a loaded Primary or Secondary Route Procedure: (using the menu structure) Step 1 Select the route menu (see Figure: 1−5). Step 2 If no route loaded select Open Route then e.g. Primary Route. Select the desired route from the Open Primary Route list box.
Page 242 Operator Manual boxes. Step 1.1 To extend the route, either enter waypoints in the display per cursor, or specify their coordinates in the Latitude and Longitude boxes. Step 1.2 Select the OK button, if the a route extending is finished. The Save Route dialogue box appears displaying the name of the route.
Page 243 ECDIS Operator Manual Raytheon Anschütz GmbH Germany NOTE The value for the turning arc/radius is limited to 135_. If this Limit is exceeded while planning a route a message window pop−up giving respective information. Figure: 1−9 Note when turn arc/radius greater than 135_ Step 2.2 Select the OK button, if the a route changing is finished.
Page 244 Operator Manual Step 2.1 Step 2.2 Figure: 1−10 Change Route Option button Route: Inserting selected To insert a waypoint, first select the two waypoints that will be adjacent to the inserted waypoint, then enter the new waypoint. ECDIS redraws the route to include the inserted waypoint.
Page 245 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Using waypoint list in the dialog box Click on the waypoint that will precede the inserted waypoint. Click on Accept. In the Waypoint list box, click on the waypoint that will follow the inserted waypoint. Click on Accept. Enter coordinates of the inserted waypoint in the Latitude and Longitude boxes, click on Accept.
Page 246 Operator Manual Option button Route: Delete selected Use the Delete feature of the Edit Route command to remove waypoints from a route. If you delete the active waypoint, ECDIS draws a course line between the previous and next waypoints in the route. Step 4.1 Using the target cursor Position the cursor over the waypoint you want to delete and click on Enter.
Page 247 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Text Point: Insert selected (see Figure: 1−11) This function is controlled by a loaded route. In this case it is possible to place one or more Text Points in the route area. A text editor window allows the user to specify the text point, Step 6.1 Click on Insert.
Page 248 Operator Manual Cross−Track error (see Figure: 1−12) Step 7.1 To enter a cross−track error, click in the XTD limit text box and enter the cross−track in m. Click on Set to make the change. The fairlanes on the display will be adjusted according to the cross−track limit settings.
Page 249 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 4 Select Change next to the datum list box and scroll through the pull− down to select the datum of the chart from which you read off the waypoint (see Figure: 1−13) Step 5 To enter the latitude and longitude of a waypoint, type in the hemisphere, degrees and minutes.
Page 250 Operator Manual select an new datum waypoint coordinates Step 8 Step 4 Step 3 Figure: 1−13 Edit Route Dialog Box 8.2.1.4 Navigating with Great Circle or Rhumb Line ECDIS provides a feature that allows you to navigate great circle routes. When you enter a waypoint at a distance greater than 200 NM from the ship’s position or from the previous waypoint (see chapter 8.2.1.2), ECDIS prompts you with following message:...
Page 251 ECDIS Operator Manual Raytheon Anschütz GmbH Germany larger distance. shortest way. Figure: 1−15 Rhumb Line Vs. a Great Circle Route 8.2.1.5 Datum Conversion of Waypoints When entering waypoints by specifying coordinates, the waypoints are always converted to WGS 1984 coordinates (see chapter 8.2.1.3). In the Edit Route dialog the waypoints of the waypoints list can be displayed in another datum.
Page 252 Operator Manual the dialog box. Do not click on Convert. Do not click on Accept. Step 5 To leave the dialog box, click on OK. Step 3 Figure: 1−16 The Edit Route dialog box − Datum Conversion 8−24 3655DOC020102 Edition: 30.MAR.2007...
Page 253 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.1.6 If Track Control is active If the route modifications are finished, the modified route has to be activated by the Activate bottom. The text field at the bottom of the dialog box (Information) displays corresponding messages.
Page 254 Operator Manual 8.2.2 Opening Routes Select the Open Route (primary or secondary) command when you want to navigate using a route you’ve already created. When you activate the command, ECDIS displays the Open Route dialog box, which contains listing of all the routes you have saved in alphabetical order.
Page 255 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.3 Toggle Routes The menu function Toggle Routes allows quick switching between a primary and a secondary route. For this action, both routes must be defined within the same part of the sea chart.
Page 256 Operator Manual Step 3 Select your planned speed for the route legs or for the whole route. Figure: 1−20 List Route Step 4 Click on OK when done. (For detailed Information see chapter 8.2.6) Figure: 1−21 Route List Step 5 Select Close when you’ve finished viewing the route list. 8−28 3655DOC020102 Edition: 30.MAR.2007...
Page 257 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.4 Saving Routes (Primary or Secondary) The Save Route command allows you to store a route in the route list so that you can use it again. When you choose the Save Route command, the system will check the route for obstacles or depths shallower than the depth defined by the ship’s loading...
Page 258 Operator Manual 8.2.5 Show Route (Primary or Secondary) The Show Route command centers the display on either the active waypoint of the open route, or if there is no active waypoint, the first waypoint in the route. Procedure: Step 1 Select Open Route from the Routes menu.. Select Show Route.
Page 259 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Table 8−2 Waypoint List Column Definitions Column Contains Waypoint Num The waypoints numerical position in the route. Waypoint Label Waypoints label. Latitude Waypoints latitude. Longitude Waypoints longitude. Plan Spd Planned speed for the route leg (e.g. from waypoint 1 to waypoint 2) Brg Next Bearing from that waypoint to the next waypoint.
Page 260 Operator Manual 8.2.8 Deleting saved Route The Delete command allows you to delete routes that you no longer need from the route list. When you choose this command, ECDIS displays the Delete Route dialog box, which contains a list of all the routes you have saved. You can delete as many routes as you want before closing the dialog box.
Page 261 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.9 Export Routes The Export Route command allows you to save routes on a floppy disk . Procedure: (see Figure: 1−25) Step 1 Select Open Route from the Routes menu.. Select Export Route. The Export Route dialog box appears displaying the names of all the routes saved in the route list.
Page 262 Operator Manual 8.2.10 Import Routes The Import Route command allows you to import routes from a floppy disk . You can only import routes which have been exported with a compatible software version. Procedure: (see Figure: 1−26) Step 1 Select Open Route from the Routes menu.. Select Import Route.
Page 263 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.11 Sending and Displaying ECDIS objects and Route on the Radar ECDIS allows you to send and display objects on selected radars. ECDIS is compatible with any device whose I/O ports are according to designed NMEA 0183.
Page 264 Operator Manual Figure: 1−27 Send to Radar 8.2.11.2 Send Route to Radar The Send Route to Radar function is used for the Primary Route. Route Monitoring can be activated if you want to transfer a Primary Route to the connected radar display. This is an automatically function without any pop up window information.
Page 265 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.12 Route Monitoring Route Monitoring can be activated if you want to follow a route in manual or leading control, but also want to have the information provided in track control mode, i.e. exceeding cross track limits, approaching a waypoint.
Page 266 Operator Manual Procedure: (see Figure: 1−28) Step 1 Select Open Route from the Routes menu.. Select Route Monitoring. (Alterative selection, place the Target Cursor on a waypoint from a Route and click the [Query] button. Select Route Monitoring from the menu box which appears) Step 2 Select the desired waypoint per left or right arrow button or per target cursor.
Page 267 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.13 Track Control NOTE Track Control is not an ECDIS function. To activate this function an AUTOPILOT System has to be connected. For detailed information ask Raytheon Marine. If an Autopilot Remote Control Panel (ARCP Type 102−897, see additional description no.
Page 268 Operator Manual 8.2.13.1 Information Panel NAV −Route Description− You will find the Information Panel very helpful while navigating. The NAV panel of ECDIS uses the TO WPT box to display information about the active waypoint you are approaching. It provides you with the cross−track deviation, the bearing, the distance, the position and the estimated time of arrival (ETA) for the waypoint (for detailed panel information see chapter 2.7).
Page 269 Track Control is not an ECDIS function. To activate this function an AUTOPILOT System has to be connected. For detailed information ask Raytheon Anschütz. When you open the Steer to Track dialog box after creating or opening a route, ECDIS automatically selects the first valid waypoint in the route as the active waypoint.
Page 270 Operator Manual Step 2 indicated only when NP20.. is installed Step 3 Figure: 1−31 Activating Track Control 8−42 3655DOC020102 Edition: 30.MAR.2007...
Page 271 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.13.4 Stopping Track Control If you want to depart from the track or interrupt track control in case of emergency: Procedure: (see Figure: 1−32) Step 1 Select Track Control from the Routes menu.
Page 272 Operator Manual 8.2.13.5 Reactivating Track Control When you − after an interruption − are ready to reactivate track control, you can open the Steer to Track dialog box and select a waypoint in the route as the active waypoint you want to navigate to. Procedure: (see Figure: 1−33) Step 1 Select Track Control from the Routes menu.
Page 273 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.14 Distance−To−Run / Planned Position Distance−To−Run From this menu function a Distance−To−Run Interval can be defined. It is appropriate to zoom out the chart such that the complete route is visible. Procedure: (see Figure: 1−34) Step 1 Select Distance−To−Run..
Page 274 Operator Manual Planned Position This tool can be directly related to the Distance−To−Run function. Planned Position will reasonably only be performed for the Track Control or Route Monitoring. It is appropriate to zoom out the chart such that the complete route is visible. Procedure: (see Figure: 1−35) Step 1 Select Distance−To−Run..
Page 275 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Info field Figure: 1−35 Distance−To−Go and Planned Position 8−47 Edition: 30.MAR.2007 3655DOC020102...
Page 276 Operator Manual 8.2.15 Pre−Departure Checklist The Pre−Departure Checklist allows you to write a individual checklist for e.g. important procedures like what is to do before leaving the harbour? This checklist can be stored under a typical name so you can call it up every time.
Page 277 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.16 Alarms Using the Navigational Alarms In connection to Route planning ECDIS provides two alarms to assist you in navigation: The Waypoint Approach Alarm and the Cross−Track Error Alarm. Both alarms can be adjusted by the Alarms command, opening the dialog box shown below.
Page 278 Operator Manual Cross Track Deviation Limit violation ECDIS generates an alarm to indicate violation of cross−track limits (the Cross Track Deviation Limit is defined in the Alarms dialog box shown in Figure: 1−38 and can also be set in the Create/Change Route dialog (see chapter 8.2.1.2 (7)).
Page 279 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.16.1 Setting the Navigational Alarms Procedure: (see Figure: 1−39) Step 1 Select Alarm from the Routes menu, the dialog box appears. (Alterative selection, place the Target Cursor on a waypoint and click the [Query] button. Select Alarm from the menu box which appears.
Page 280 Operator Manual 8.2.17 Check Route Check Route considers the validity of objects limited in time in the sea chart formats CM93/3 and S57. Objects limited in time are: S Prohibited Areas S Own Ships Contours S Buoys and Beacons. Check Route is recommended for a check−over of a known route, for example, that has to be sailed on a certain date.
Page 281 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 8.2.18 ECDIS used as Route Server or Route Client (Option) This functionality is only possible in connection with a navigation system containing at least two ECDIS units. Depending on the system configuration, one ECDIS can be the Route Server or the Route Client.
Page 282 Operator Manual Client Route Menu Server Route Menu Edit Route... " Open Route... " Toggle Routes Save Route... " Show Route... " List Route... " Clear Route... " Delete saved Route... Export Routes... Import Routes... Send Route to Radar Route Monitoring... Track Control...
Page 283 ECDIS Operator Manual Raytheon Anschütz GmbH Germany NAV TOOLS MENU NAV TOOLS MENU COMMANDS Display Ship Routes Nav Tools Step 1 Free EBL/VRM Free EBL/VRM Fixed EBL/VRM Fixed EBL/VRM Rhumb/Great Circle Line Rhumb/Great Circle Line use the pull down menu Datum Transformation..
Page 284 Operator Manual Nav Tools Function Commands 9.1.7 Navigation Calculates either the speed required to achieve pre−determined ETAs Calculator... at specific waypoints, or calculates the ETAs based on pre−determined speeds. 9.1.8 Tidal Allows to calculate tidal predictions for more than 600 tide stations Prediction...
Page 285 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 3 Step 2 EBLVRM position inhumation field Figure: 1−2 Range and Bearing from a One Point to Another 9−3 Edition: 30.MAR.2007 3655DOC020102...
Page 286 Operator Manual 9.1.1.2 Range and Bearing from the Ship to a Displayed Location Procedure: (see Figure: 1−3) Step 1 Select Fixed EBL/VRM from the Nav Tools menu or click on the Fixed EBL button on the toolbar The anchor point of the EBL is located at the ship’s center. Step 2 Position the target cursor at the intended location, then click the [Enter] button In the Cursor boxes, the range and bearing values at cursor position...
Page 287 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 9.1.2 Rhumb/Great Circle Line Within this NavTool it is possible to calculated distances of two positions on a Rhumb Line or a Great Circle Line. Procedure: (see Figure: 1−4) Step 1 Select Rhumb/Great Circle Line from the Nav Tools menu.
Page 288 Operator Manual Step 3 Show Lines... Step 2 Step 4 Figure: 1−4 Line Tool 9−6 3655DOC020102 Edition: 30.MAR.2007...
Page 289 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 9.1.3 Datum Transformation With this NavTool it is possible to calculate position values (coordinates) for different datums. Procedure: (see Figure: 1−5) Step 1 Select Datum Transformation from the Nav Tools menu. The dialog box appears.
Page 290 Operator Manual 9.1.4 Cursor Offset With this NavTool it is possible to calculate the cursor position for different datums. Procedure: (see Figure: 1−6) Step 1 Select Cursor Offset... from the Nav Tools menu. The dialog box appears. Step 2 f you want to change the Cursor Offset, press the Change button, a library list window appears.
Page 291 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 9.1.5 Position Fix With this NavTool any position within the chart can be declared to be fix points. The selection can be made with the cursor or manually with the keyboard via the position window Latitude and Longitude .
Page 292 Operator Manual Line Of Position 9.1.6 The Lines Of Position (LOP) feature is provided as an aid to the Navigator (terrestrial navigation): S To determine ship’s location when forced to operate in the Dead Reckoning mode (DR) S As a visual check of the Ship’s electronic positioning systems. This feature is implemented to emulate the functionality and symbols used on paper charts.
Page 293 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Figure: 1−8 Line of Pos 1. Reference Position Shows the Latitude and Longitude of selected Nav Aid (conspicuous object as tower, light house). 2. Range/Bearing − Range Used when using LOP Type “Circular”.
Page 294 Operator Manual 4. Hide LOP Turns LOP Display ON or OFF 5. LOP TYPE Allows Operator selection of either Bearing (Linear) or Range (Circular) to enter NAV Aid location for drawing LOPs. 6. Name Allows Operator to Save, the Line of Position (Range / Bearing) under a significant name.
Page 295 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 9.1.7 Navigation Calculator The ECDIS Navigation Calculator utility provides you with a quick way to calculate two different scenarios: S The arrival time, at a waypoint, if you proceed at a given speed.
Page 296 Operator Manual 9.1.7.2 ETA Calculation for One or More Legs Within this calculation method, the speed for a route section or for the entire route over time (ETZ (UTC)) can be calculated (see Figure: 1−9). Procedure: Step 1 Select Navigation Calculator from the Nav Tools menu. The dialog box appears.
Page 297 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 2 Figure: 1−9 Navigation Calculator dialog box 9−15 Edition: 30.MAR.2007 3655DOC020102...
Page 298 Operator Manual 9.1.8 Tidal Prediction With this NavTool it is possible to calculate tidal prediction for more than 600 tide stations. Procedure: (see Figure: 1−10) Step 1 Select Tidal Predication from the Nav Tools menu. The dialog box appears. Step 2 Select the desired port area in the list box (1). The desired port area can be selected via following buttons: All Ports Shows all existing Ports (more than 600 ports).
Page 299 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Check box (4) for showing the Tidal Information Marks on Charts (up to 1 : 500 000 only). Symbol for the information mark. Figure: 1−10 Tidal Prediction 9−17 Edition: 30.MAR.2007 3655DOC020102...
Page 300 Operator Manual 9.1.9 Magnetic Variation If the coefficient of magnetic variation calculation are out of data the following message appears. The warning message contains an address to get in contact for a new version. Figure: 1−11 Warning message Procedure: Step 1 Select Magnet Variation from the Nav Tools menu showing the current Geomagnetic field deflection or select OK button from the Warning message doing the update (see Figure: 1−11).
Page 301 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Step 1 Step 2 Step 3 Figure: 1−12 Magnetic Variation 9−19 Edition: 30.MAR.2007 3655DOC020102...
Page 302 Operator Manual 9.1.10 Distance−To−Run / Planned Position Distance−To−Run From this menu function a Distance−To−Run Interval can be defined. It is appropriate to zoom out the chart such that the complete route is visible. Procedure: (see Figure: 1−13) Step 1 Select Distance−To−Run.. from the Nav Tools menu. The Distance−To−Run dialog box appears Step 2 Adjust the desired width of the interval either by typing it in or via the spinners.
Page 303 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Planned Position This tool can be directly related to the Distance−To−Run function. Planned Position will reasonably only be performed for the Track Control or Route Monitoring. It is appropriate to zoom out the chart such that the complete route is visible.
Page 304 Operator Manual Info field Figure: 1−14 Distance−To−Go and Planned Position 9−22 3655DOC020102 Edition: 30.MAR.2007...
Page 305 Drawing tool 10.1.2 Merge Object Merges two or more Object Groups. Groups 10.1.3 Export Object Export Object Groups to a Floppy. Groups 10.1.4 Import Object Import Object Groups from another Raytheon ECDIS unit by floppy. Groups 10−1 Edition: 30.MAR.2007 3655DOC020102...
Page 306 Operator Manual 10.1.1 Plot Layer Description Figure: 10−2 Draw Objects Active Group of Objects for selecting a named group of chart entries designating a newly named group of chart entries deleting a desired group of chart entries Edit Edit is subdivided into following groups: Object −...
Page 307 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Info shows context−related information or shows the known data of an object group (name, last modified, contents). How it works S Info for Object Point selection Each point can be marked with a label (font size Small, Middle, Large), Color and Style.
Page 308 Operator Manual Info for Color selection From the variety of colors offered, RED is suggested as color indicating alarm. 10.1.1.1 Example Procedure: Step 1 Select Draw Objects from the Plot Layer menu. The dialog box appears. Step 2 Click on the New Group button. Write down the name e.g. “ANCHOR PLACE”.
Page 309 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 10.1.2 Merge Object Groups Within this Plot Layer function it is possible to merge at least 2 existing groups to one new group. The maximum size of the new group is 200 points, 1000 line points, 1000 area points and 100 arrows.
Page 310 Operator Manual 10.1.3 Export Object Groups The Export Object Groups command allows you to save groups on a floppy disk. Procedure: (see Figure: 10−4) Step 1 Select Export Object Group from the Plot Layer menu. The dialog box appears displaying the names of all the object groups saved in the list.
Page 311 The Import Object Groups command allow you to import objects from a floppy disk .You can only import objects which have been exported by the ECDIS software from Raytheon Anschütz. Procedure: (see Figure: 10−5) Step 1 Select Import Object Group from the Plot Layer menu.
Page 312 Operator Manual 10−8 3655DOC020102 Edition: 30.MAR.2007...
Page 313 ECDIS Operator Manual Raytheon Anschütz GmbH Germany LOGS MENU 11.1 LOGS MENU COMMANDS Nav Tools Plot Layer Logs Integration Help Previous 12 Hour Log... use the pull down menu Current 12 Hour Log... via cursor Voyage Recording... via keystroke Figure: 11--1 Logs Menu...
Page 314 Operator Manual 11.1.1 Previous 12 Hours Log This ECDIS’s 12 Hours Log features enables you to look at the previous log, search covers a preriot of 12 hours. Procedure: (see Figure: 11--2) Step 1 Select Previous 12 Hour Log from the Logs menu. The dialog box appears.
Page 315 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Click on Filter. The filter dialog box, (see Figure: 11--3) Filter appears. Select the Event type in the Check box (Alarm, Info, Ack..) you want to see in the Previous 12 Hours Log Data box.
Page 316 Operator Manual 11.1.2 Current 12 Hours Log In this box you can find inform action recorded over the current 12 hours. Procedure: (see Figure: 11--4) Step 1 Select Current 12 Hour Log from the Logs menu. The dialog box appears. Figure: 11--4 Current 12 Hour Log box Command Buttons:...
Page 317 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Select the Event type in the Check box (Alarm, Info, Ack..) you want to see in the Previous 12 Hours Log Data box. Figure: 11--5 Filter dialog Box Click on Cancel if you want to deselect all selected Event types.
Page 318 Operator Manual 11.1.3 Voyage Recording The Voyage Recorder automatically retains the ship‘s past track of the last 14 days. This record is registered in the Recorded Track area of the Voyage Recording box using the UTC data of the record as reference name. These registrations will loose their Write--protect--mark “P”...
Page 319 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Position Receiver: This List box contains the integrated Position Receivers. Selection is performed either via the scroll bar or directly via the cursor. While plotting the trail type of position receiver is indicated at each interval mark.
Page 320 ECDIS Operator Manual Raytheon Anschütz GmbH Germany INTEGRATION MENU 12.1 INTEGRATION MENU COMMANDS Logs Integration Help Nav Device Selection... use the pull down menu Position Monitoring... AIS Options... via cursor ARPA Radar Tracking... Radar Overlay Settings... via keystroke Autopilot... Echosounder...
Page 321 Operator Manual Integration Function Commands 12.1.6 Echosounder... Used to enter an depth alarm for an integrated echosounder. If you do not have an echosounder integrated, this menu command will be grayed (not available). 12.1.7 Wind Sensor... Allows you to specify whether you want to have wind information dis- played relative to own ship or as true wind speed and direction.
Page 322 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.1.1 Navigation (Talker) Devices ID (ECDIS) Table 12−1, (below), lists abbreviations (Talker ID‘s) which might appear in the data monitor window. Table 12−1 Navigation (Talker) Devices ID (ECDIS) DEVICE Autopilot: General Communications: Decca Navigation Electronic Chart Display &...
Page 323 Operator Manual DEVICE Radio Update, WWV or WWVH Weather Instruments 12.1.1.2 Navigation Sentence Formatters (ECDIS) Table 11−1, (below), lists ID sentences that are currently supported by the ECS system. Table 11−1 Navigation Sentence Formatter ID (ECDIS) DEVICE Formatter Bearing and Distance to Waypoint Depth Below Transducer Dual Doppler Auxiliary Data Global Positioning System Fix Data...
Page 324 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.2 Position Monitoring The Position Monitoring function allows you to select a Deviation Limit value for heading or track control and additional information about the Current Deviation, Primary Position and Secondary Position. Procedure: (see Figure: 12−3) Step 1 Select Position Monitoring from the Integration menu.
Page 325 Operator Manual 12.1.3 AIS Options (OPTION) The Automatic Identification System (AIS) is designed for automatic and autono- mous data communication between ships. The communication data consist of information such as identification, position, speed, course over ground (detailed information see AIS Manual). 12.1.3.1 Calling up AIS Options If there is an AIS connected to the ECDIS, AIS targets can be displayed on the...
Page 326 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Limits for Dangerous Targets − The limits for CPA () and TCPA () to generate Dangerous Target Alarms can be adjusted. − It can be defined whether the CPA limit, the TCPA limit or both values will cause Dangerous Target Alarm.
Page 327 Operator Manual Step 2 Step 3 Figure: 12−5 Selecting an AIS Target 12−8 3655DOC020102 Edition: 30.MAR.2007...
Page 328 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.3.2 AIS Symbols Figure: 12−6 shows a possible ECDIS display with AIS Targets and AIS Informa- tion window. Figure: 12−6 ECDIS display with AIS Targets The AIS symbols are assigned 5 different pieces of target information. Depend- ing on the situation, each symbol has a different meaning (see AIS symbols).
Page 329 Operator Manual AIS symbols: AIS Target Symbol Description of symbol An isosceles, acute−angled triangle is used with its centroid representing the target’s reference position. The most acute apex of AIS targets the triangle is aligned with the heading of (sleeping) the target, or with its COG, if heading infor- mation is not available.
Page 330 ECDIS Operator Manual Raytheon Anschütz GmbH Germany The AIS Information dialog window separator Figure: 12−7 AIS information dialog box In the upper part of the dialog a list of all AIS Targets is displayed. This is subdi- vided into columns for the User ID (MMSI), Call Sign, Ship’s Name, CPA in NM, TCPA in minutes, Distance from own ship in NM, Bearing from Own Ship in de- gree, Target Speed in knots and Target Course over ground in degree.+...
Page 331 Operator Manual The image in the first column indicates the AIS Target Status (see Table 12−2). Image Status of the AIS Targets Tracked Dangerous Lost Dangerous & Lost Table 12−2 AIS Target Status The list in the lower part shows detailed information about the selected AIS Tar- gets from the upper list.
Page 332 ECDIS Operator Manual Raytheon Anschütz GmbH Germany If the selected Target is Dangerous, this is also indicated in the CPA/TCPA row (DANGEROUS TARGET). If the selected Target is Lost, this is also indicated in the Position row (LOST TARGET). All AIS Target Information which is (currently) not available is indicated as <un- known>.
Page 333 Operator Manual 12.1.4 Integrating an ARPA Radar NOTE When integrating a radar which will accept data from ECDIS, it must not share a COM port with any other navigation device. ECDIS’s ARPA radar interface allows you to integrate up to 6 radars as well as display and track up to 20 acquired targets with optional target tracks, target trails and heading vectors.
Page 334 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Procedure: (see Figure: 12−9 and Figure: 12−10) Step 1 Select ARPA Radar Tracking.. from the Integration menu. The Dialog box appears. If you have more then one radar integrated with ECDIS, click on the option button of the radar you wish to display.
Page 335 Operator Manual Radar B Radar A Radar B cursor target target (green) Radar A cursor (green) ECDIS cursor target (red) Figure: 12−10 Radar cursor (A,B) and Radar targets (A,B) on the ECDIS display 12.1.4.1 Label a radar target Procedure: (see Figure: 12−11) Step 1 Point and click on the target with the [Query] button.
Page 336 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.4.2 Turning OFF all Target Trails Procedure: Step 1 Select ARPA Radar Tracking.. from the Integration menu. The Dialog box appears. Step 2 Click on the OFF option button under Target Trails. This will remove all target trails from the display 12−17...
Page 337 Track Control is not an ECDIS function. To activate this function an AUTOPILOT System has to be connected. For detailed information ask Raytheon Anschütz. ECDIS allows the user to turn on or off the transmission of data to the autopilot as well as to specify a rate of turn, and the turning response.
Page 338 Step 4 If you want ECDIS to automatically advance the autopilot to the next waypoint, click in the Auto advance to next Waypoint check box (when Raytheon Anschütz Autopilots used). Step 5 Click on OK. A message box appears explaining that you need to set the rate of turn in your autopilot.
Page 339 Operator Manual 12.1.6 Integrating a Depth Sounder/ Setting the Depth Alarm Use the Echosounder command to set an alarm depth. If you want to change the unit of measure for the depth display and alarm. WARNING ALARM DEPTH MUST BE CALCULATED FROM THE TRANSDUCER HEAD, NOT FROM THE KEEL OR THE SURFACE.
Page 340 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.7 Changing the Wind Display ECDIS allows you to specify whether you want to display wind data, in the infor- mation panel, relative to your own ship, or as true wind. Depending on the option selected in the dialog box, the information panel will display one of three types of wind.
Page 341 Operator Manual 12.1.8 Navigation Interface The Nav Device Interface dialog box allows the user to view the devices, their ports and actual data streams (see Figure: 12−15). • For device configuration the Service Mode is required. viewing Port Settings Assignment List monitoring data streams Figure: 12−15 Nav Device Interface Setup dialog box...
Page 342 ECDIS Operator Manual Raytheon Anschütz GmbH Germany View Data − to monitor the data stream ECDIS is receiving or transmitting. Check boxes allows the user to specify the monitoring information. check boxes Figure: 12−17 View Data 12−23 Edition: 30.MAR.2007 3655DOC020102...
Page 343 Operator Manual 12.1.9 Entering Information about Your Vessel (Ship Info Command) The Ship Info command is where you enter the dimensions of the vessel, as well as specify where the navigational antennas are located. ECDIS uses the entered information in many ways. First, it draws the ship symbol so that it is proportional to the specified vessel size.
Page 344 ECDIS Operator Manual Raytheon Anschütz GmbH Germany 12.1.10 Set Date and Time The Set Date and Time command allows you to set the date and time for your computer (Local Time on the Information Panel). Procedure: (see Figure: 12−19) Step 1 Select Set Date and Time from the Integration menu.
Page 345 Operator Manual 12−26 3655DOC020102 Edition: 30.MAR.2007...
Page 346 ECDIS Operator Manual Raytheon Anschütz GmbH Germany HELP MENU 13.1 HELP MENU COMMANDS The Help menu contains the following commands. Integration Help use the pull down menu Help Index... System Information... via cursor About... via keystroke Figure: 13−1 Help Menu Table 13−1 Help Menu Commands/Functions...
Page 347 Operator Manual Figure: 13−2 About ECDIS 13−2 3655DOC020102 Edition: 30.MAR.2007...
Page 348 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Error Messages The following is a list of error messages you may possibly receive while working with ECDIS and Chart Station. The list provides the warning message, the signi- fication and the probable cause.
Page 349 Operator Manual MESSAGES SIGNIFICATION PROBABLE CAUSE MAN OVERBOARD! Activated by one of the A MOB symbol appears in following actions: Select MOB the chart, Autopilot will be dis- entry in Ship Info menu, push abled and a log entry will be MOB button in Toolbar or push done.
Page 350 ECDIS Operator Manual Raytheon Anschütz GmbH Germany MESSAGES SIGNIFICATION PROBABLE CAUSE UTC TIME NOT AVAILABLE Lost external time This alarm will be generated if a good time mes- sage was received before APPROACH %s Searchlight is active and detects dangerous objects in the...
Page 351 Operator Manual 14−4 3655DOC020102 Edition: 30.MAR.2007...
Page 352 ECDIS Operator Manual Raytheon Anschütz GmbH Germany Back−up arrangement 15.1 Introduction (Source of excerpts (BSH S33/N24) 1/01) Following requirements must be met to allow the official paper chart on board of seagoing vessels under the German Flag to be completely replaced by an...
Page 353 Operator Manual a) a duplication of the ECDIS b) carrying of a complete set of official and up−to−date paper charts The carriage requirements under Item 2 for a reduced set of official and up−to− date charts when using the official raster data in RCDS mode remain unaffected by this.
Page 354: Annex−1
ECDIS Operator Manual Raytheon Anschütz GmbH Germany Route Planning with the Digitizer The Digitizer is hereby used for planning official routes. Planned routes are transferred to the ECDIS where they are managed by their designation. 15.1.2 Planning Station Version The Planning Station Version consists of 1 ECDIS unit (Console or Table Top Version), a Personal Computer (PC) or Table Top Version and a DIGITIZER (see Annex –...
Page 355 Operator Manual 15−4 3655DOC020102 Edition: 30.MAR.2007...
Page 356: Annex−3
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany Operator Manual Textbox Dialog Box Tool Bar Cursor Symbols Radar Spinners Focus Next Zoom Free Alt. Mark Select Overlay View At Ship Chart (Option) Chart Area Rectangle Target Cursor Check Text Box Boxes...
Page 357 Pathfinder®/ST MK2 Raytheon Anschütz GmbH ECDIS Germany Operator Manual For information see Chapter..MENU BAR Chapter MAIN MENU Chapter CHART MENU Chapter ..OPTIONS ..OPTIONS MENU Chapter DISPLAY MENU Chapter CHARTS SHIP MENU Chapter ARCS OPTIONS S57 OPTIONS ROUTES MENU...
Page 358: Annex−4
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany Operator Manual For information see Chapter..MENU BAR Chapter MAIN MENU Chapter CHART MENU Chapter ..OPTIONS MENU Chapter ROUTES DISPLAY MENU Chapter SHIP MENU Chapter ROUTES MENU Chapter NAV TOOLS NAV TOOLS MENU...
Page 359: Annex−5
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany Operator Manual select chart type (only S57 or ARCS) select chart select chart type type Goto ARSC Chart S57 93/3 OPTIONS S57 93/3 Chart (only S--57 or Info / Select... ARCS) selected S57 + CM93/3 Chart Catalog (Option) Digitization...
Page 360 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany Operator Manual Genral Notices to Mariners... Chart Information..View Chart Notes..Annex -- 4 Edition: 30.MAR.2007 3655E.DOC012...
Page 361 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany Operator Manual S57 CMAP93/3 Mariner Objects..Add/Delete Legend..Manual Updates..Annex -- 5 Edition: 30.MAR.2007 3655E.DOC012...
Page 362 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL 1 S57 93/3 License.. Charts Goto ARSC Chart Info / Select... S57 + CM93/3 Chart Catalog Digitization... " License " Installation " Updates " 1 " S57 License.. IHO S--63 ARCS License..
Page 363 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL 2 IHO S- -63 3 ARCS License.. S57 License.. 2 " IHO S--63 ARCS License.. 3 "" Annex -- 6--1 Edition: 30.MAR.2007 3655E.DOC012...
Page 364: S57 Installation
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL Import unencrypted Import IHO S63.. S57 Installation.. ARCS Installation.. DNC Installation .. 4 S57 Installation.. step 2. step 2. step 1. step 1. Install Database step 4. step 3. step 4.
Page 365: Arcs Installation
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL S57 Installation.. ARCS Installation.. DNC Installation .. 5 ARCS Installation.. Annex -- 6--3 Edition: xx.xxx.xxxx 3655E.DOC012...
Page 366: Annex−6
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL S57 Installation.. ARCS Installation.. DNC Installation .. 6 DNC Installation.. step 4. Copying process step 3. Database Verification starts step 1. step 5. step 2. Attention: step 6. Activation of more than 4 data- base results in slow database access.
Page 367: Annex
Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL Charts Goto ARSC Chart Info / Select... S57 and CM93/3 Update.. ARCS Update.. S57 + CM93/3 Chart Catalog DNC Update.. Digitization... " License " Installation " Updates " Select your chart type Annex -- 7 Edition: 30.MAR.2007...
Page 368 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL Charts Goto ARSC Chart Info / Select... S57 Update.. S57 + CM93/3 Chart Catalog ARCS Update.. Digitization... DNC Update.. 3 (see also page Annex - - 8- -2) " step 3.
Page 369 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany OPERATOR MANUAL Charts Goto ARSC Chart S57 Update.. Info / Select... ARCS Update.. S57 + CM93/3 Chart Catalog DNC Update.. 3 (see also page Annex - - 8- -1) Digitization... " License "...
Page 370 Pathfinder®/ST MK2 ECDIS Raytheon Anschütz GmbH Germany BACK- -UP ARRANGEMENT BACK- -UP ECDIS VERSION Operational Area SOFTWARE Software ECDIS BACK- -UP ECDIS Chart Update for ARCS S--57 C--MAP93/3 DIGITIZER C--MAP93/2 IHO S--63 PERIPHERALS con- Route Exchange nected to COM 1..6 Com 1...6...
