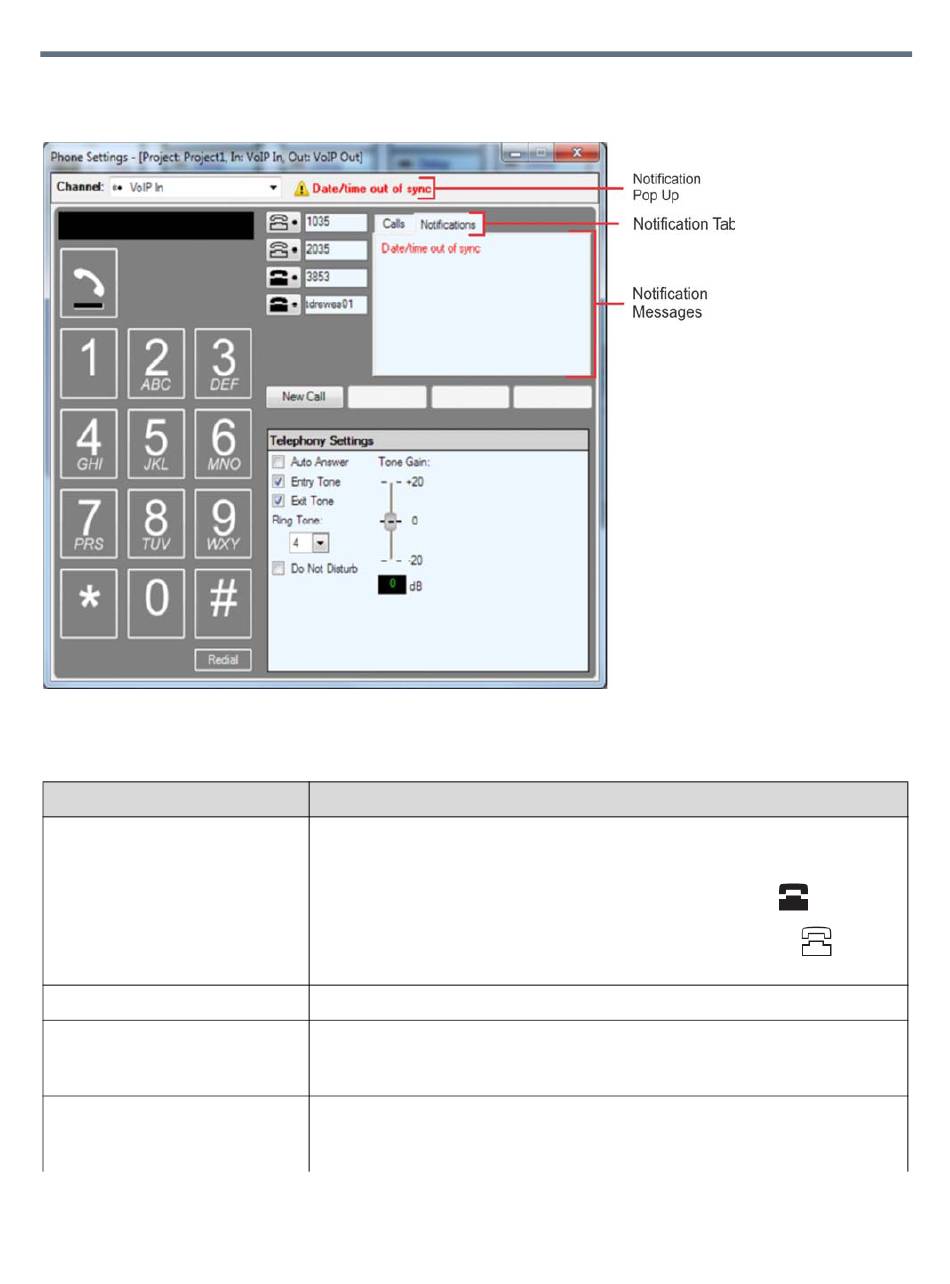

The following figure displays the Notifications tab, messages, and pop up that displays in Phone Settings.
Notifications in Phone Settings
A detailed description of the different UI elements is shown in the following table.
UI Elements
Control
Line Keys
Line Labels
Phone UI Messages
Phone soft keys
Polycom, Inc.
Description
Shows all lines that have been defined with call servers. Up to 12 lines can be
shown here. Lines 1-6 are shown on the left side of the Phone UI messages
area and Lines 7 - 12 are shown in the right side of the Phone UI messages
area. If the line is registered, the line icon will display as solid
or
if the line is not registered, the line icon will display as an outline
The label associated with the particular line.
Shows any messages from the phone such as showing the calling party
information. This area will behave similarly to the display in the SoundPoint IP
phones.
The keys displayed vary depending on the call state and can be used to get a
new line, end a call, put a call on hold, resume a call, transfer a call, and create
conference calls.
.
