5.4. Crosspoint Menu - HDMI20-OPTC-TX220-PRO
Video Tab
2
3
4
5
Main menu The available menu items are displayed. The active one is shown with dark grey
1
background color.
Information It shows the device label which can be edited in the Settings menu -
2
ribbon A drop-down menu is displayed by clicking on this ribbon. You can turn back to the
Device Discovery Window or open the connected TX or RX in a new window (if it is
in the same LAN).
Tab selector
3
Submenu selection by clicking on the tab.
ribbon
Input ports
Click on the port to open the Port properties window.
4
Connections Light grey square means the port is available but there is no connection between
5
the input and the output. White square means there is a connection between the
input and the output port.
Output ports
Click on the port to open the Port properties window.
6
Advanced view Click on the button to display the Advanced view page. It shows the Terminal
7
window and the LW3 protocol tree.
Legend panel
The applied colors of the input/ output ports are described in this panel.
8
1
6

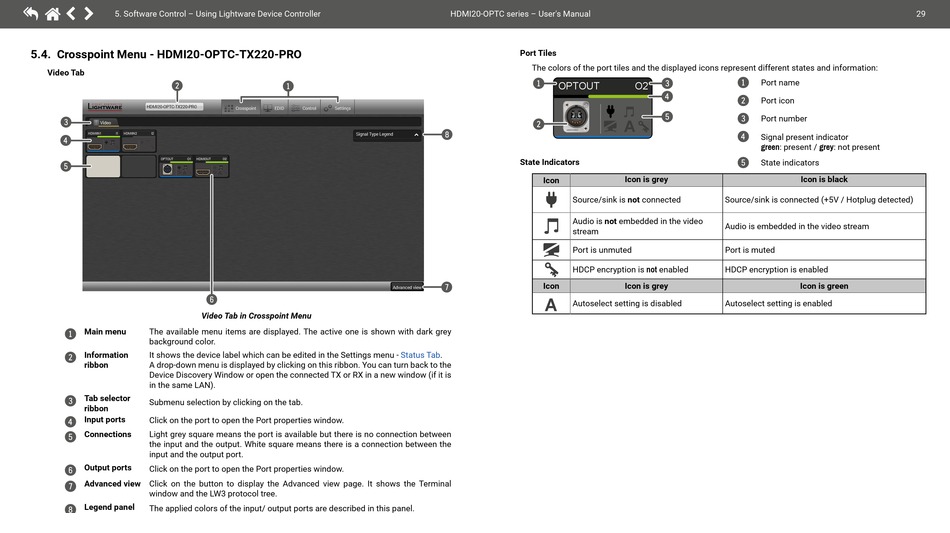

Video Tab in Crosspoint Menu
HDMI20-OPTC series – User's Manual
Port Tiles
The colors of the port tiles and the displayed icons represent different states and information:
1
OPTOUT
2
8
State Indicators
Icon
Source/sink is not connected
Audio is not embedded in the video
stream
A
Port is unmuted
A
HDCP encryption is not enabled
Icon
7
A
Autoselect setting is disabled
Status Tab.
Port name
3 1
O2
4
2 Port icon
5
3 Port number
A
4
Signal present indicator
green: present / grey: not present
5 State indicators
Icon is grey Icon is black
Source/sink is connected (+5V / Hotplug detected)
Audio is embedded in the video stream
Port is muted
HDCP encryption is enabled
Icon is grey Icon is green
Autoselect setting is enabled
