6. Software Control - Using Lightware Device Controller
Step 3. Select the unit from the discovered Ethernet devices. Double click on the name of the extender or
select the device and click on the green Connect button.
If your device is connected to the computer via serial link, select Serial Devices tab. Click on the Query
button next to the desired serial port to display the name of the device and serial number. Double
click on the receiver or select the device and click on the green Connect button.

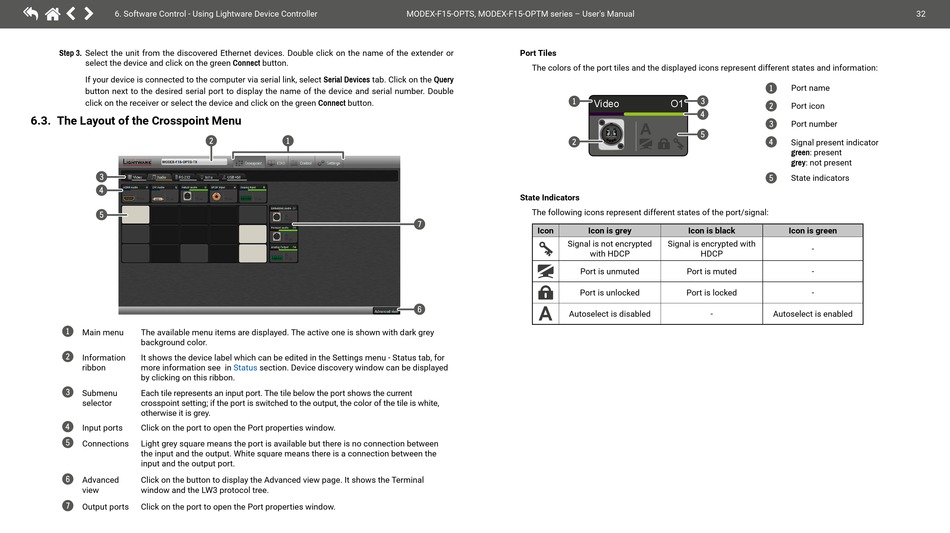

6.3. The Layout of the Crosspoint Menu
3
4
5
1
Main menu The available menu items are displayed. The active one is shown with dark grey
background color.
2
Information It shows the device label which can be edited in the Settings menu - Status tab, for
ribbon more information see in
by clicking on this ribbon.
3
Submenu Each tile represents an input port. The tile below the port shows the current
selector crosspoint setting; if the port is switched to the output, the color of the tile is white,
otherwise it is grey.
4 Input ports Click on the port to open the Port properties window.
5
Connections Light grey square means the port is available but there is no connection between
the input and the output. White square means there is a connection between the
input and the output port.
6
Advanced Click on the button to display the Advanced view page. It shows the Terminal
view window and the LW3 protocol tree.
7 Output ports Click on the port to open the Port properties window.
2 1
Status section. Device discovery window can be displayed
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Port Tiles
The colors of the port tiles and the displayed icons represent different states and information:
1
2
State Indicators
The following icons represent different states of the port/signal:
7
Icon
A
Signal is not encrypted
A
Port is unmuted
A
Port is unlocked
A
6
Autoselect is disabled
1
3
Video O1
2
4
A 3
5
4
5
Icon is grey Icon is black
Signal is encrypted with
with HDCP HDCP
Port is muted
Port is locked
-
32
Port name
Port icon
Port number
Signal present indicator
green: present
grey: not present
State indicators
Icon is green
-
-
-
Autoselect is enabled
