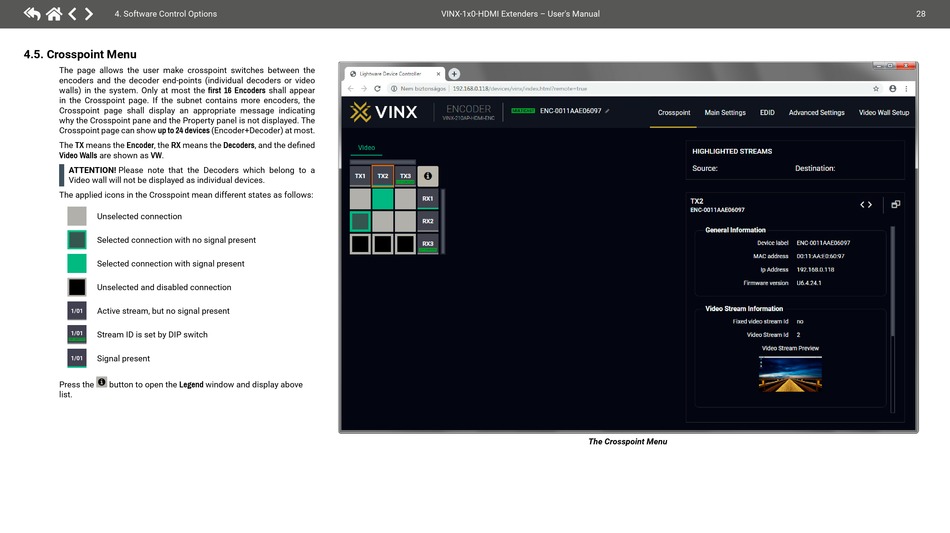

4.5. Crosspoint Menu

The page allows the user make crosspoint switches between the
encoders and the decoder end-points (individual decoders or video
walls) in the system. Only at most the first 16 Encoders shall appear
in the Crosspoint page. If the subnet contains more encoders, the
Crosspoint page shall display an appropriate message indicating
why the Crosspoint pane and the Property panel is not displayed. The
Crosspoint page can show up to 24 devices (Encoder+Decoder) at most.
The TX means the Encoder, the RX means the Decoders, and the defined
Video Walls are shown as VW.
AAAENAIING!
Please note that the Decoders which belong to a
Video wall will not be displayed as individual devices.
The applied icons in the Crosspoint mean different states as follows:
Unselected connection
Selected connection with no signal present
Selected connection with signal present
Unselected and disabled connection
Active stream, but no signal present
1/01
Stream ID is set by DIP switch
1/01
DIP SWITCH
Signal present
1/01
Press the button to open the Legend window and display above
list.
