11 5 640

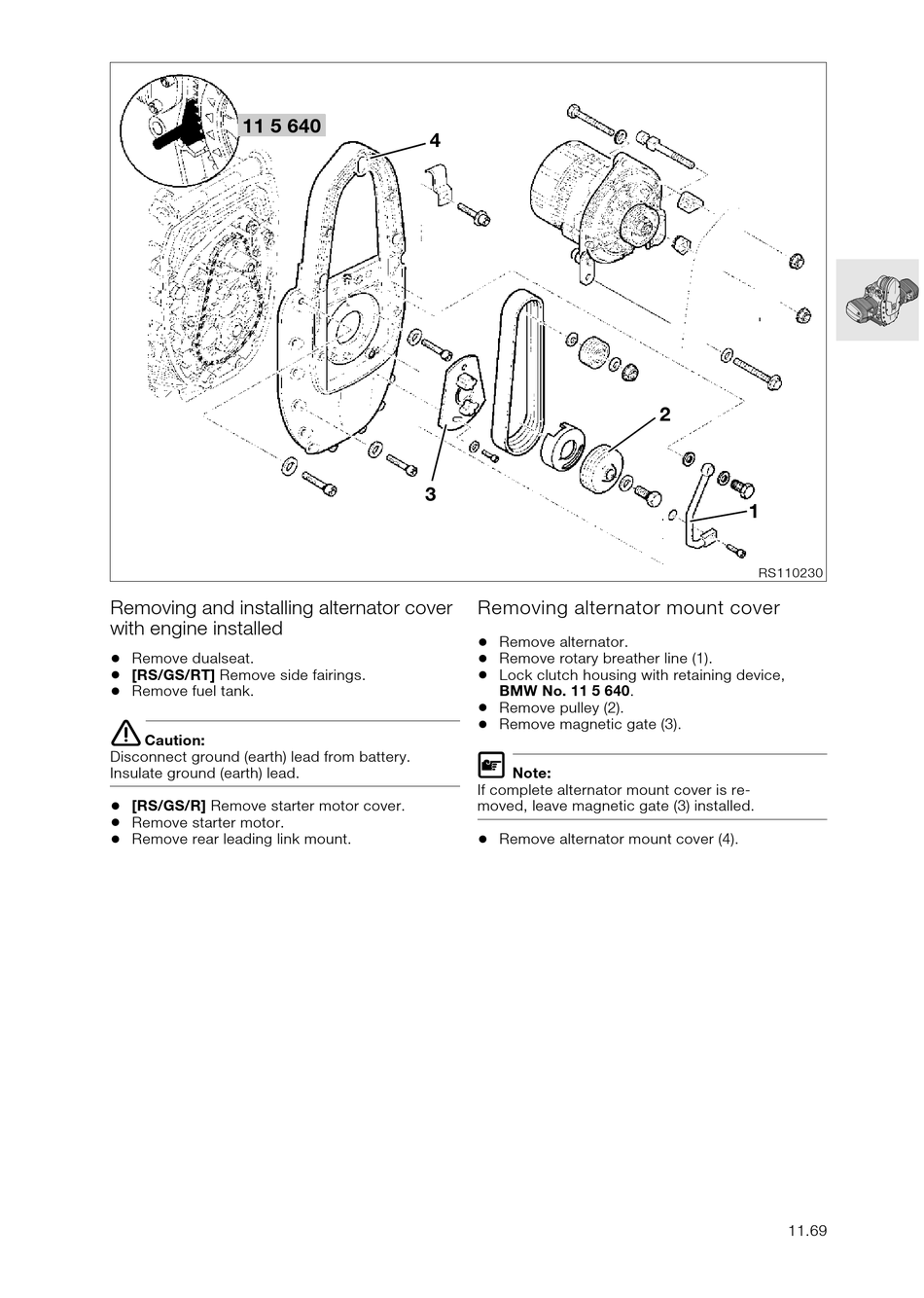

Removing and installing alternator cover
with engine installed
•
Remove dualseat.
•
[RS/GS/RT] Remove side fairings.
•
Remove fuel tank.
e
Caution:
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
[RS/GS/R] Remove starter motor cover.
•
Remove starter motor.
•
Remove rear leading link mount.
4
3
Removing alternator mount cover
•
Remove alternator.
•
Remove rotary breather line (1).
•
Lock clutch housing with retaining device,
BMW No. 11 5 640.
•
Remove pulley (2).
•
Remove magnetic gate (3).
L
Note:
If complete alternator mount cover is re-
moved, leave magnetic gate (3) installed.
•
Remove alternator mount cover (4).
2
1
RS110230
11.69
