iPF8400SE

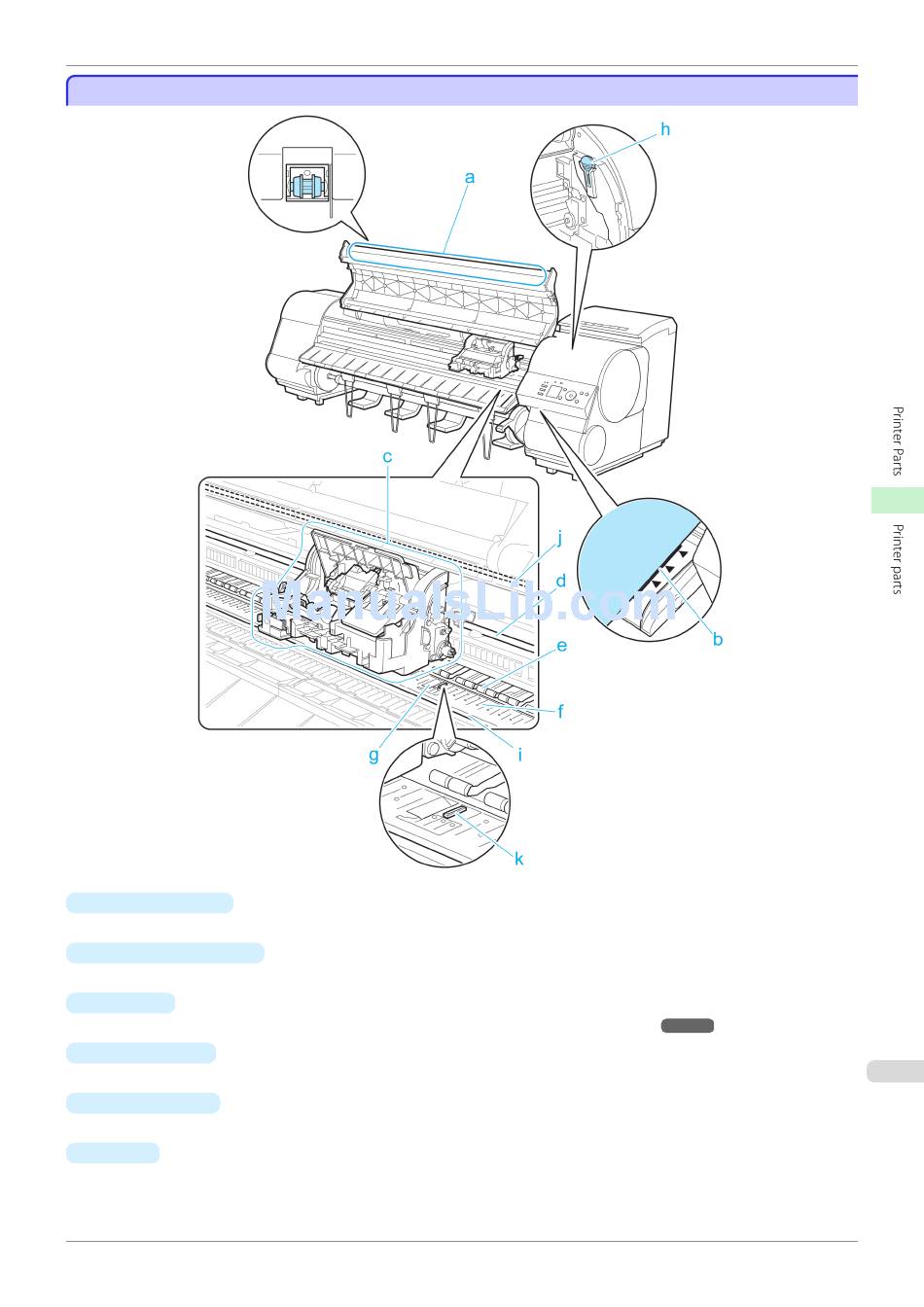

Top Cover (Inside)
Top Cover (Inside)
a
Top Cover Roller
Prevents paper from rising when ejected.
b
Paper Alignment Line
Align paper with this line when loading it.
c
Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.")
d
Carriage Shaft
The Carriage slides along this shaft.
e
Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
f
Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
User's Guide
Top Cover (Inside)
P.466
➔
465
