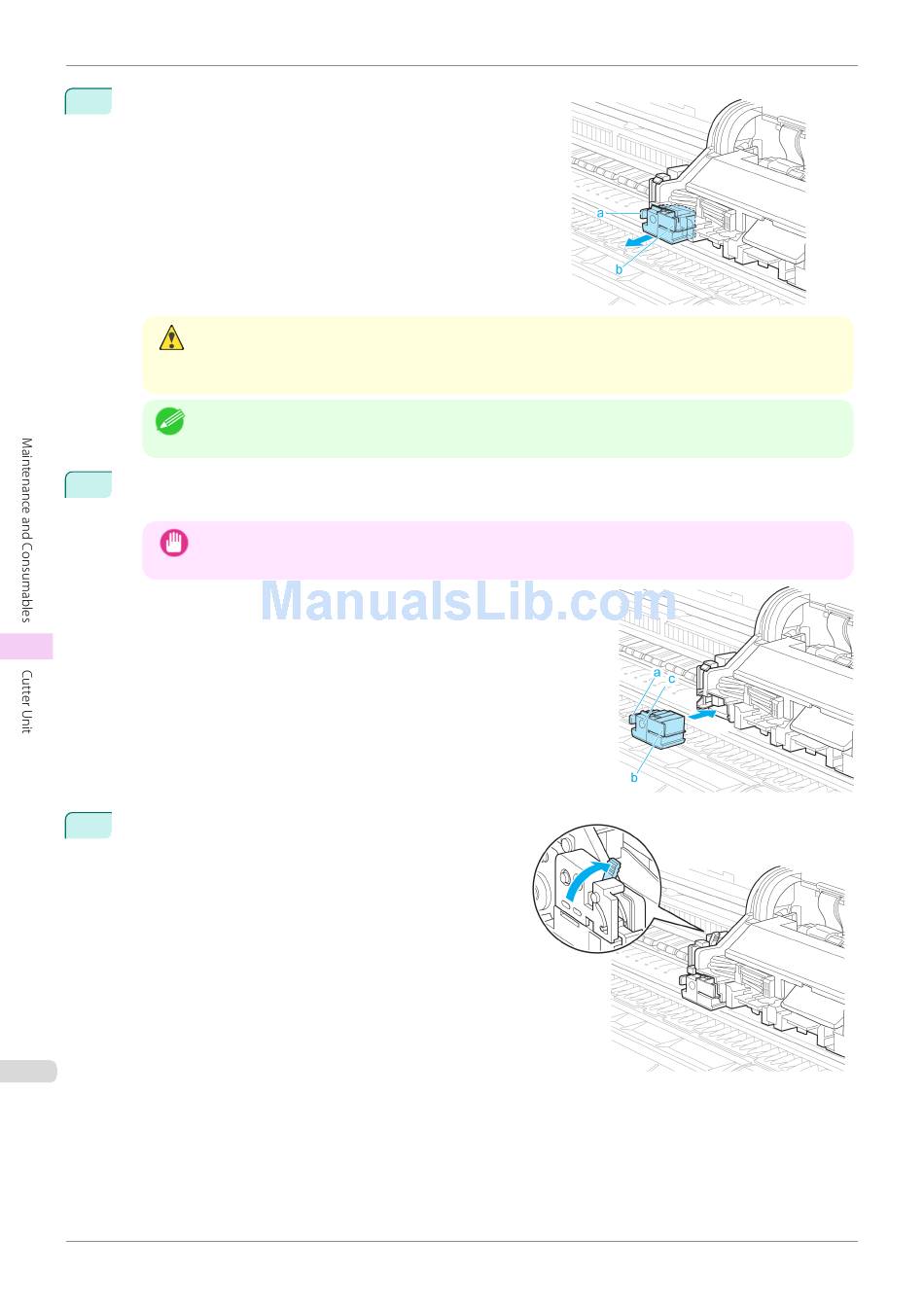

Replacing the Cutter Unit
4
Holding the Cutter Unit by the Lock Lever (a) and grip (b), re-
move it from the Carriage.
Caution
Note
5
Holding the new Cutter Unit by the Lock Lever (a) and grip (b), insert it on the Carriage until it clicks into
place (c).
Important
6
Lift the Cutter Unit Detachment Lever to lock it.
556
•
Never touch any part of the Cutter Unit except the Lock Lever (a) and grip (b). This may stain your hands
or cause injury. Additionally, this may damage the printer.
•
Do not disassemble the Cutter Unit. Touching the blade may cause injury.
•
Dispose of the used Cutter Unit in accordance with local regulations.
•
After installing the Cutter Unit, hold it only by the grip (b) and pull the Cutter Unit forward to make sure it
does not come off. It may damage the printer if the Cutter Unit comes off.
