iPF770

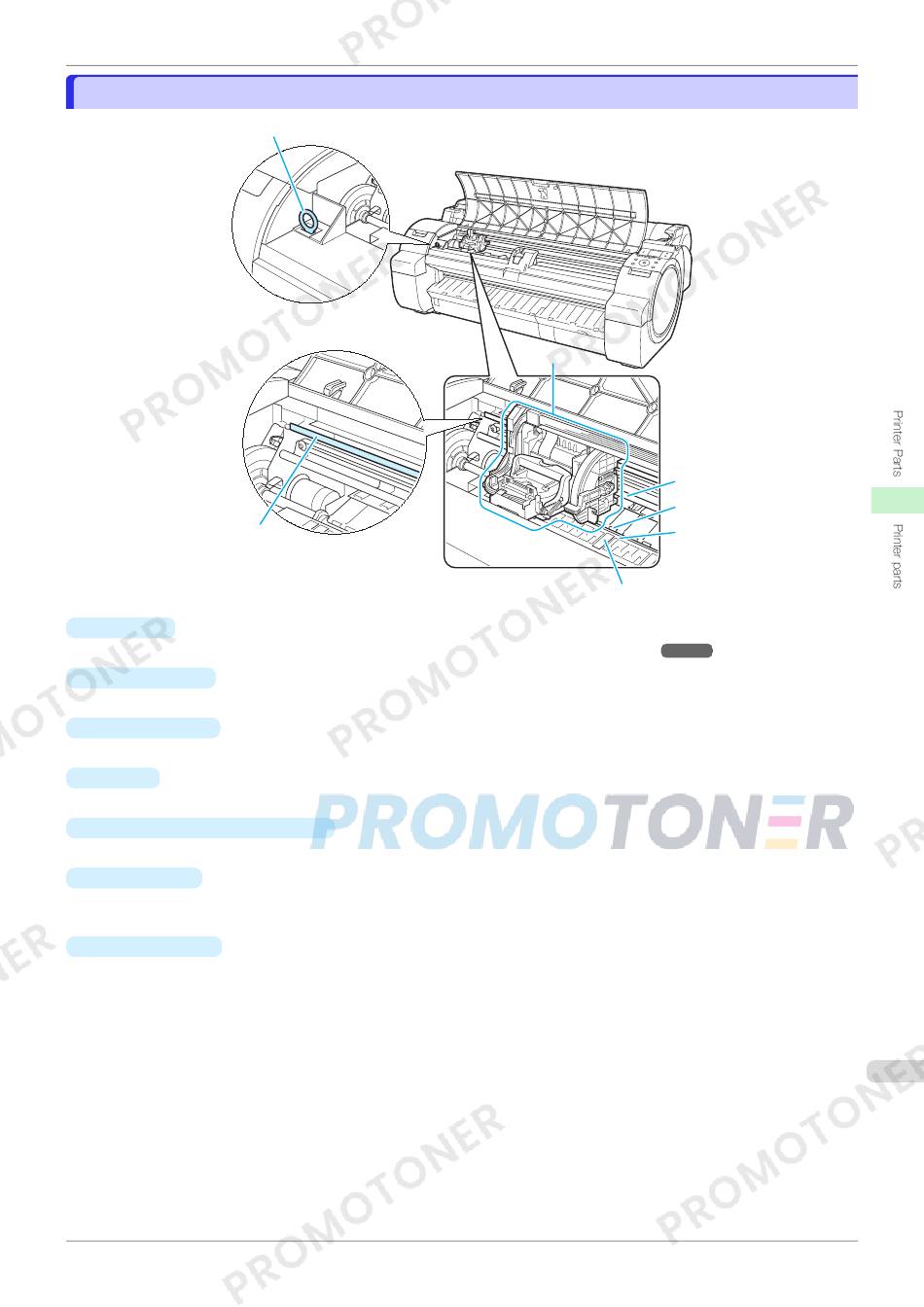

Top Cover (Inside)
Top Cover (Inside)
a
Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.")
b
Carriage Shaft
The Carriage slides along this shaft.
c
Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d
Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e
Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f
Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
g
Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
User's Guide
g
f
a
b
c
d
e
P.436
➔
Top Cover (Inside)
435
