This chapter describes the front panel operation of the modem, including the menus and
their explanations, and clocking information. For information about remote control
operation, refer to Appendix B.
3.1

Front Panel

The modem front panel (Figure 3-1) enables the user to control modem configuration
parameters and display the modem status.
The front panel features include:
•
•
•
Note:

Chapter 3. OPERATION

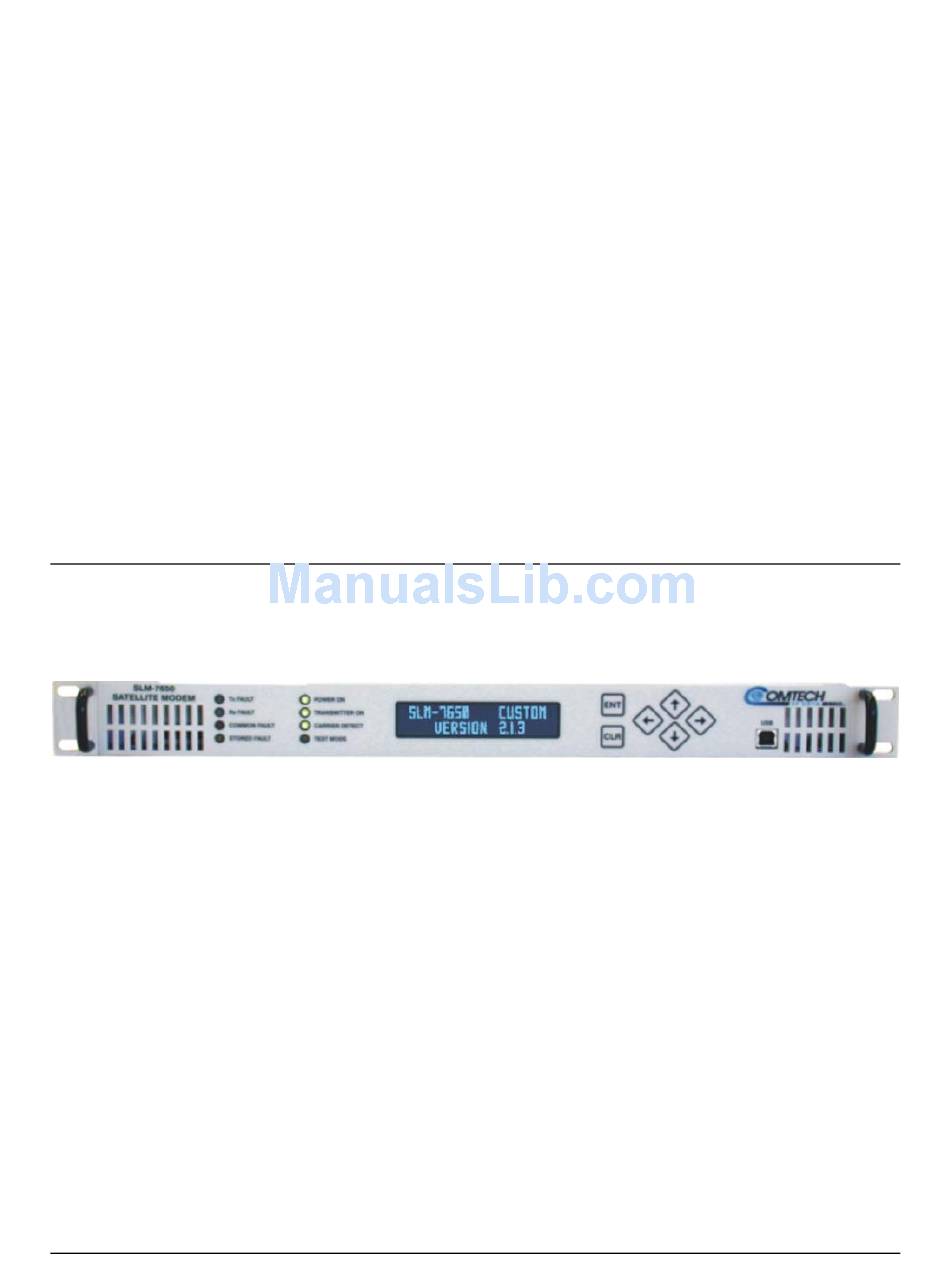

Figure 3-1. SLM-7650 Front Panel

24-character, 2-line LCD display
6-button keypad for local control
8 LEDs to provide overall status at a glance
All functions are accessible at the front panel by scrolling through a multilevel
menu using the front panel keypad and display.
3-1
