SLM-7650 Satellite Modem
Maintenance
5.3.1.5

Power Level

1. Continue from the previous step and connect the IF output to a Power Meter.
2. In the Configuration -Modulator menu, set the TX Power Level to -10 dBm
3. Verify that the Power Meter indicates an output power between -9.5 and -10.5 dBm.
4. Change the TX Power Level to -25 dBm.
5. Verify that the Power Meter indicates an output power between -24.5 and -25.5 dBm.
6. Change the TX Power Level to +5 dBm.
7. Verify that the Power Meter indicates an output power between +4.5 and +5.5 dBm.

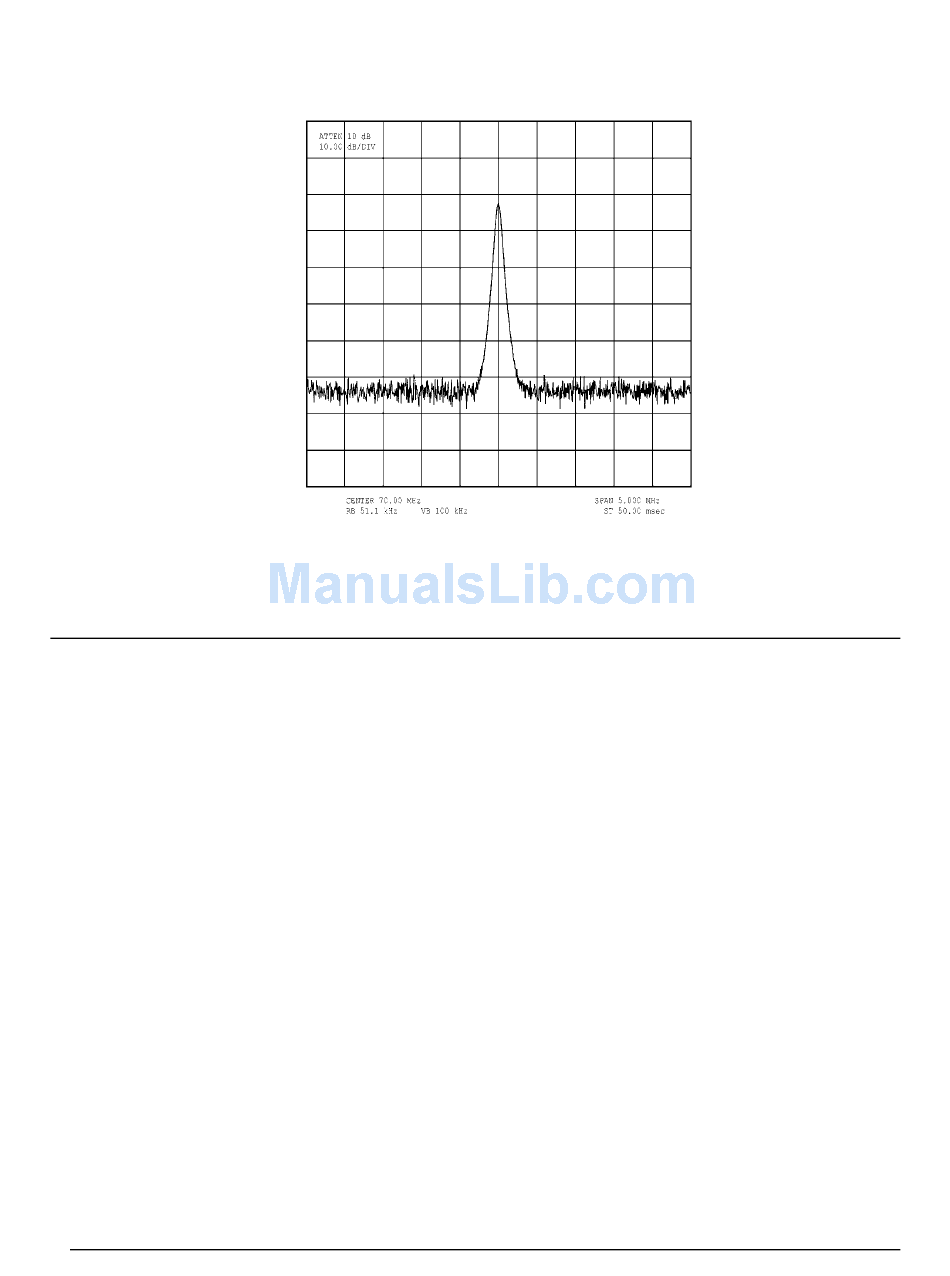

Figure 5-8. CENTER Test Mode

5–17
Revision 4
MN/SLM7650.IOM
