SLM-7650 Satellite Modem
Theory of Operation
4.4.3.3.2.4 Timing Configuration #4: Slave Modem-Loop Timed
Master clock is at the distant end of the link.
TX Clock Source = TX Terrestrial
Selecting RX satellite turns Off the buffer.
The user desires to clock the SD to the modem with the satellite clock.
User configured Loop Timing. The TX and RX data rates must be equal. The user must
tie RT and ST at their equipment (Figure 4-5).
1, 5, 10, or
20 MHz
Clock
Master
User
Internal
Clock
Reference
detect
To TX IF Output
From decoder
Modem

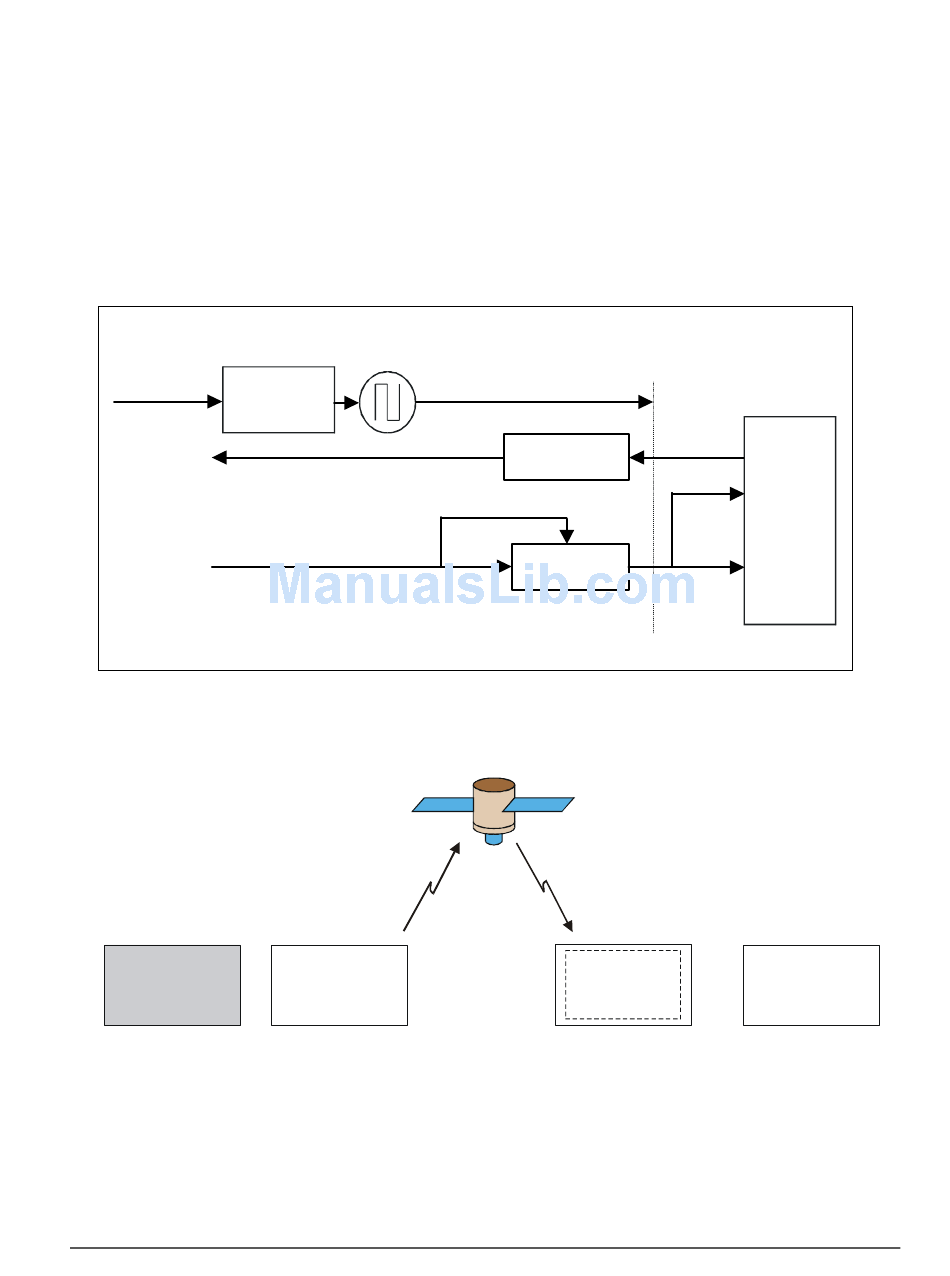

Figure 4-5. Slave Modem-Loop Timed
TRANSMIT
Receive
Buffer
Modem
4–28
Revision 4
MN/SLM7650.IOM
TT
User uses
ST for TT
ST
and SD
RT
RT clocks
RD in.
User
