Modulator Tests

The tests listed will give reasonable assurance that the modulator section is performing to
specification. The test equipment used in these test is listed in Table 5-7.
5.3.1.1

Spectral Shape of the IF Output

1. In the Utility - Modem Type menu, configure the modem for modem type 7650-00.
2. In the Configuration - Modulator menu turn the modulator TX IF Output ON.
3. Connect the modulator output to a Spectrum Analyzer.
4. Set the Spectrum Analyzer to a center frequency of 70MHz, frequency span of 100
KHz, and resolution bandwidth to 3 kHz. Set the reference level to see the
modulated spectrum on the spectrum analyzer screen.
5. Verify that the output spectral density mask meets MIL-STD-188-165 Section
5.1.6.4.1 and its associated Figure 4
5.3.1.2

Carrier Null

1. Continue from the previous step and in the Configuration -Modulator menu, set the
Carrier Mode to DUAL (Figure 5-6).
2. On the Spectrum Analyzer, verify that the center carrier null is greater than 35 dB.
3. Change the Carrier Mode to OFFSET(Figure 5-7).
4. On the Spectrum Analyzer, verify that the offset carrier null is greater than 30 dB.
5. Set the Carrier Mode to Normal-Modulated.
6. Turn the TX-IF Output ON.

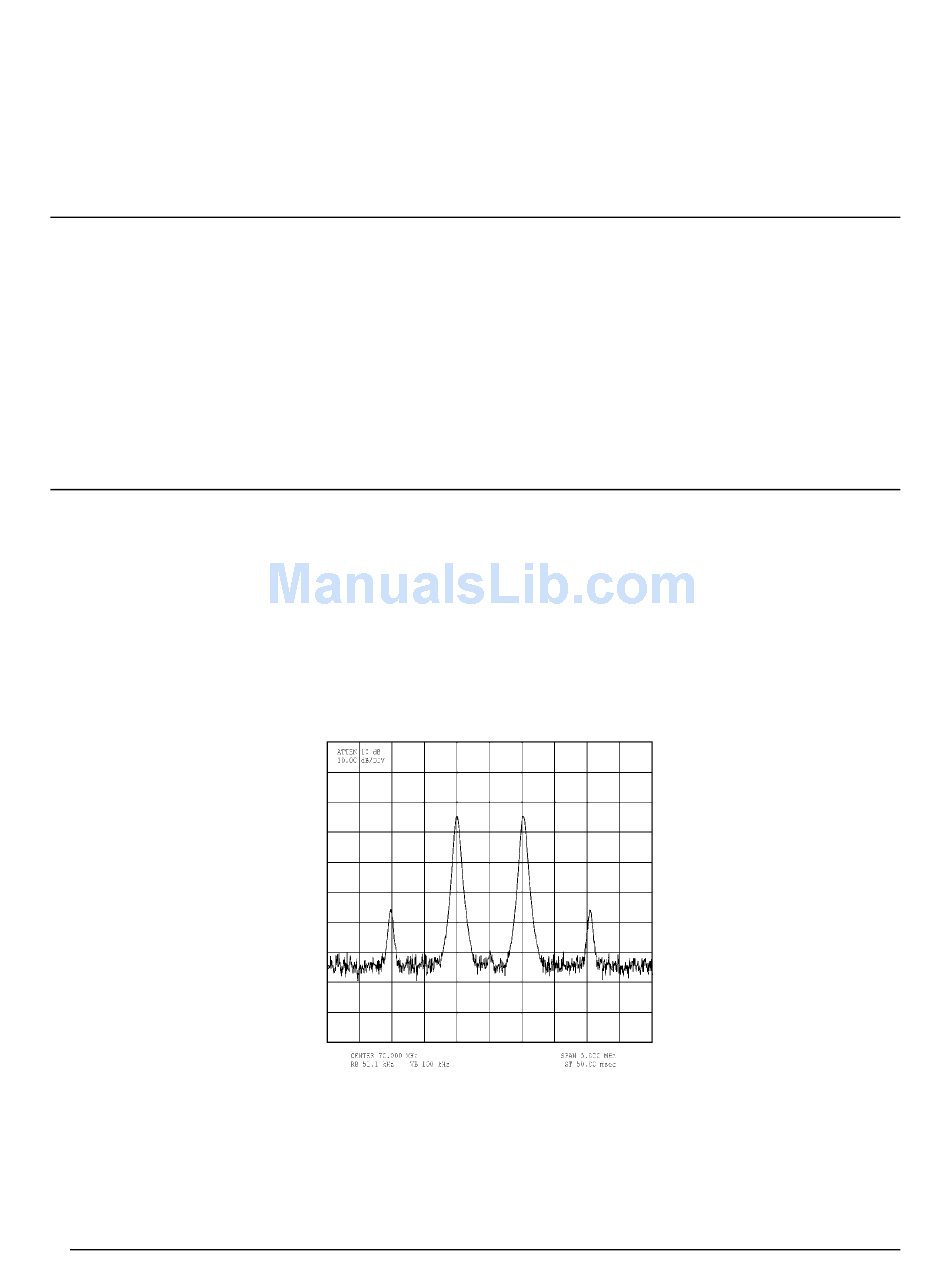

Figure 5-6. DUAL Test Mode
